Free Studio One Pro Software with Purchase

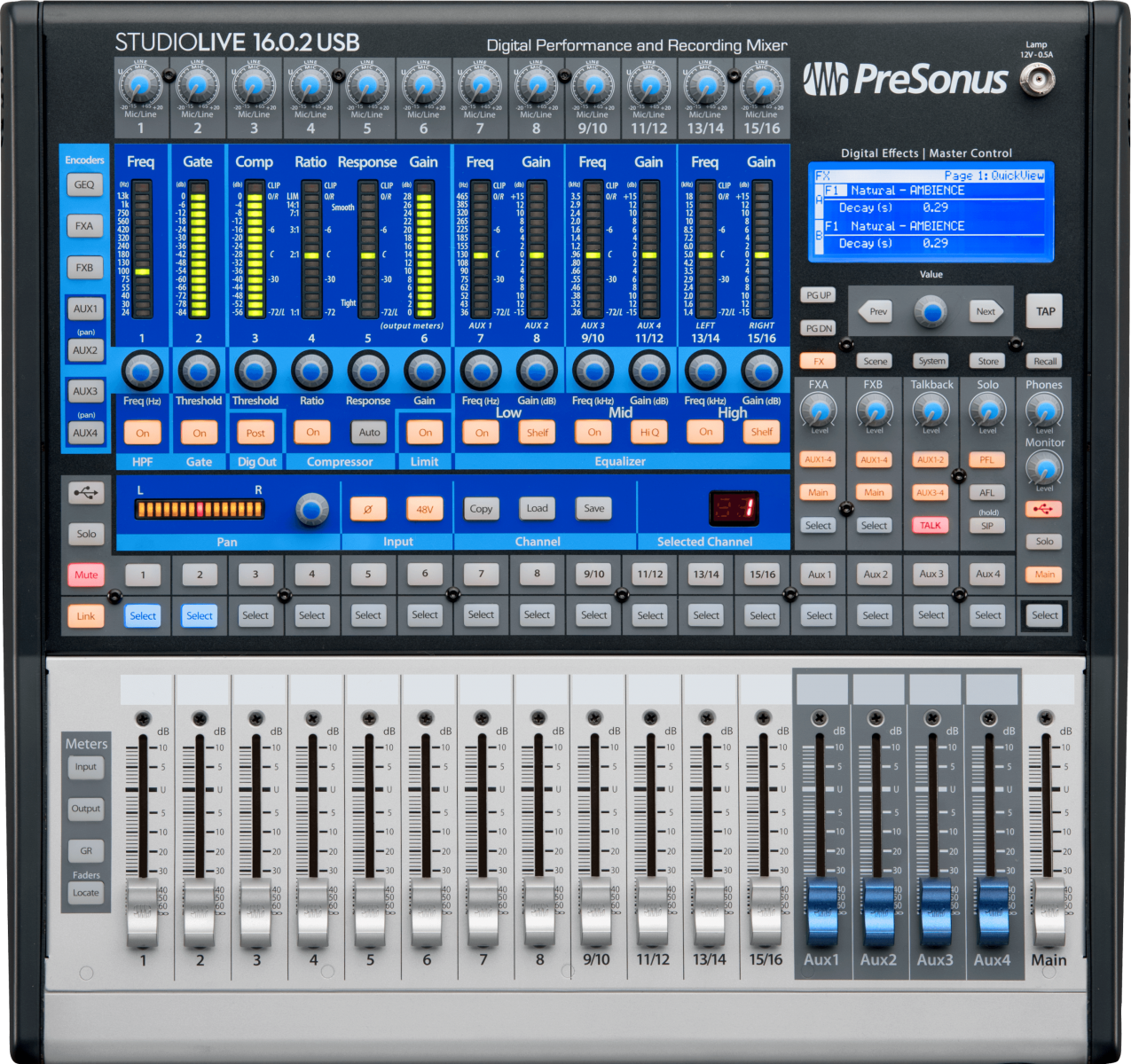

Our classic StudioLive 16.0.2 digital console mixer with USB 2.0 connectivity for small churches, schools, bands, clubs, and studios.
8 mono channel mic / line inputs, each with:
- XMAX Class A High Level Reserve Mic Preamplifier

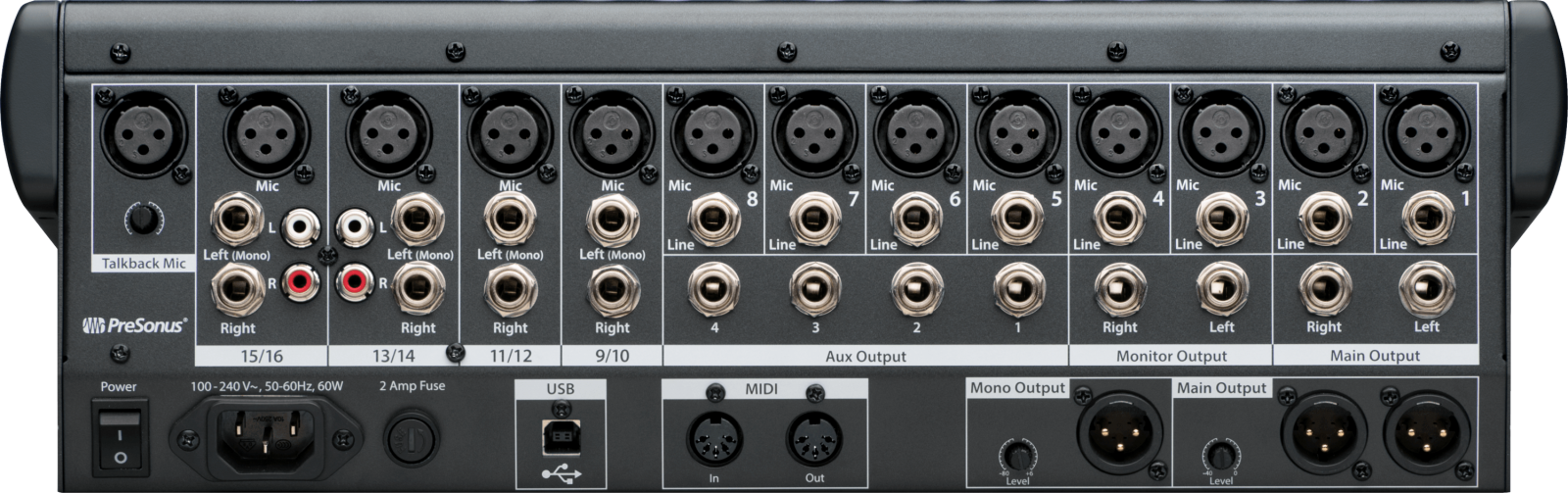

- Mixed input, microphone on XLR and line on balanced 6.35 mm jack
- 60mm precision fader
4 stereo channel line inputs, with:
- XMAX Class A High Level Reserve Mic Preamplifier (Channels 9, 11, 13 and 15)
- Mic inputs on XLR (channels 9, 11, 13 and 15)
- 1/4 '' balanced line inputs (channels 9-16)
- Unbalanced line inputs on RCA (channels 13-16)
- 60mm precision fader (4 stereo)
- 4 auxiliary buses (pre / post-fader start)
2 internal effects buses
2 stereo 32-bit digital effects processors with customizable reverb and delay presets
Fat Channel signal processing on all channels and buses, with:
- 3-band semi-parametric equalizer (individual on / off switching of each band)
- Complete compressor
- Standard down expander
- Limiter
- Phase inverter (12 microphone preamplifiers only)
- Panoramic with dedicated display of 15 LEDs
- Stereo linkage for input channels and auxiliary buses
- High pass filter
A 31-band stereo graphic equalizer (only on main outputs)
18-in / 16-out USB recording interface (24 bit / 44.1 kHz and 48 kHz)
- Compatible with most audio software by ASIO, Windows Audio, Core Audio
Storing and recalling a scene
Settings can be copied between channels and between buses, and saved as personal presets.
The software package includes:
- Studio One ® Artist PreSonus ® digital audio workstation for Mac ® and Windows ®
- PreSonus Capture ™ multitrack recording software for Mac and Windows
- PreSonus UC Surface, mixer control software for Mac, Windows, Android ™ and iPad ®
- PreSonus QMix ® -UC, free downloadable software for iPhone ® / iPod touch ® and Android ™, enables remote and wireless control of aux mixes
Lock mode protects your settings from intruders and accidents
The MIDI control mode allows you to manage:
- Recalling scenes and presets
- Overall volume, FXA and FXB effects output levels
- Assign / unassign FXA and FXB effects to the generals
