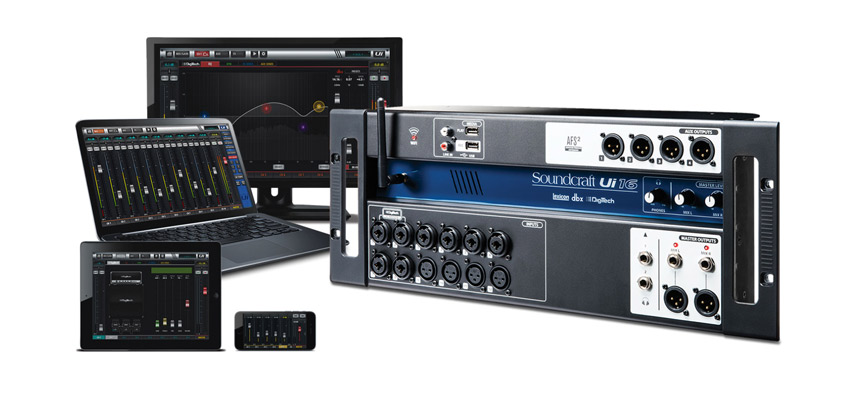

Ui16 packs a complete digital mixing system into a compact, road-rugged stagebox format, with built-in Wi-fi and the ability to be controlled by any connected device via a standard web browser - no Apps, no OS limitations, no constraints on how or where you mix.
The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.
Both mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.
The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well. The Ui16 also has an HDMI display connection output.
· Tablet/PC/Smartphone Controlled Digital Mixer
· Integrated Wi-Fi
· Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
· Use up to 10 control devices (tablets, phones, PCs) simultaneously
· Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
· Fully recallable and remote-controlled mic preamps
· 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
· 31-band Graphic EQ, Noise Gate and Compressor on all outputs
· Real-Time Frequency Analyser (RTA) on inputs and outputs
· 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
· Subgroups, Mute Groups, View Groups, and more mixer controls
· Show/Snapshot recall with channel safes and security lockout
· 2-channel USB audio playback and recording
· Password-protected Access limitation system
· Sync ID (multiple browser windows staying in channel Sync)
|
Specifications |
|
Frequency Response |
Mic/Line Input to any output, 20Hz - 20kHz |
+/- 0.25 dB |
|
THD |
-20dBFS @ 1kHz |
<0.006% |
|
Noise |
Residual Noise -96dBu Mic Input E.I.N.22Hz-22kHz unweighted |
-109dB EIN |
|
Mix Noise masters at unity |
< -90dBu |
|
|
1 input to Mix at Unity gain |
< -86dBu |
|
|
Crosstalk @ 1kHz |
Channel ON attenuation |
<120dB |
|
Channel Fader Attenuation |
<120dB |
|
|
Mic-Mic -103dB@ 1kHz |
-93dB@ 10kHz |
|
|
Line-Line -103dB@ 1kHz |
-93dB@ 10kHz |
|
|
Input Gain |
Mic/Line Gain |
-40dB to + |
|
Gate |
Threshold |
-inf to +6dB |
|
Auto Attack |
|
|
|
Auto Release |
|
|
|
Compressor |
Threshold |
-90dB +6dB |
|
Ratio |
1:1 - 50:1 |
|
|
Attack |
1ms - 400ms |
|
|
Release |
10ms - 2000ms |
|
|
Makeup Gain |
-24dB - +48dB |
|
|
EQ Channel |
4 band parametriq EQ |
Each Band Freq 20Hz to 22kHz |
|
Q |
.05 – 15 |
|
|
Gain |
-20dB to +20dB |
|
|
HPF |
20Hz to 1kHz |
|
|
De-esser |
Threshold |
-90dB to 6dB |
|
Ratio |
infinity to 1:1 |
|
|
Frequency |
2kHz to 15kHz |
|
|
EQ Outputs |
|
32 band GEQ, 20Hz - 20KHz +-15dB |
|
Compressor outputs |
Threshold |
-90dB +6dB |
|
Ratio |
1:1 - 50:1 |
|
|
Attack |
1ms - 400ms |
|
|
Release |
10ms - 2000ms |
|
|
Makeup Gain |
-24dB - +48dB |
|
|
dbx AFS on all outputs |
|
12 parametric EQ’s (6 fixed, 6 floating) |
|
Latency |
|
Mic in - ADC -DSP -DAC - Line output 1.8ms |
|
Input and Output Levels |
Mic Input |
+20dBu max |
|
Line input |
+20dBu max |
|
|
Mix output |
+23dBu max |
|
|
Headphone outputs |
500mW 1 output used (@120Ω), 380mw both outputs used |
|
|
Input and Output Impedances |
Mic input |
10kΩ |
|
Line Input |
10kΩ |
|
|
Hi-Z Input |
250kΩ |
|
|
Outputs all |
at 100Ω |
|
|
USB |
Max Current |
500mA |
|
Max Current available to all ports |
900mA |
|
|
Power |
Consumption (typical) |
< 25W |
|
AC input voltage range |
88-265VAC auto sensing |
|
|
AC frequency |
47-63Hz |
|
|
Operating Conditions |
Temperature range |
5°C - 45°C |
|
Humidity |
0%-90% |
|
|
Storage Temperature |
-20°C to 60°C |
|
|
Net Weight |
|
3.61kg (7.9lbs) |
|
Unit Dimensions (W × H × L) |
|
177mm (7.0") x 110mm (4.3") x 483mm (19.0") |
