Mixer Digital Allen Heath Qu-7

Mã sp : Mixer Digital Allen Heath Qu-7

Hotline: 0908677003

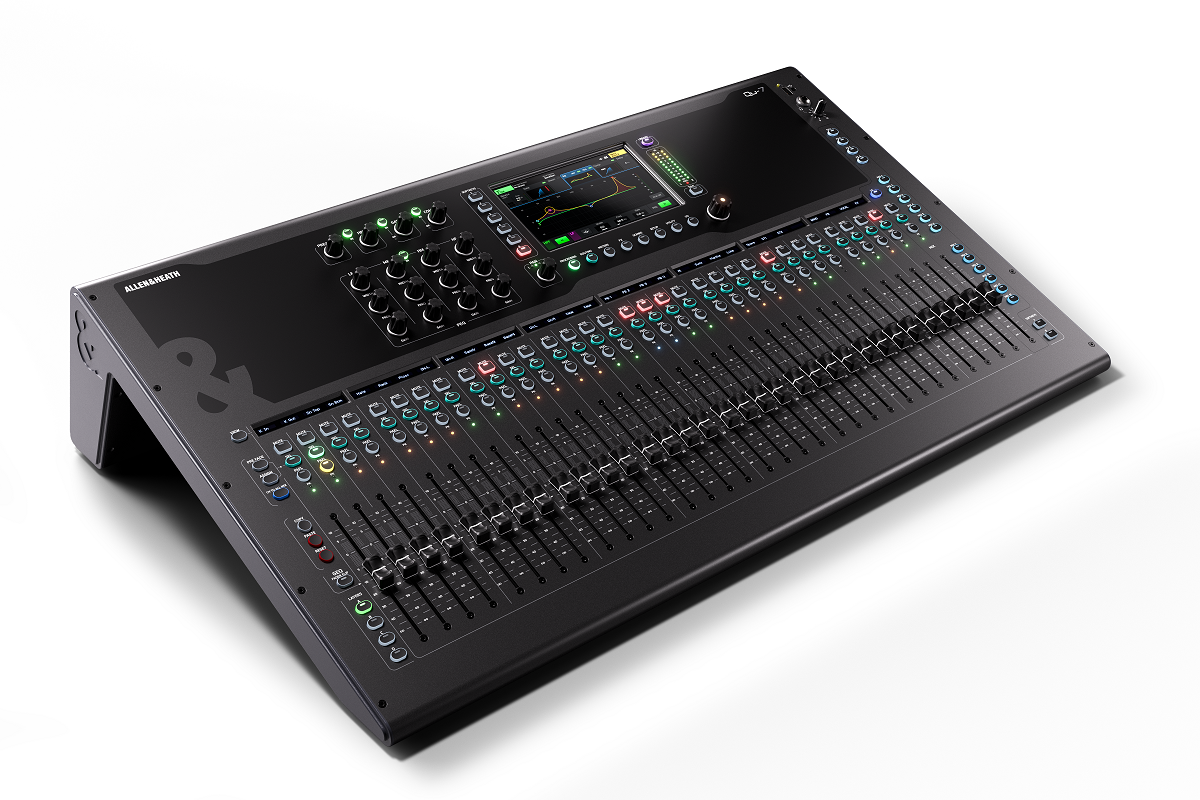

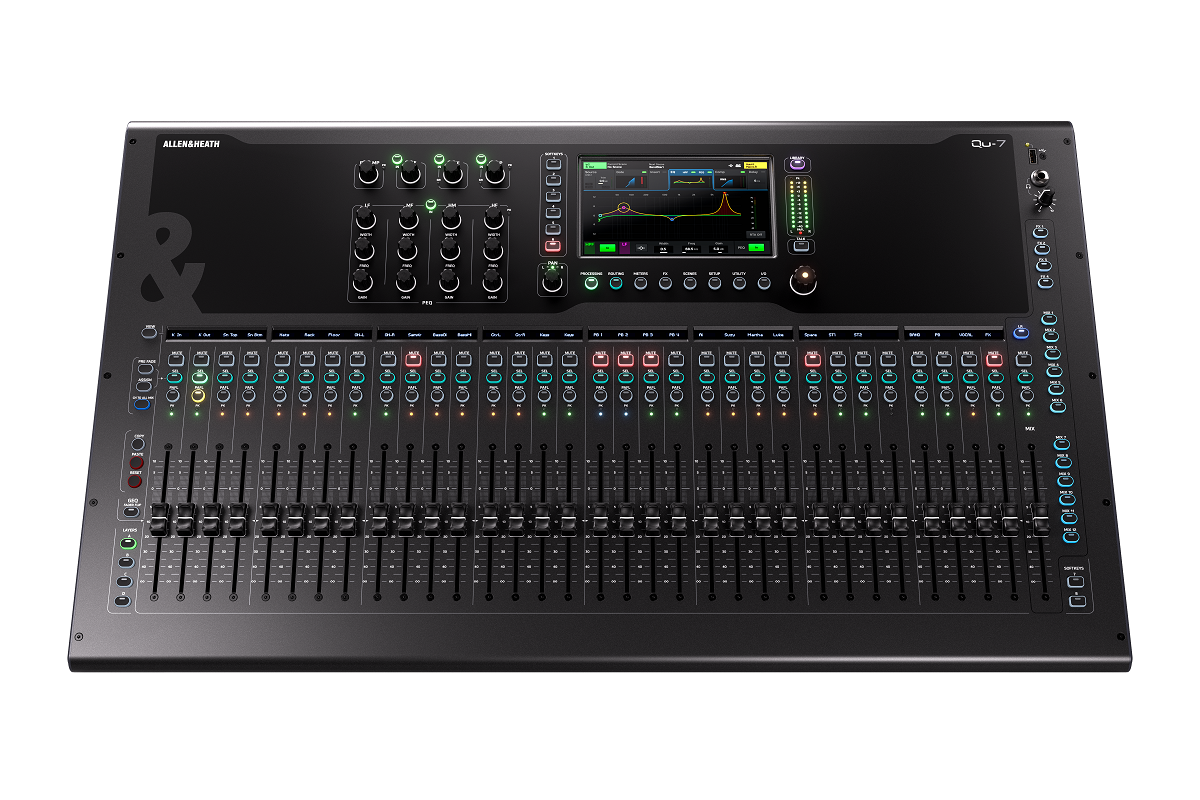

Mixer Digital Allen Heath Qu-7

Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.



Qu-7

  • Compact 38in/24out 96kHz Mixer
  • 33 100mm Motorised Faders
  • 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
  • 20 XLR Output Sockets



  • Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32's svelte form factor with advanced XCVI processing
  • 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
  • Versatile Everything I/O connectivity ensures maximum flexibility and expandability
  • Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
  • Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
  • 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
  • 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
  • 33 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
  • USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
  • Built to handle the demands of modern live sound production

https://www.allen-heath.com/hardware/qu/qu-7-qu-7d/resources/



Qu-7 & Qu-7D Features

Processing & FX

  • 96kHz XCVI Core
  • 6 Multi-FX Engines with dedicated Stereo Returns
  • DEEP Processing Ready

Mix Architecture

  • 38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)
  • 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
  • 4 Mono/Linkable Matrix
  • Stereo Main LR Output

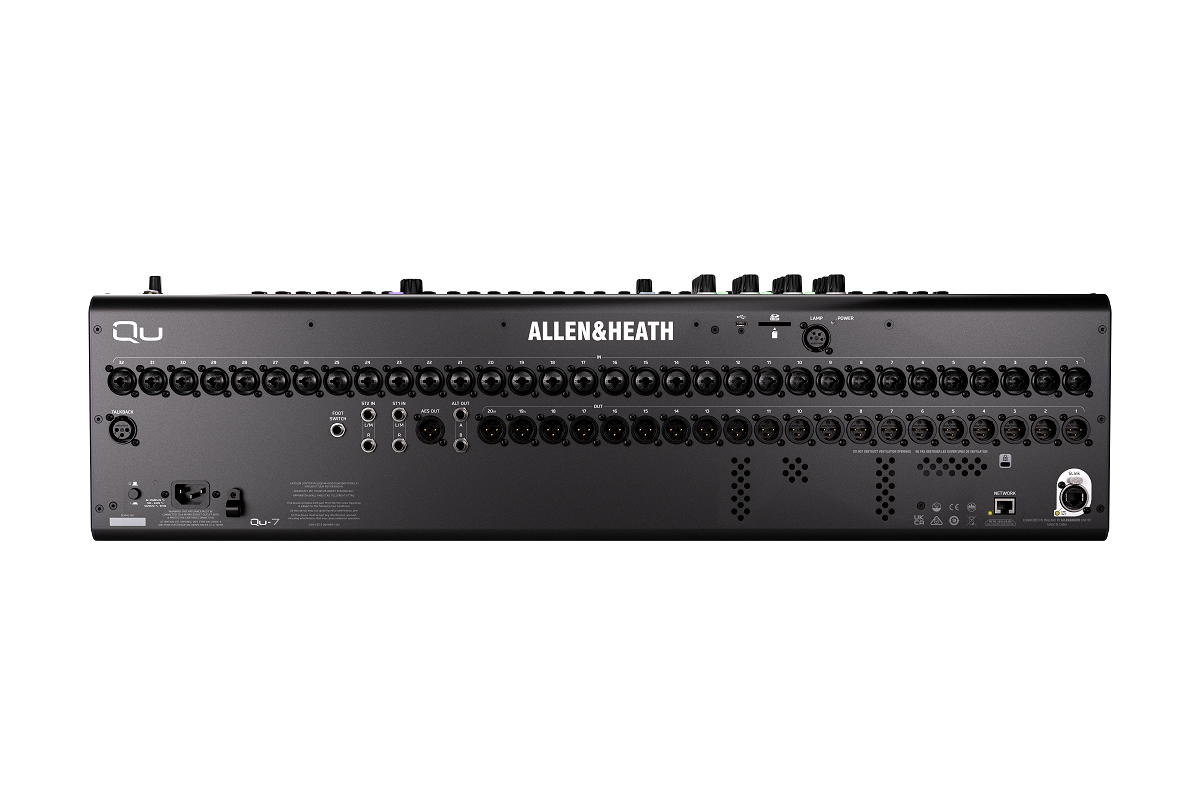

I/O

  • 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
  • 2 Stereo Line Input Sockets (each 2x TRS)
  • 20 XLR Output Sockets
  • 1 XLR Talkback Socket
  • 2 TRS Output Sockets
  • 1 AES3 Stereo Digital Output Socket
  • 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
  • 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-7D only)
  • Stereo Headphone Output

Control

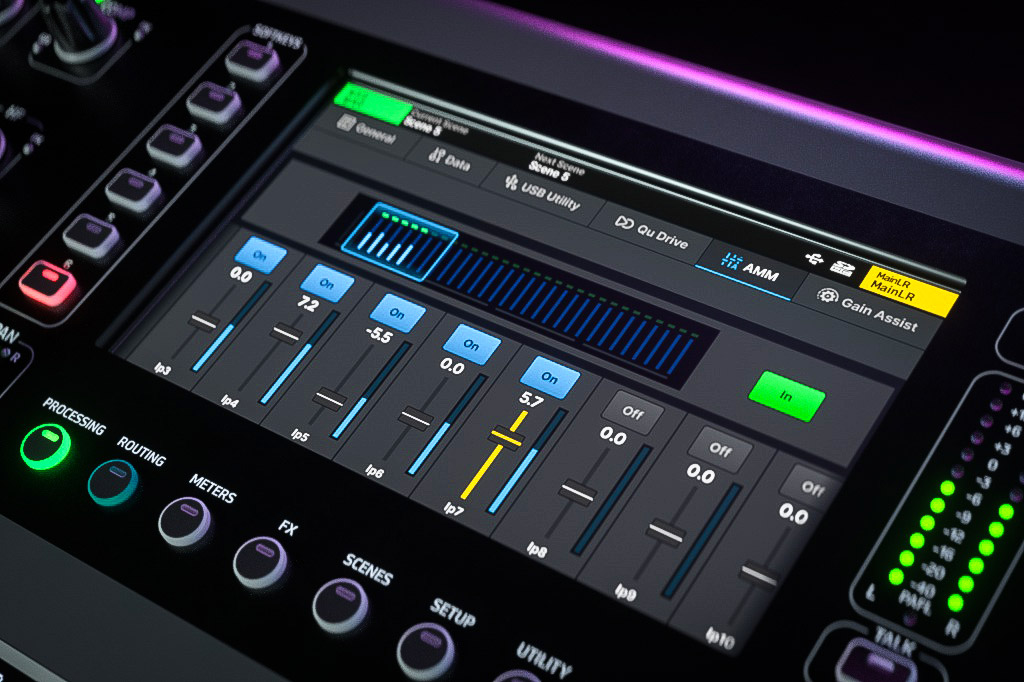

  • 7” Capacitive Touchscreen
  • 33 100mm Motorised Faders
  • 4 Channel Strip Layers
  • Remote control via free apps – Windows/MacOS/iOS/Android
  • 8 SoftKeys
  • Configurable single/dual Footswitch Connection

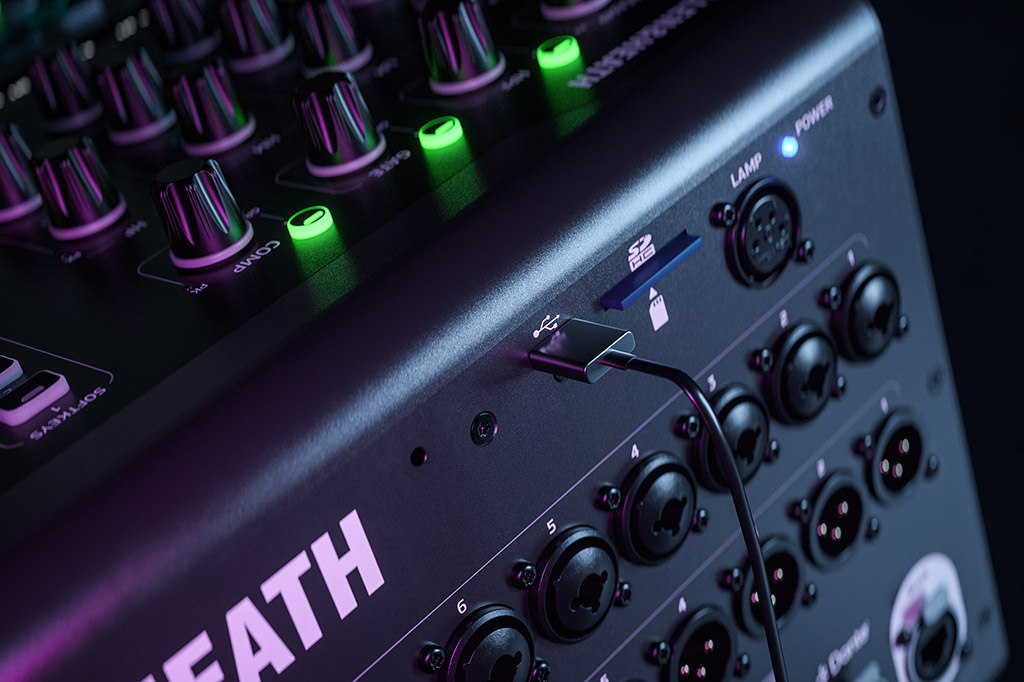

Recording & Playback

  • USB-A For stereo audio record/playback and data transfer
  • USB-C Audio interface for multichannel record/playback (32×32)
  • SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)

Misc

  • 12V Lamp Socket
  • Configurable Chromatic Channel Meter LED’s
