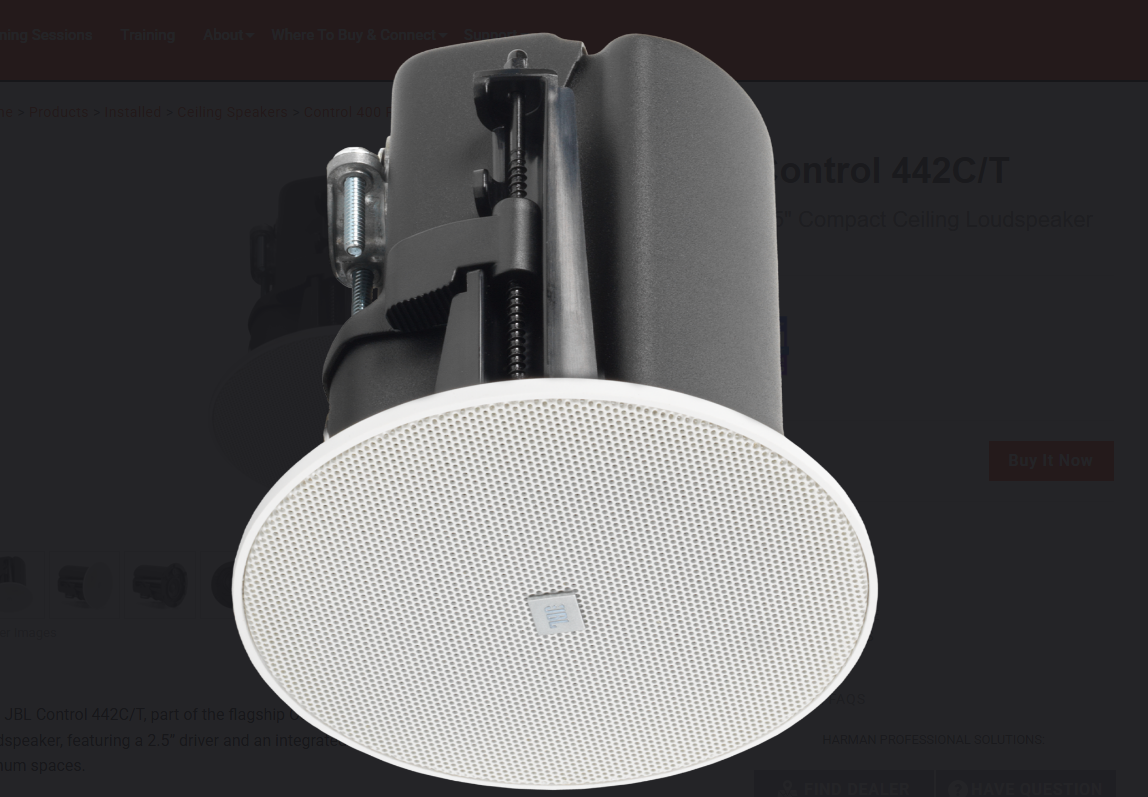

The JBL Control 442C/T, part of the flagship Control 400 Premium Coverage Series, is a compact ceiling loudspeaker, featuring a 2.5” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

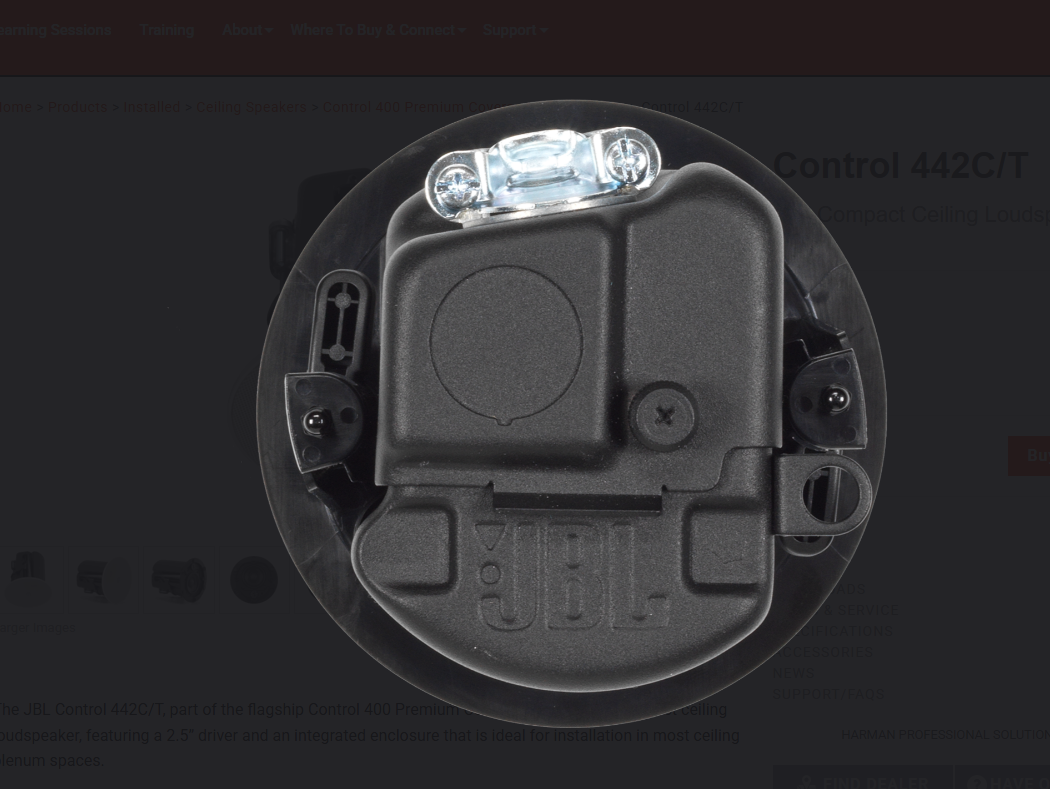

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 442C/T supports both 70V/100V and low impedance applications.
| Frequency Range (-10 dB) | 130Hz - 20kHz |
| Power Capacity | 22.5 W (90 W Peak), Cont. Pink Noise (2 hrs.) 15 W (60 W Peak) Cont. Pink Noise Power (100 hrs.) |
| Sensitivity (1m/1W) | 86dB |
| Coverage Angle | 160° conical |
| Maximum SPL (1m) | 99.5 dB Cont. pink noise (105.5 dB peak) |
| Nominal Impedance | 16Ω |

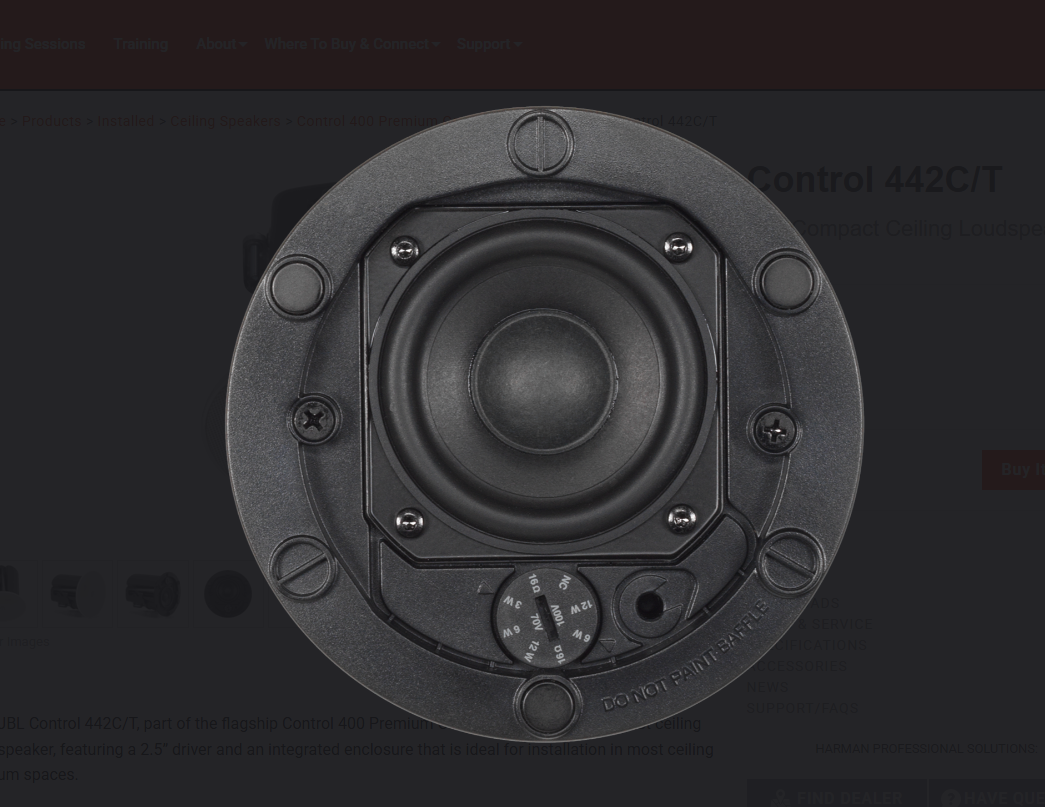

| Transformer Taps | 70 V: 12 W, 6 W & 3 W 100 V: 12 W, 6 W |
| Drivers | 60 mm (2.5 in) Full Range driver with paper cone, Rubber surround, CCAW coil |
| Ceiling Cutout Size | 104 mm (4.1 in) |
| Dimensions | 138 mm (5.4 in) H x 131 mm (5.2 in) dia. 129 mm (5.1 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
| Environmental | IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
| Optional Accessories | JBL-MTC-442BG black (RAL9004) round grille JBL-MTC-442SG white (RAL9003) square grille JBL-MTC-442NC new construction bracket JBL-MTC-442MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 1.1 kg (2.43 lbs) |
| Shipping Weight (pair) | 3.22 kg (7.1 lbs) |
| SKU Numbers | JBL-C442C/T |
