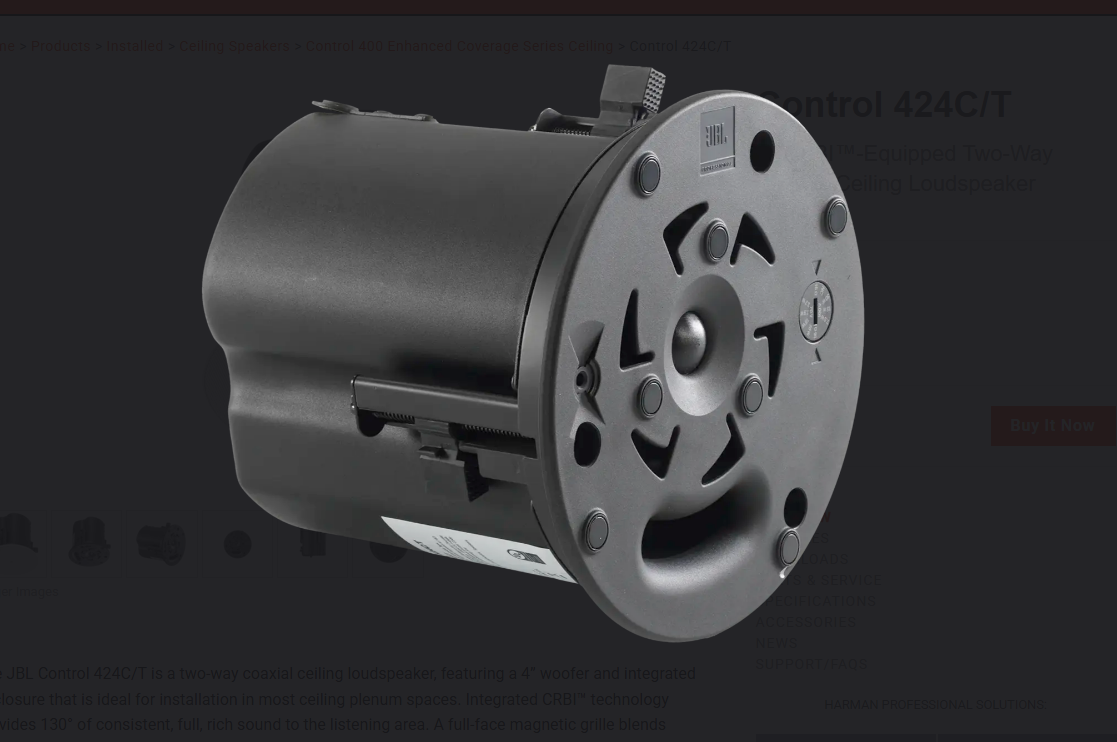

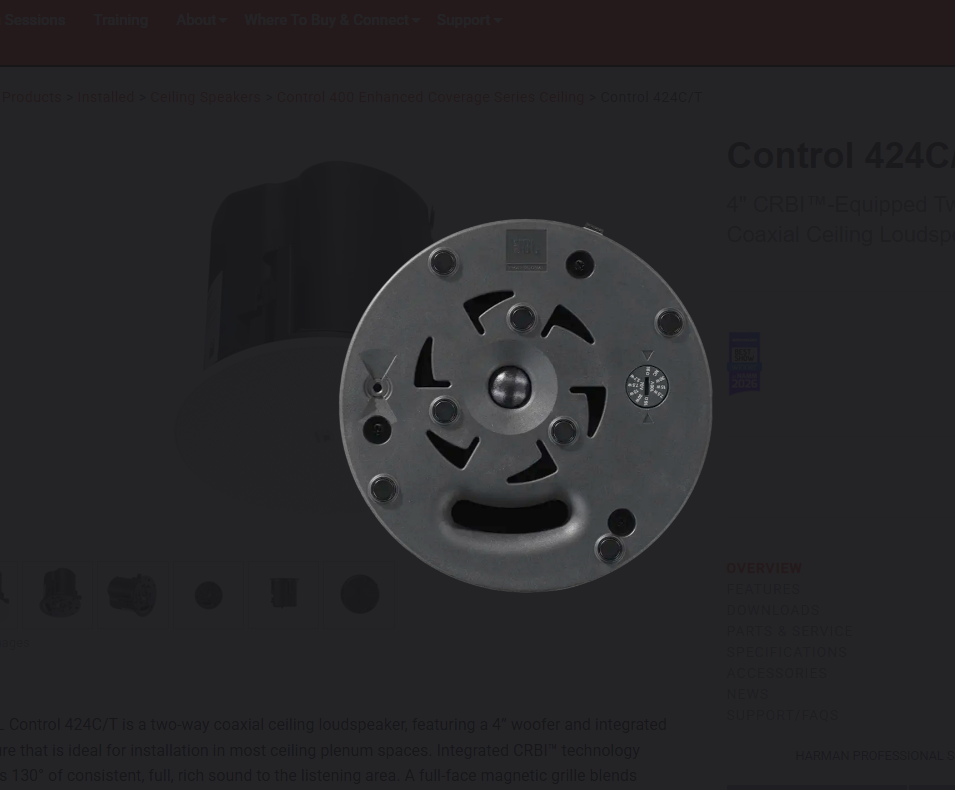

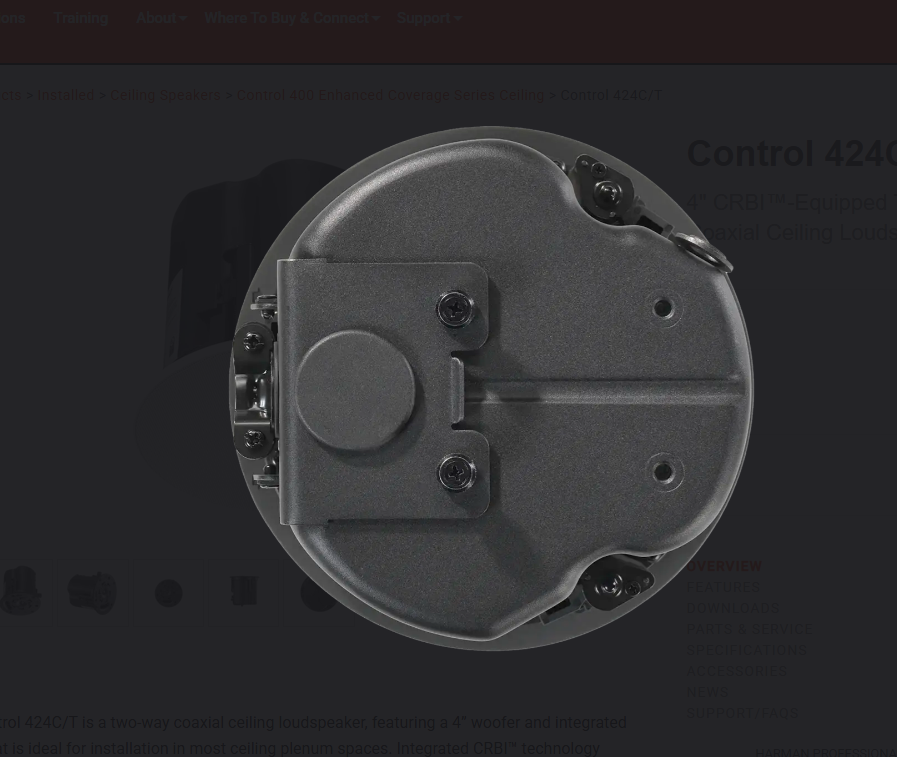

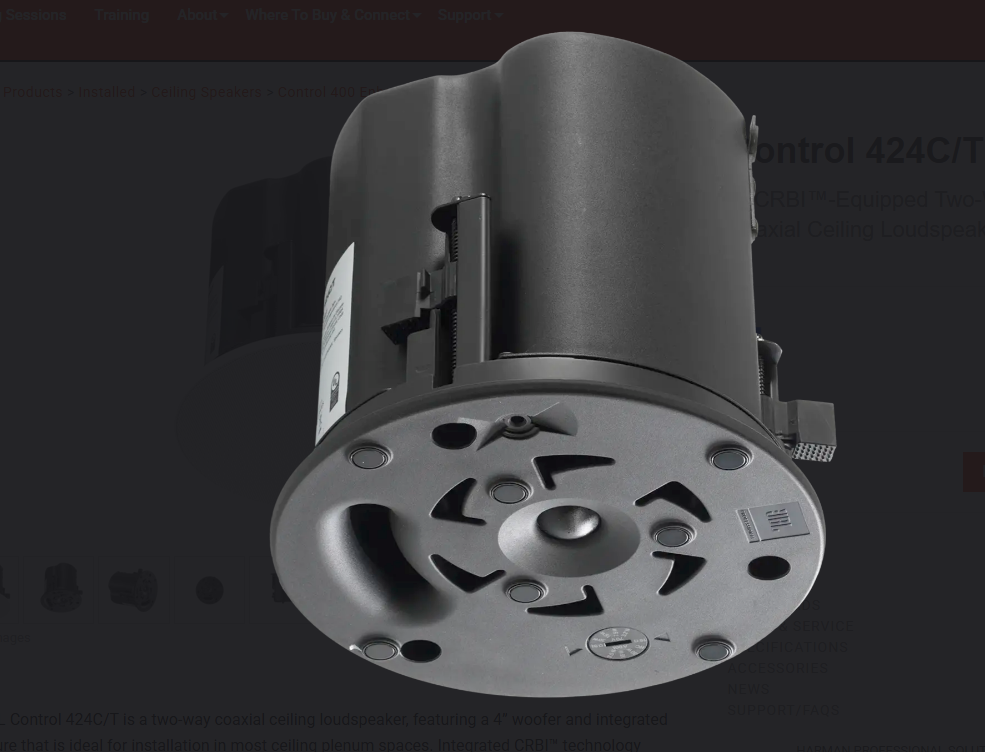

The JBL Control 424C/T is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 130° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 424C/T includes a transformer to support both 70V/100V and low impedance applications.
| Frequency Range (-10 dB) | 75Hz - 18kHz |
| Power Capacity | 60W (240 W Peak), Cont. Pink Noise (2 hrs.) 40 W (160 W Peak) Cont. Pink Noise Power (100 hrs.) |
| Sensitivity (1m/1W) | 85dB |
| Coverage Angle | 130° conical |
| Maximum SPL (1m) | 103 dB continuous pink noise (109 dB peak) |
| Nominal Impedance | 16Ω |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W & 3.7 W 100 V: 30 W, 15 W, 7.5 W |
| Drivers | LF: 100 mm (4 in) with treated paper cone and high-performance magnet HF: 19 mm (0.75 in) textile soft-dome with Neodymium magnet assembly |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions | 182 mm (7.2 in) H x 196 mm (7.7 in) dia. 173 mm (6.8 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed. |
| Environmental | IP33 rating per EN/IEC 60529. Operating temperature 0°C to 45°C |
| Optional Accessories | JBL-MTC-424BG black (RAL9004) round grille JBL-MTC-424SG white (RAL9003) square grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 2.8 kg (6.2 lbs) |
| Shipping Weight (pair) | 10.57 kg (23.31 lbs) |
| SKU Numbers | JBL-C424C/T |
