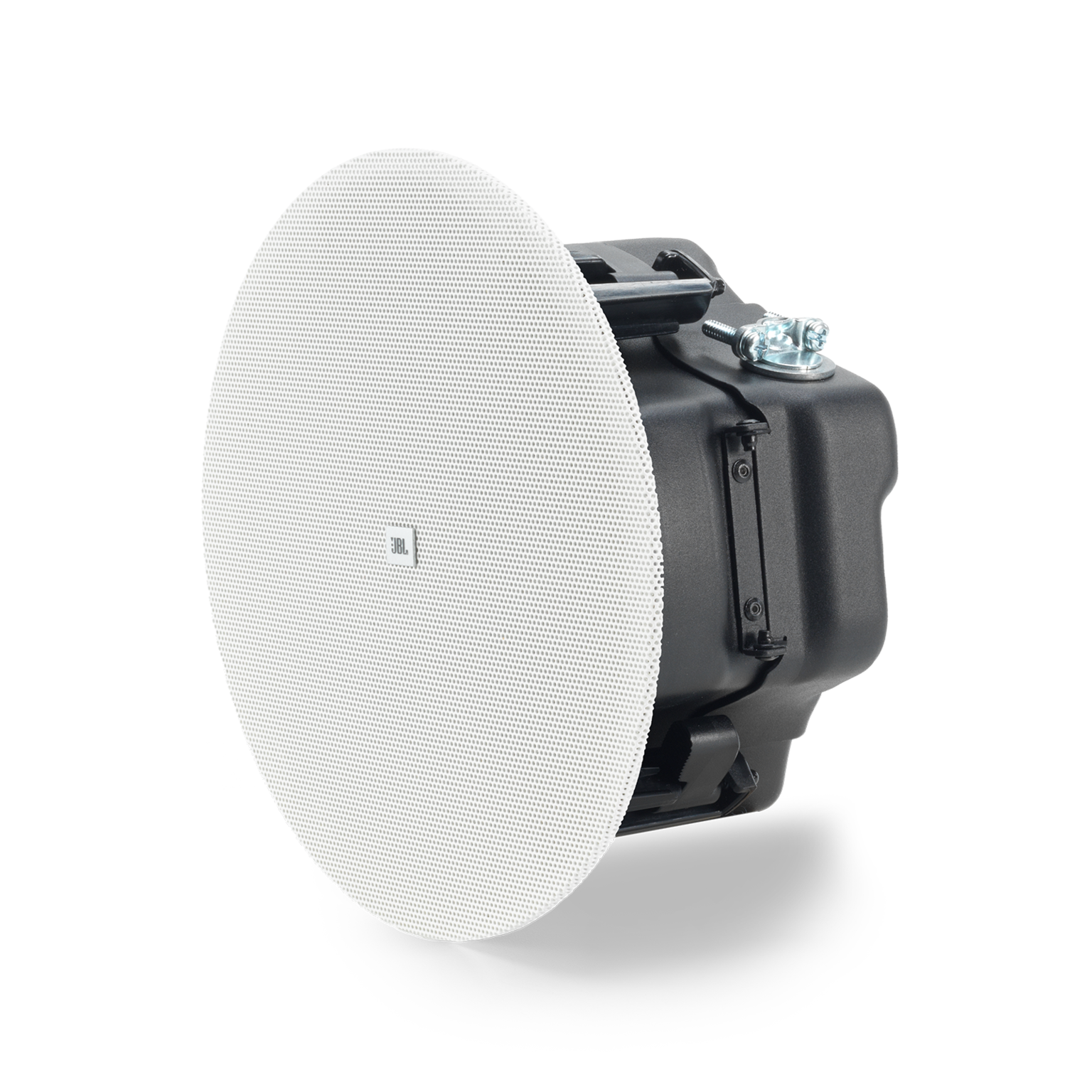

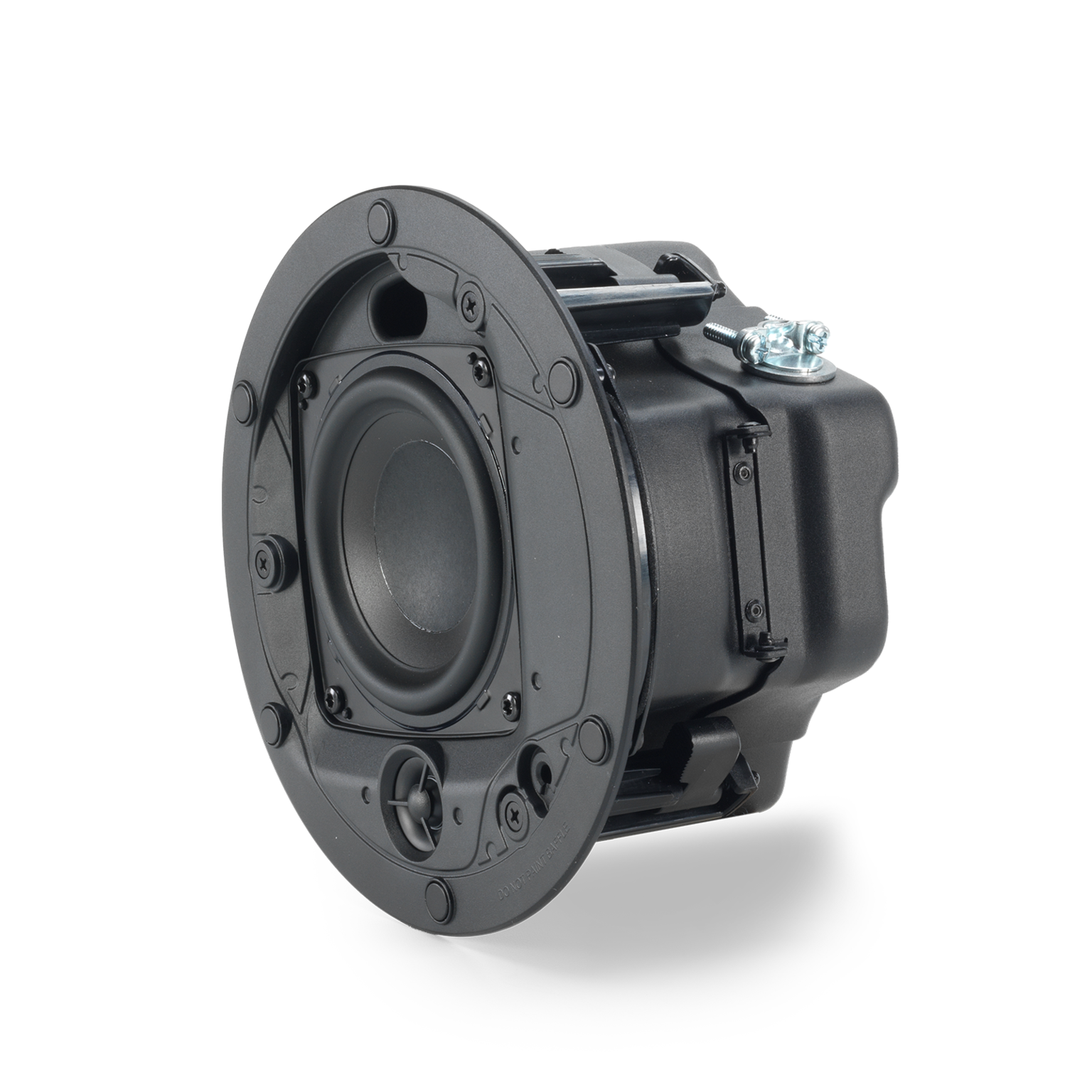

The JBL Control 414CT Micro Plus, part of the Control 400 Standard Coverage Series, is a two-way high-output ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

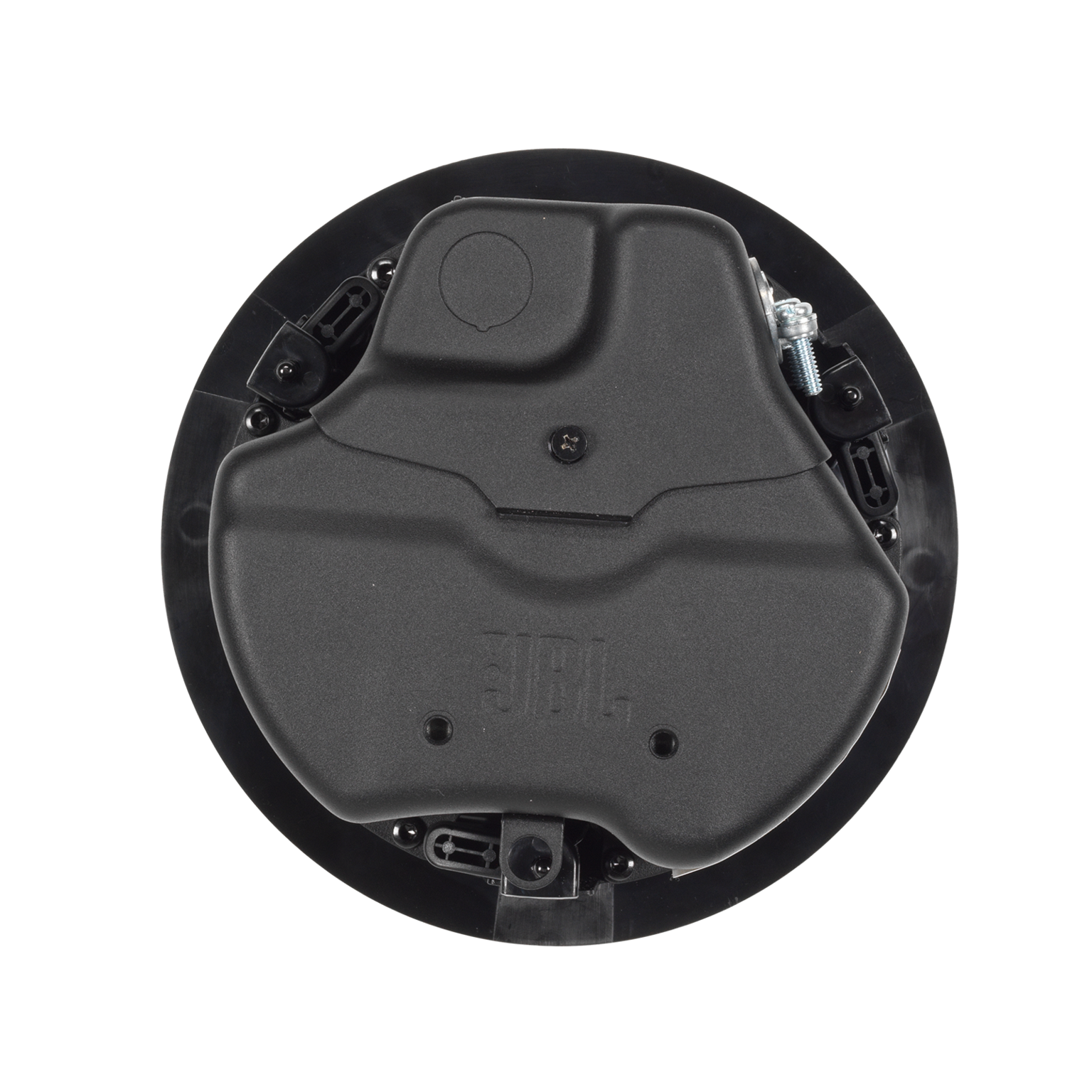

The Control 414CT Micro Plus includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
| Frequency Range (-10 dB) | 69Hz - 25kHz |
| Power Capacity | 25 W (100 W Peak) Cont. Pink Noise Power (100 hrs) |
| Sensitivity (1m/1W) | 85dB |
| Coverage Angle | 160° conical |
| Maximum SPL (1m) | 99 dB continuous pink noise (105 dB peak) |
| Nominal Impedance | n/a |

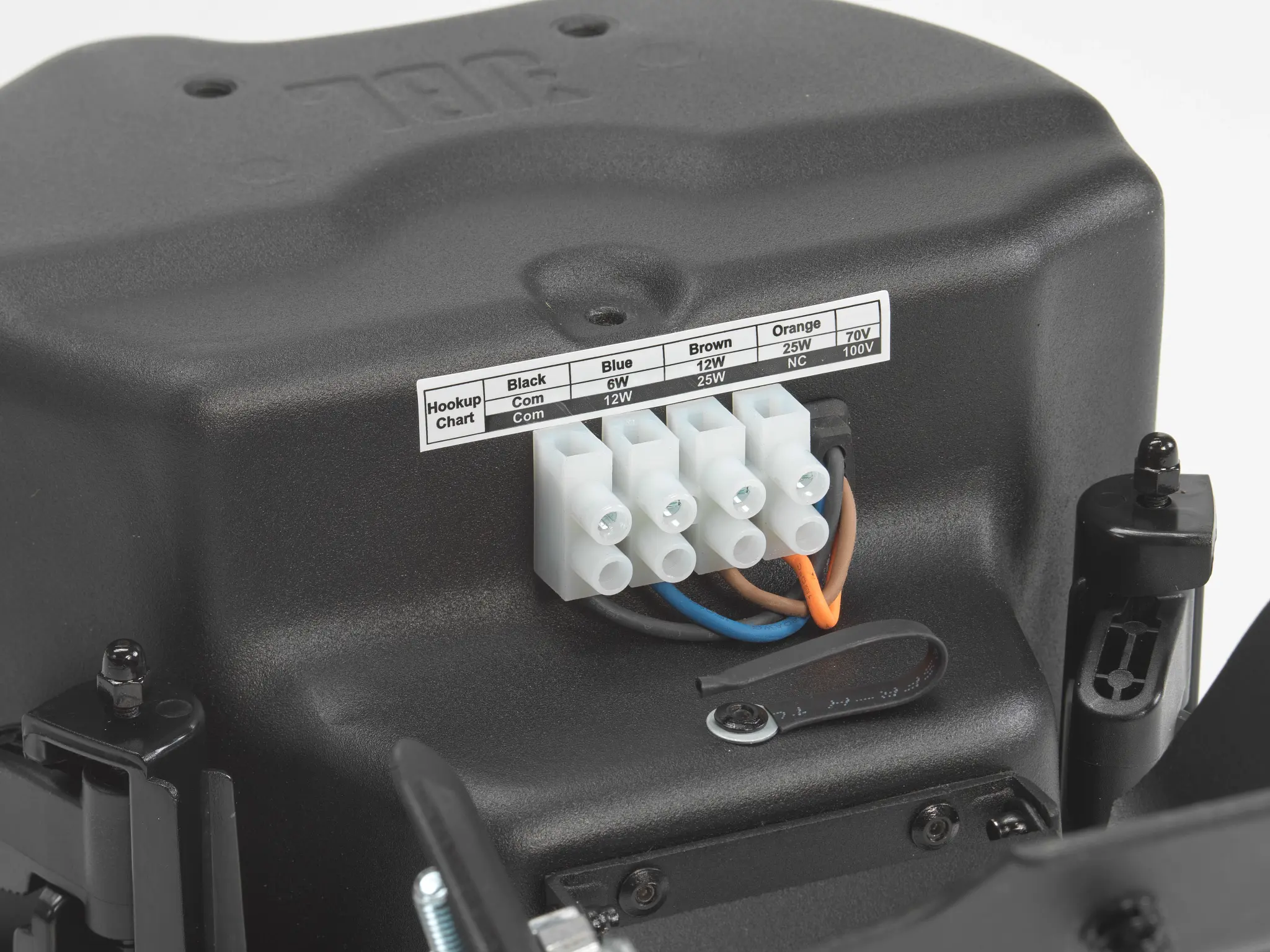

| Transformer Taps | 70 V: 25 W, 12 W & 6 W 100 V: 25 W, 12 W |

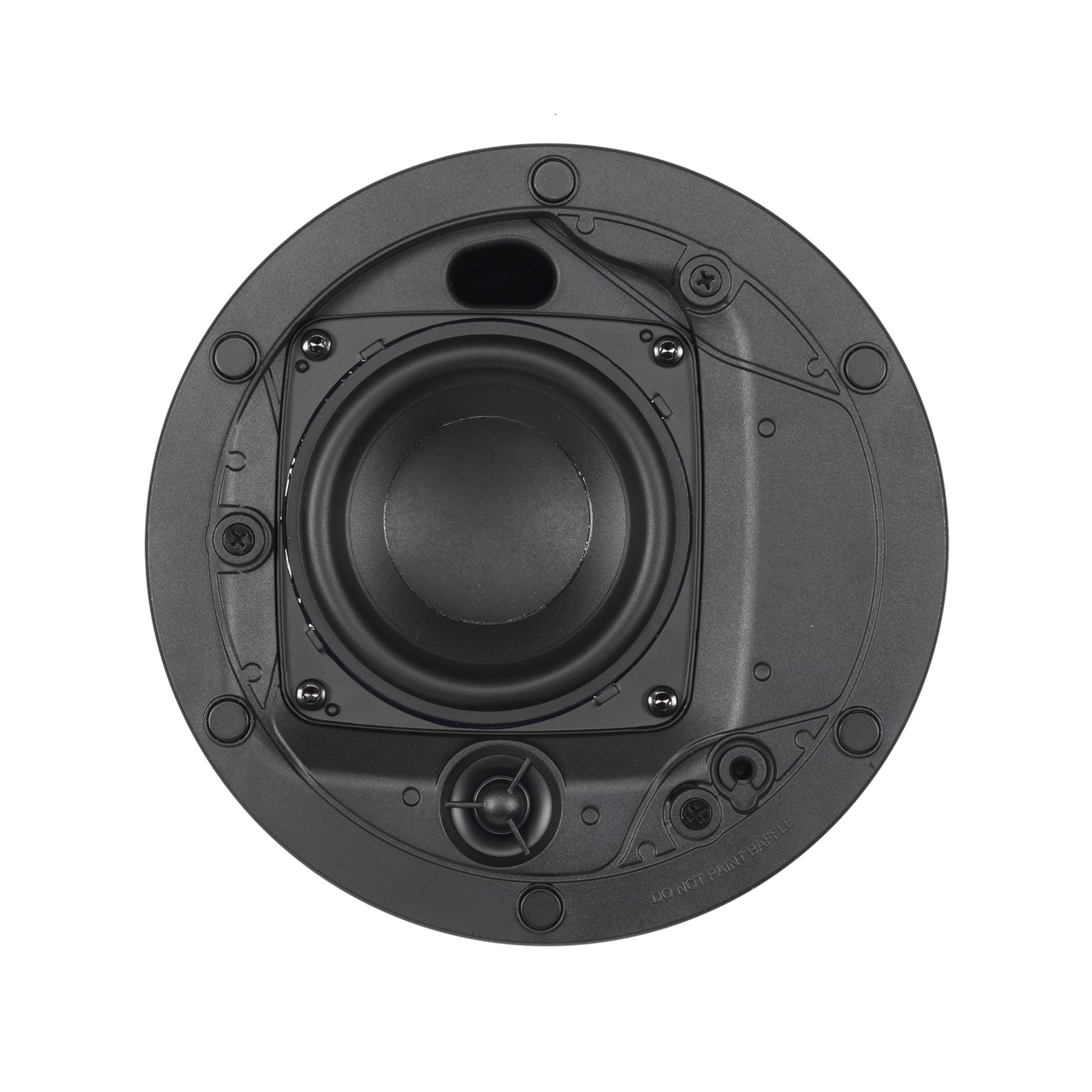

| Drivers | LF: 103 mm (4 in) with PP cone and paper cup, SBR surround HF: 13 mm (0.5 in) PEI dome |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions | 114 mm (4.6 in) H x 203 mm (8.1 in) dia. 105 mm (4.2 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
| Environmental | IP rating: IP32 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
| Optional Accessories | JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 2.12 kg (4.67 lbs) |
| Shipping Weight (pair) | 8.6 kg (18.96 lbs) |
| SKU Numbers | JBL-C414MPT |
