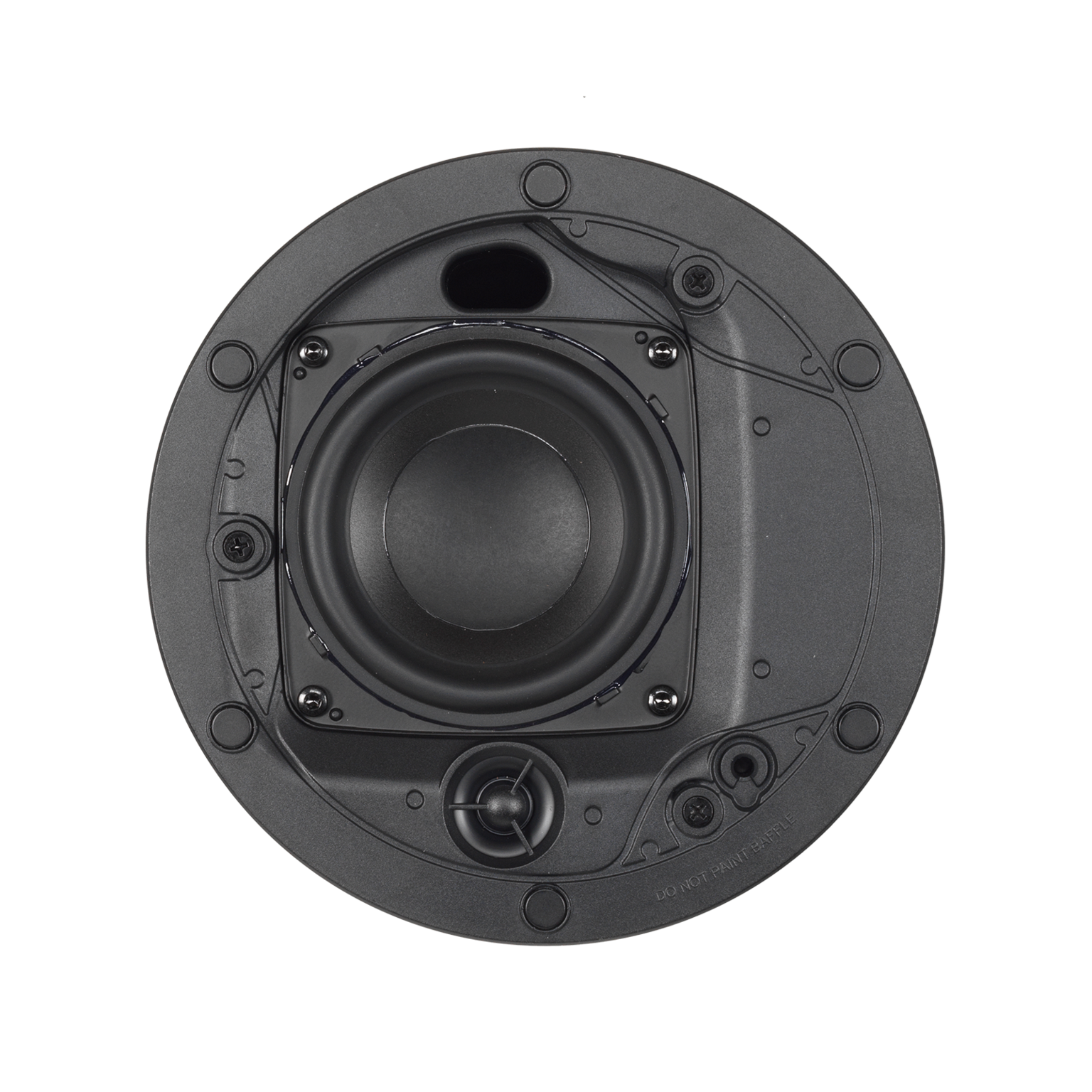

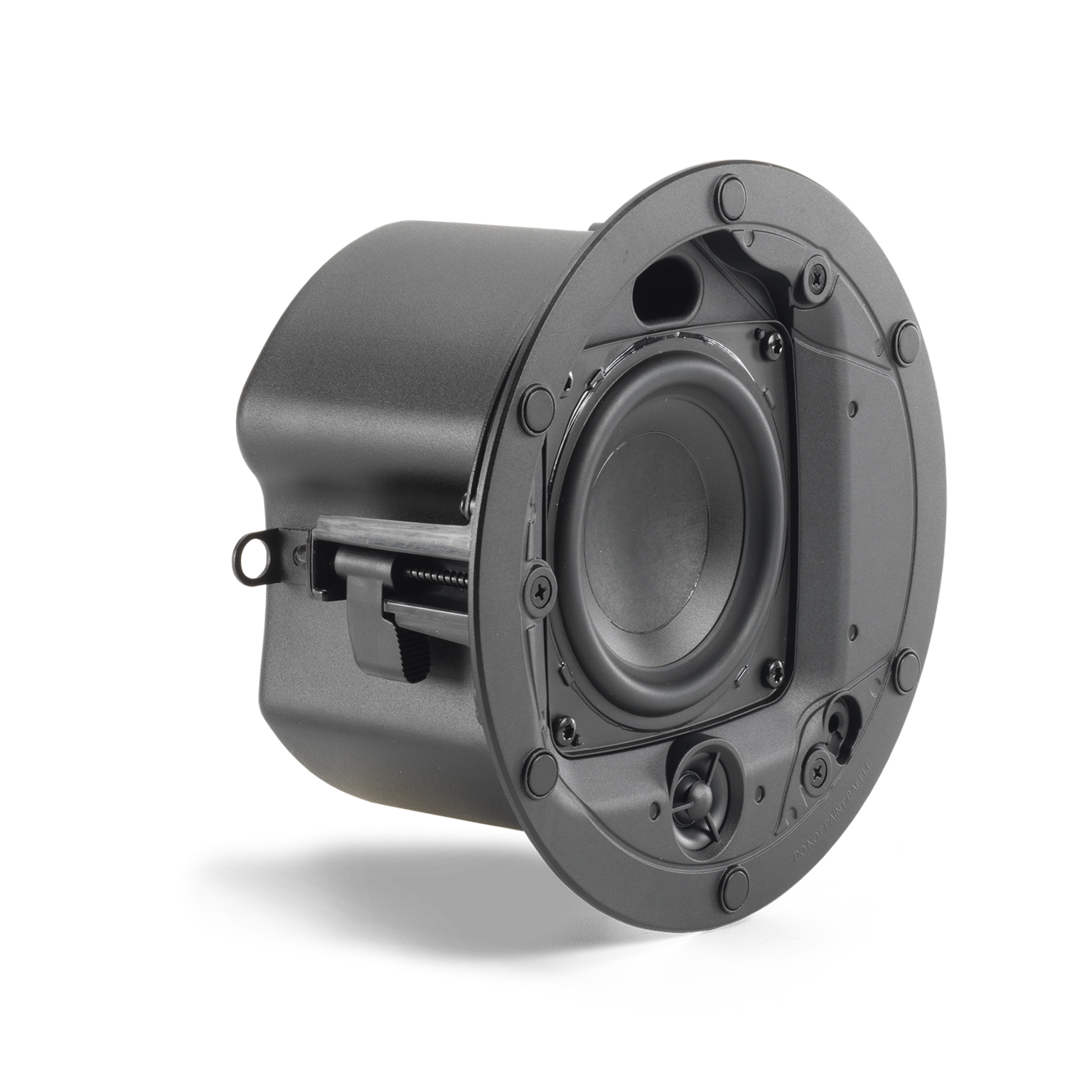

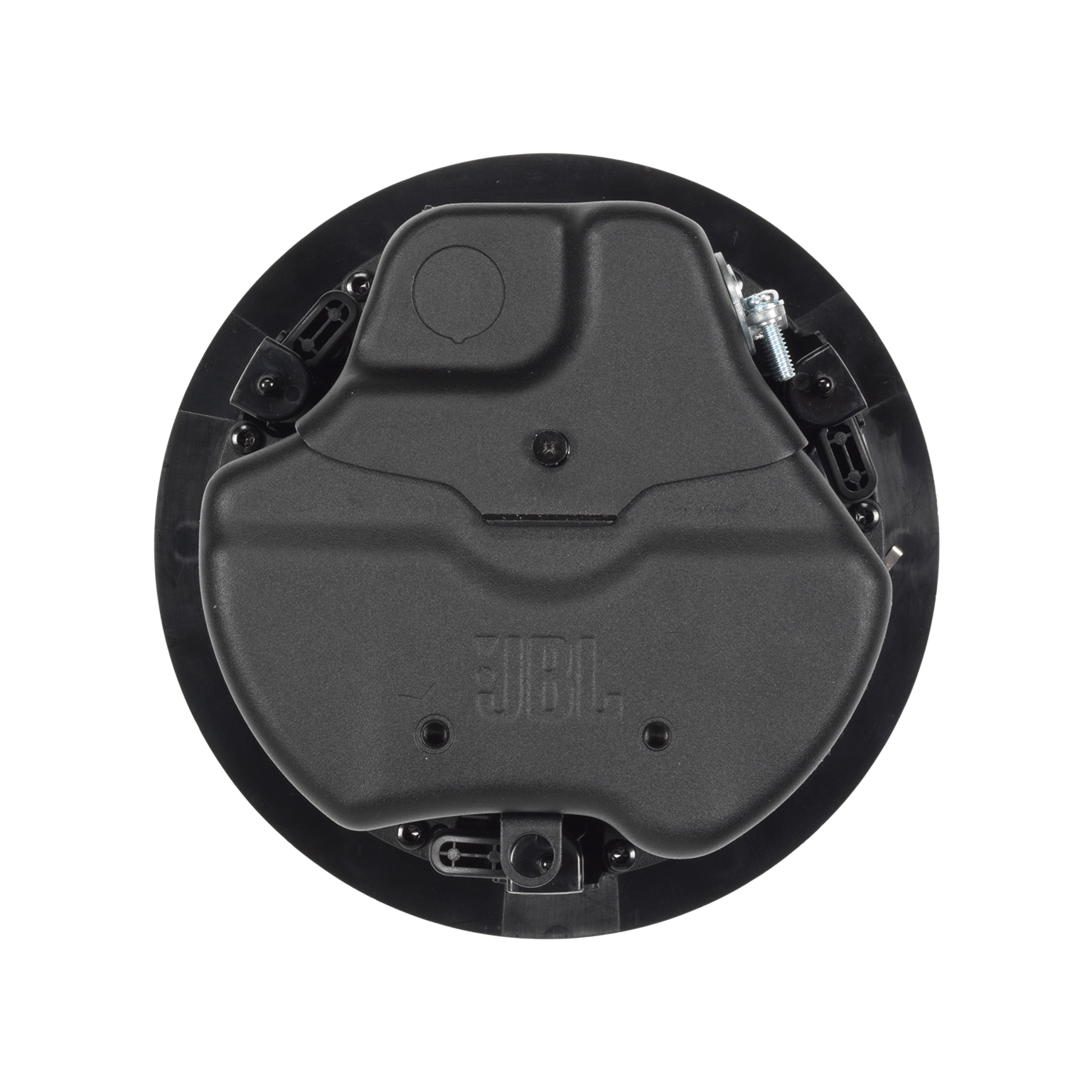

The JBL Control 414C/T Micro, part of the Control 400 Standard Coverage Series, is a two-way ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

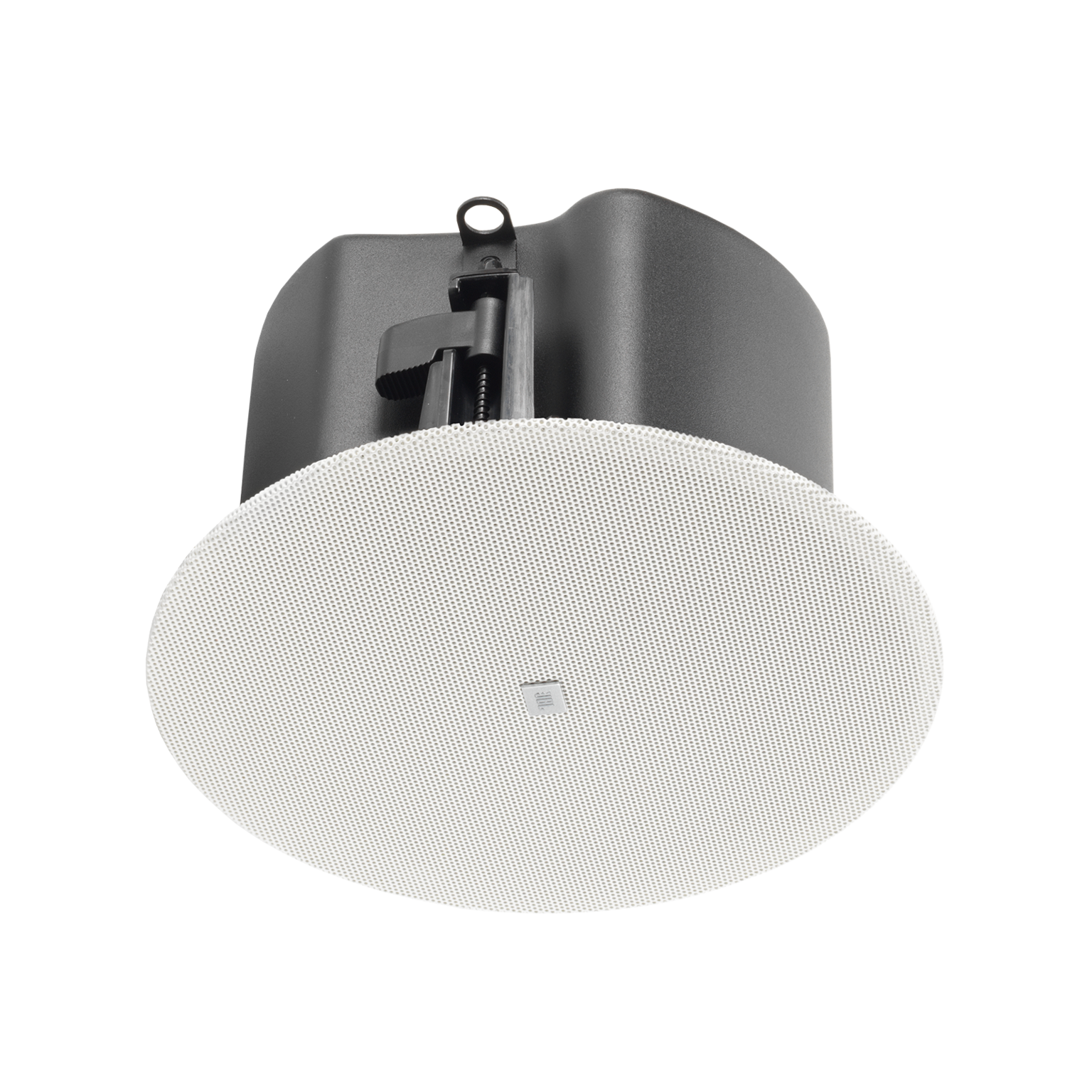

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 414C/T Micro includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T Micro supports both 70V/100V and low impedance applications.
| Frequency Range (-10 dB) | 69Hz - 25kHz |
| Power Capacity | 22.5 W (90 W Peak), Cont. Pink Noise (2 hrs) 15 W (60 W Peak), Cont. Pink Noise (100 hrs) |
| Sensitivity (1m/1W) | 86dB |
| Coverage Angle | 160° conical |
| Maximum SPL (1m) | 98 dB continuous pink noise (104 dB peak) |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W 100 V: 10 W, 5 W, 2.5 W & 1.2 W |
| Drivers | LF: 103 mm (4 in) with PP cone and paper cup, SBR surround HF: 13 mm (0.5 in) PEI dome |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions | 114 mm (4.6 in) H x 203 mm (8.1 in) dia. 105 mm (4.2 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
| Environmental | IP rating: IP32 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
| Optional Accessories | JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 2.11 kg (4.65 lbs) |
| Shipping Weight (pair) | 8.58 kg (18.92 lbs) |
| SKU Numbers | JBL-C414MC/T |
