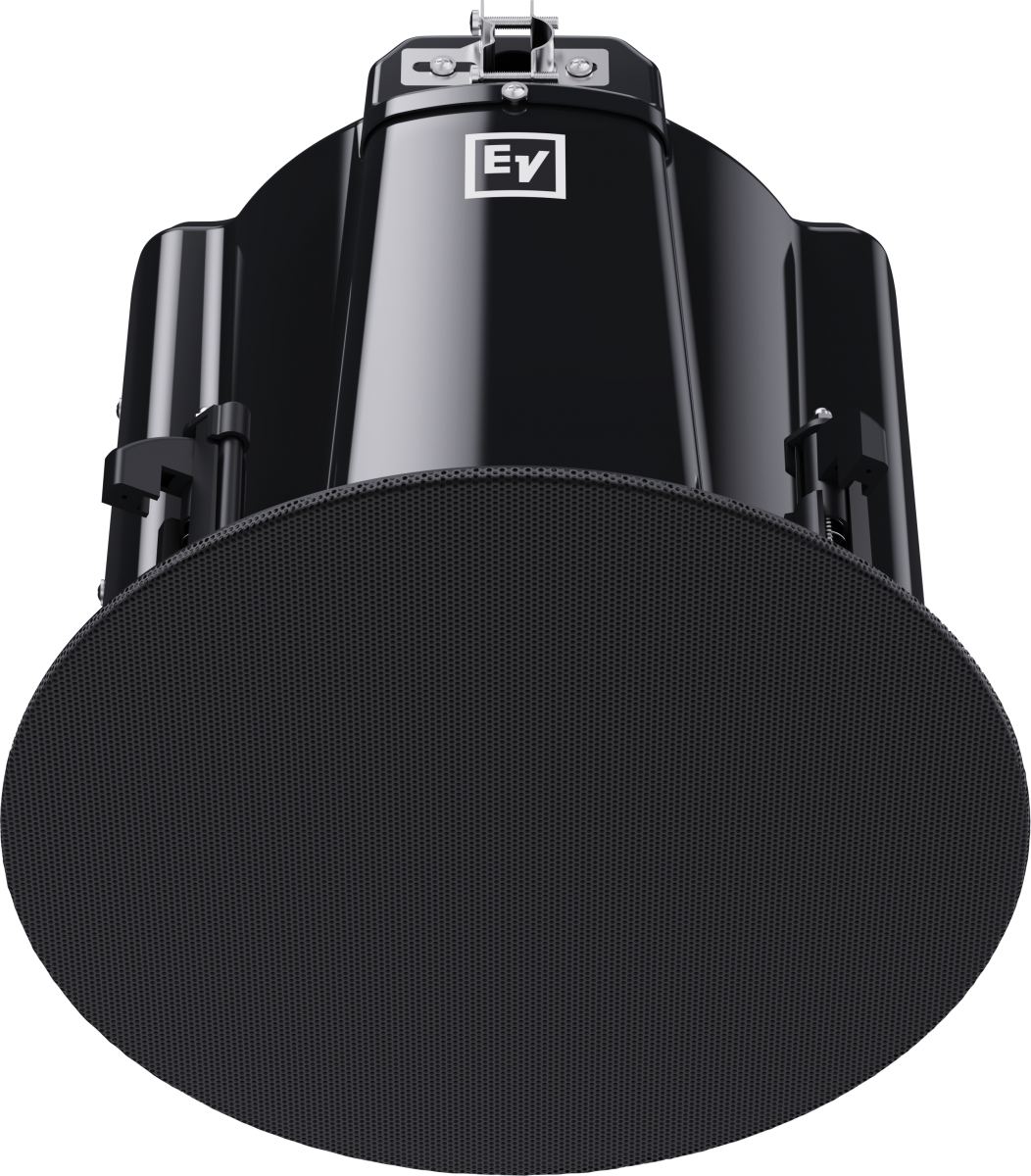

Loa âm trần 90W Electrovoice EVID-C8.2-G2
The Electro-Voice EVID-C8.2-G2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety.

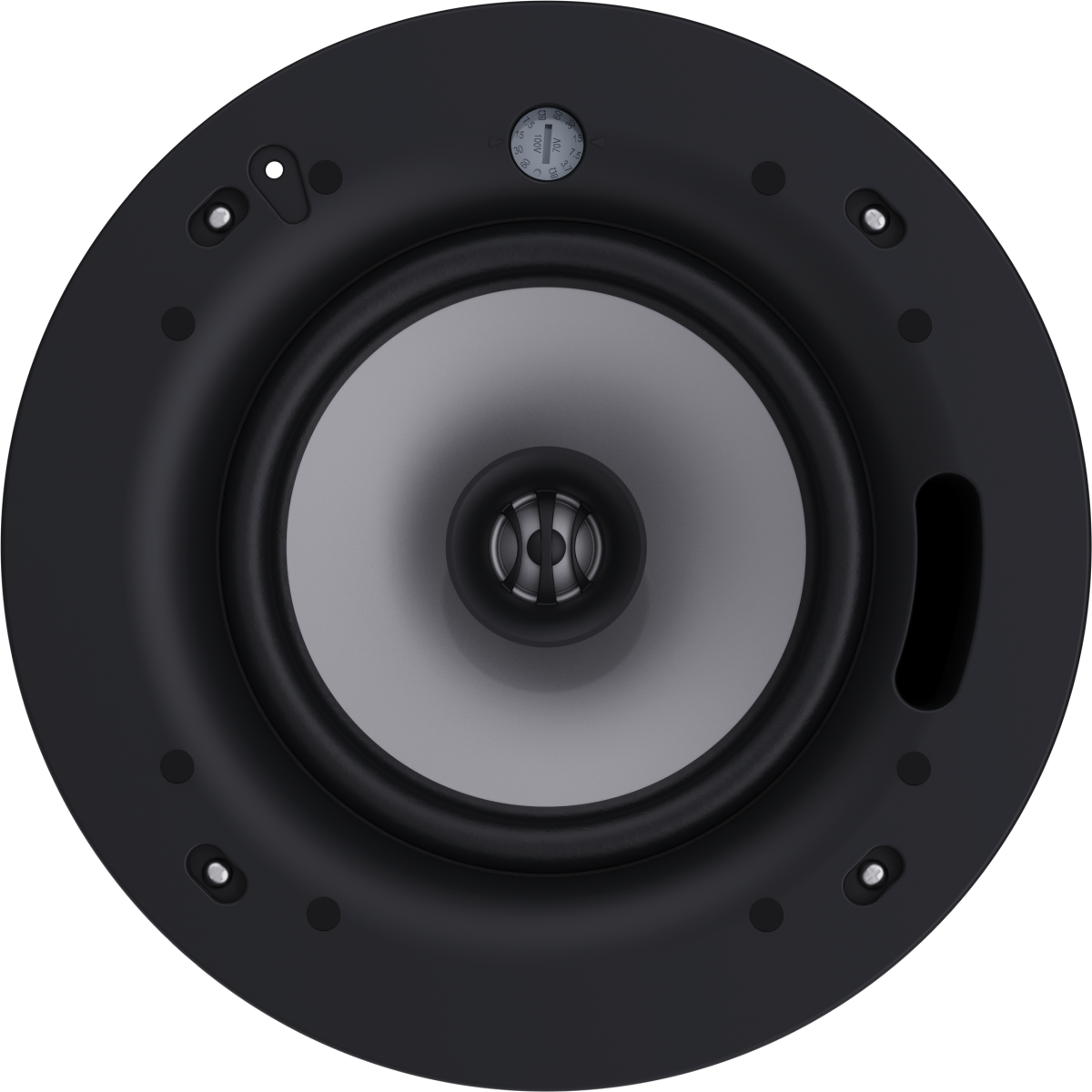

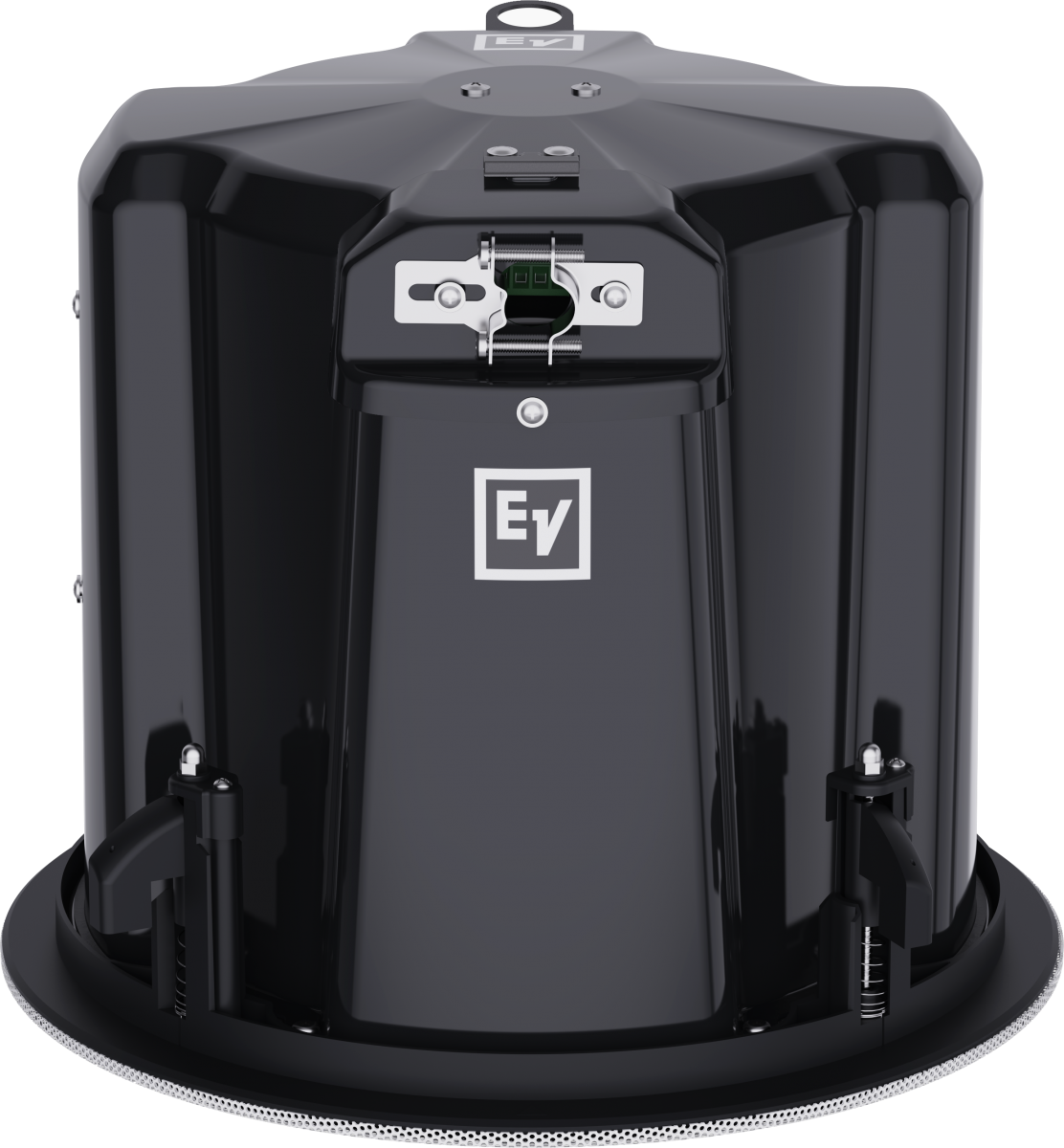

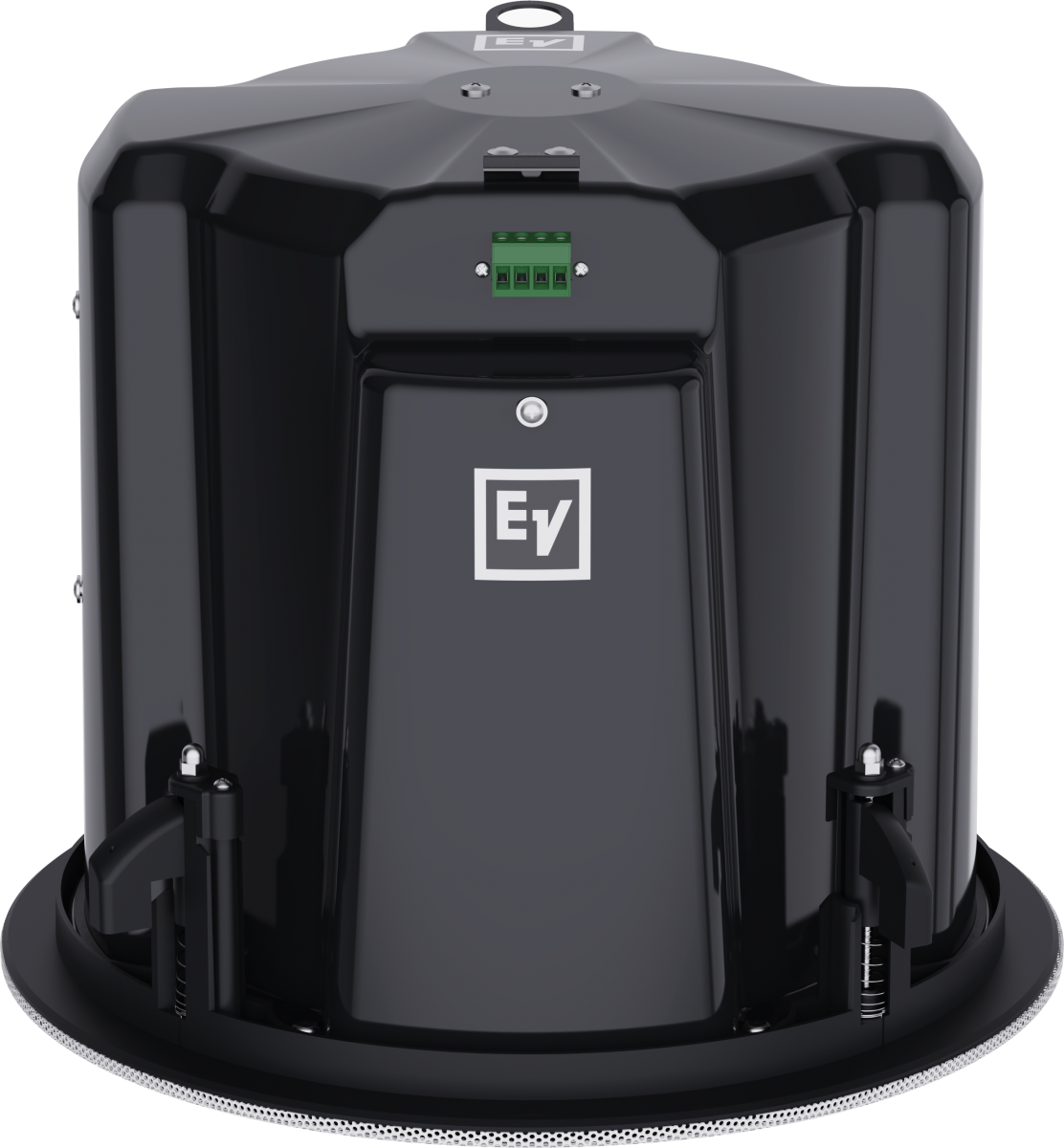

The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C8.2-G2 utilizes a transformer that offers a selection of 3.8 (70-V only), 7.5, 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.
A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers
|
60 Hz – 20,000 Hz |
|
110 dB |
|
116 dB |
|
90 dB SPL 1 W, 1 m |
|
90° |
|
90 W |
|
360 W |
|
75 W |
|
300 W |
|
8 Ω |
|
50 Hz |
|
60 W; 30 W; 15 W; 7.5 W; 3.75 W |
|
60 W; 30 W; 15 W; 7.5 W |
|
8 in |
|
1 in |
|
Steel |
|
Powder coated steel |
|
4-pin Euroblock Input + Pass through |
|
12AWG (maximum) |
|
3.3 mm2 (maximum) |
|
White; Customized colors |
|
RAL 9003 Signal white |
|
10.7 in |
|
272 mm |
|
11.9 in x 9.8 in |
|
302 mm x 249.2 mm |
|
9.6 in |
|
244 mm |
|
0.5 in - 1.5 in |
|
12.5 mm - 38 mm |
|
13.20 lb |
|
6 kg |
|
22 lb |
|
10 kg |
|
IP34 |
|
Indoor |
|
32 °F – 122 °F |
|
0 °C – 50 °C |
|
UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638 |
