Loa âm trần 40 W Electrovoice EVID-EC3.1

Mã sp : Loa âm trần 40 W Electrovoice EVID-EC3.1

Hotline: 0908677003

Loa âm trần Electrovoice EVID-EC3.1

  • Bezel-less design with easy-attach grille
  • Front baffle wattage tap adjustment
  • Includes tile bridge and C-ring for easyinstallation
  • UL 1480A, UL 2043, CSA C22.2 No. 205 andIEC 62368-1 certified


The Electro-Voice EVID-EC3.1 is a complete 3-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics.

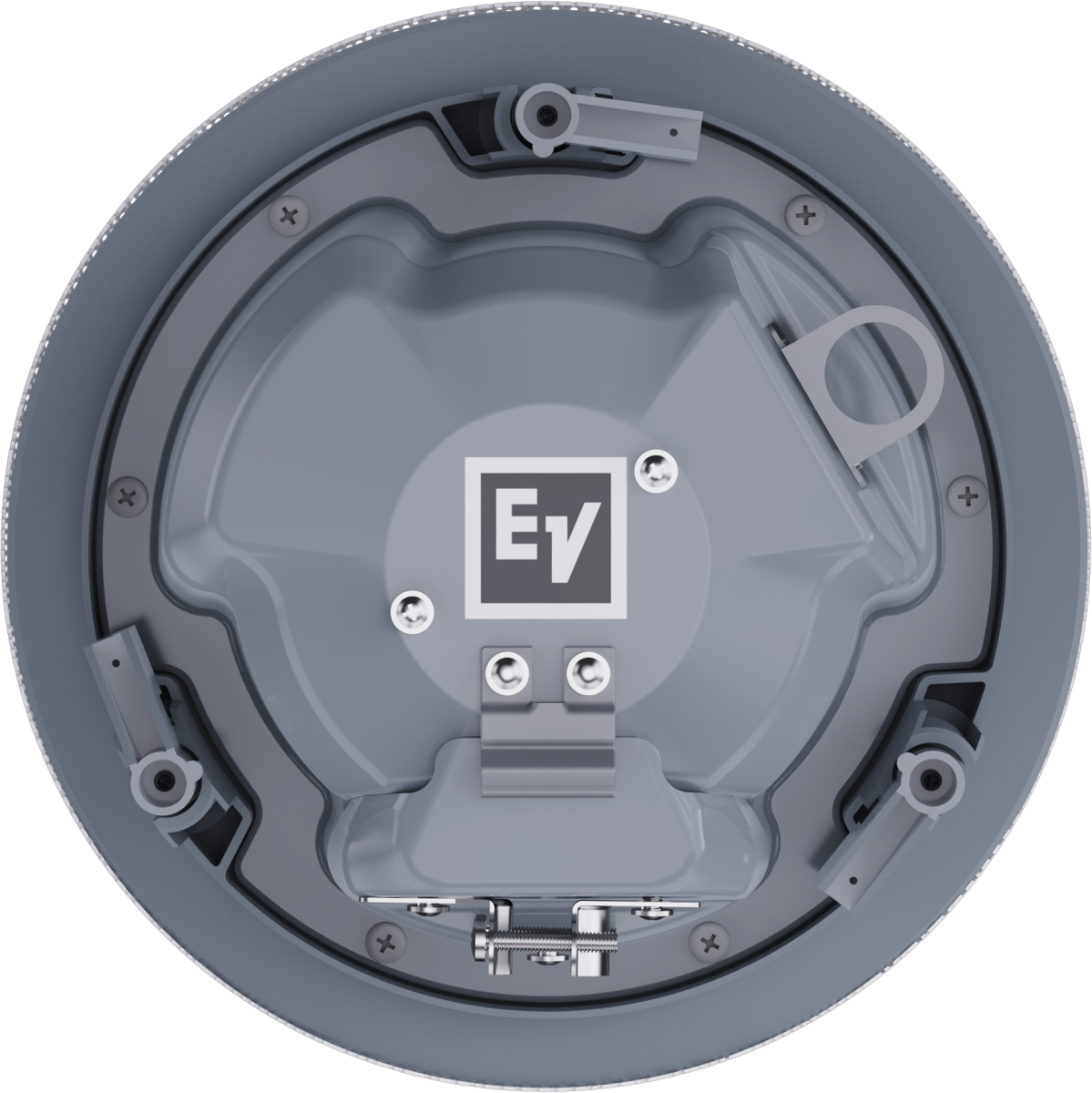

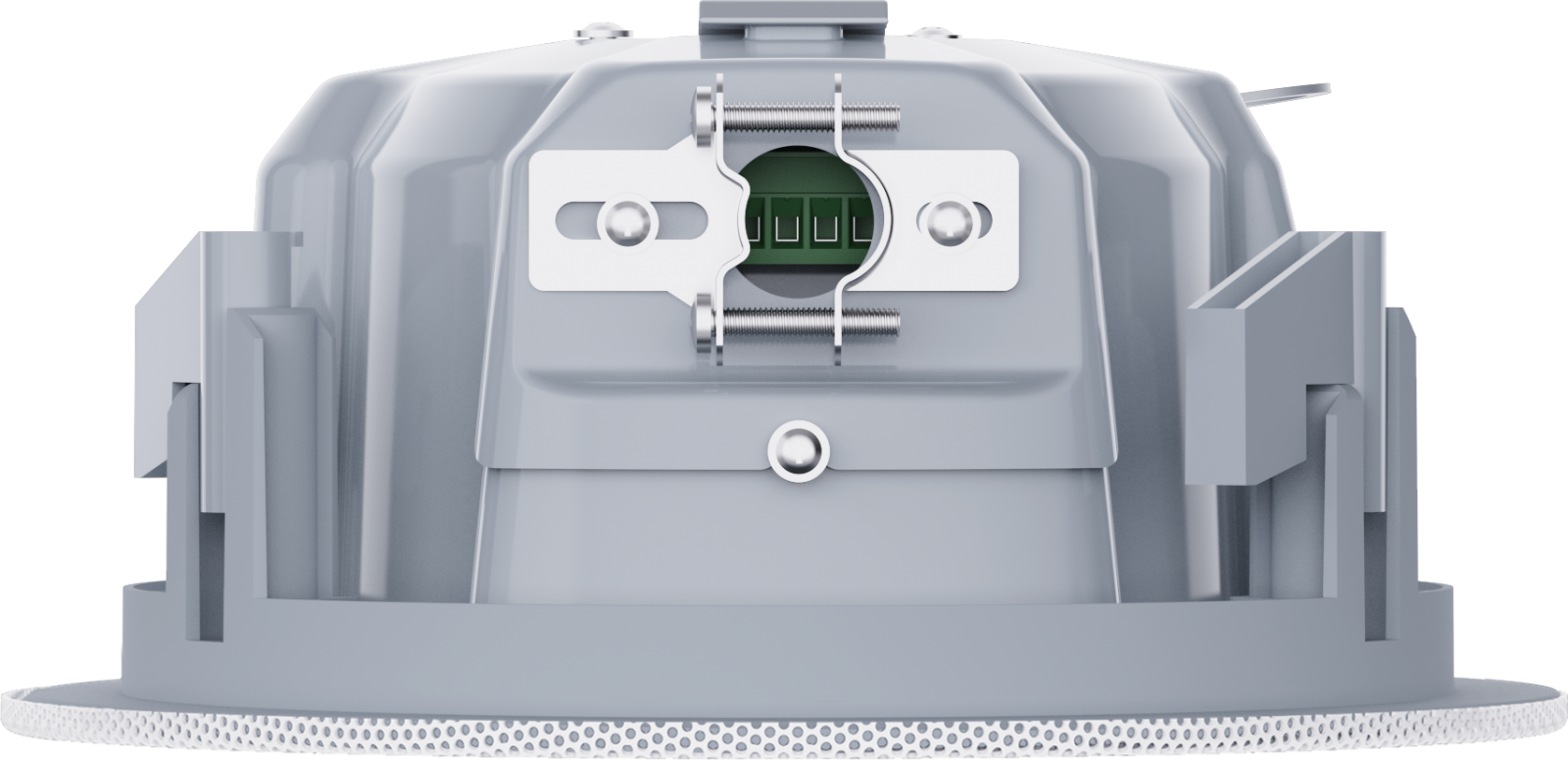

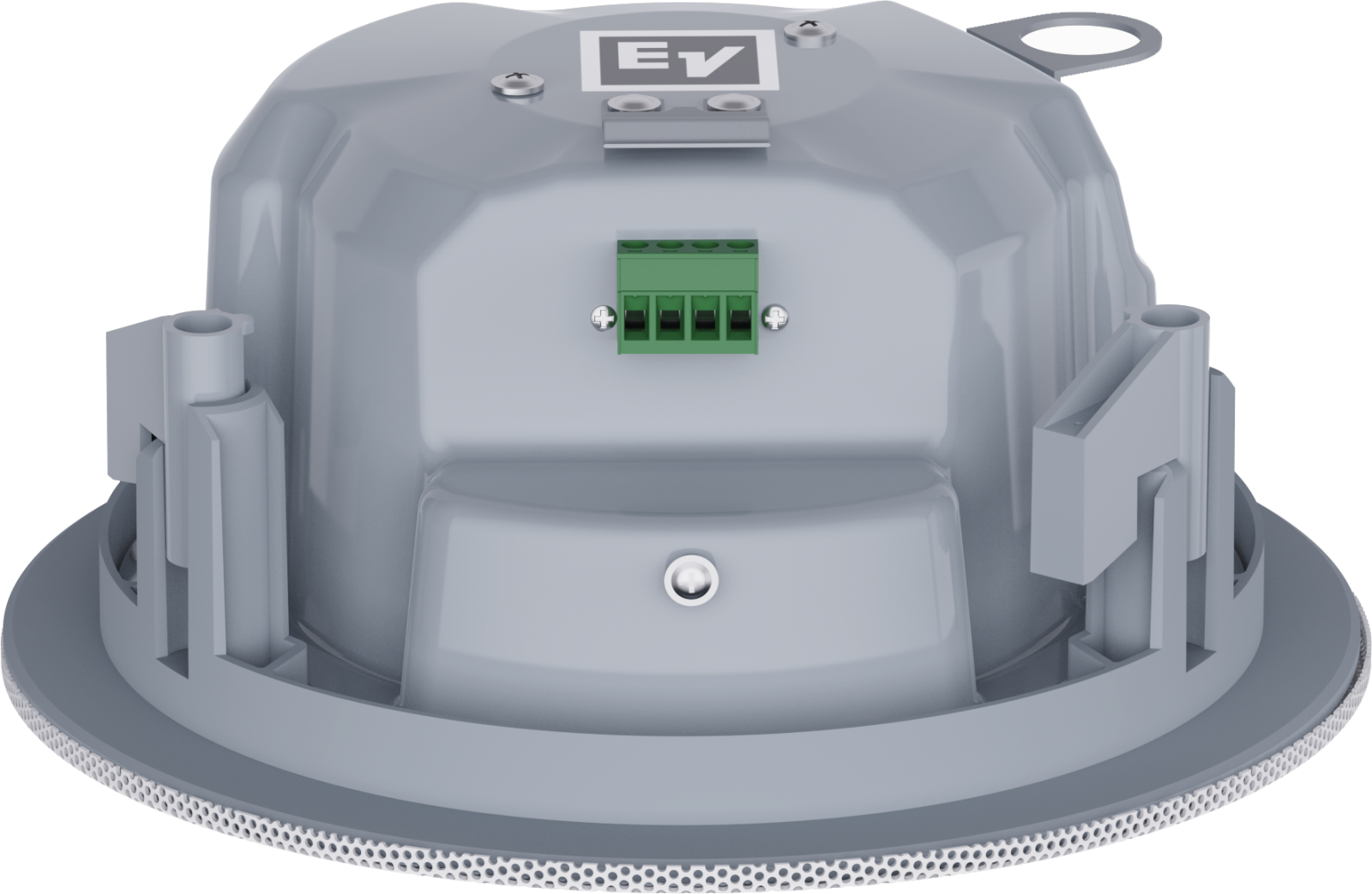

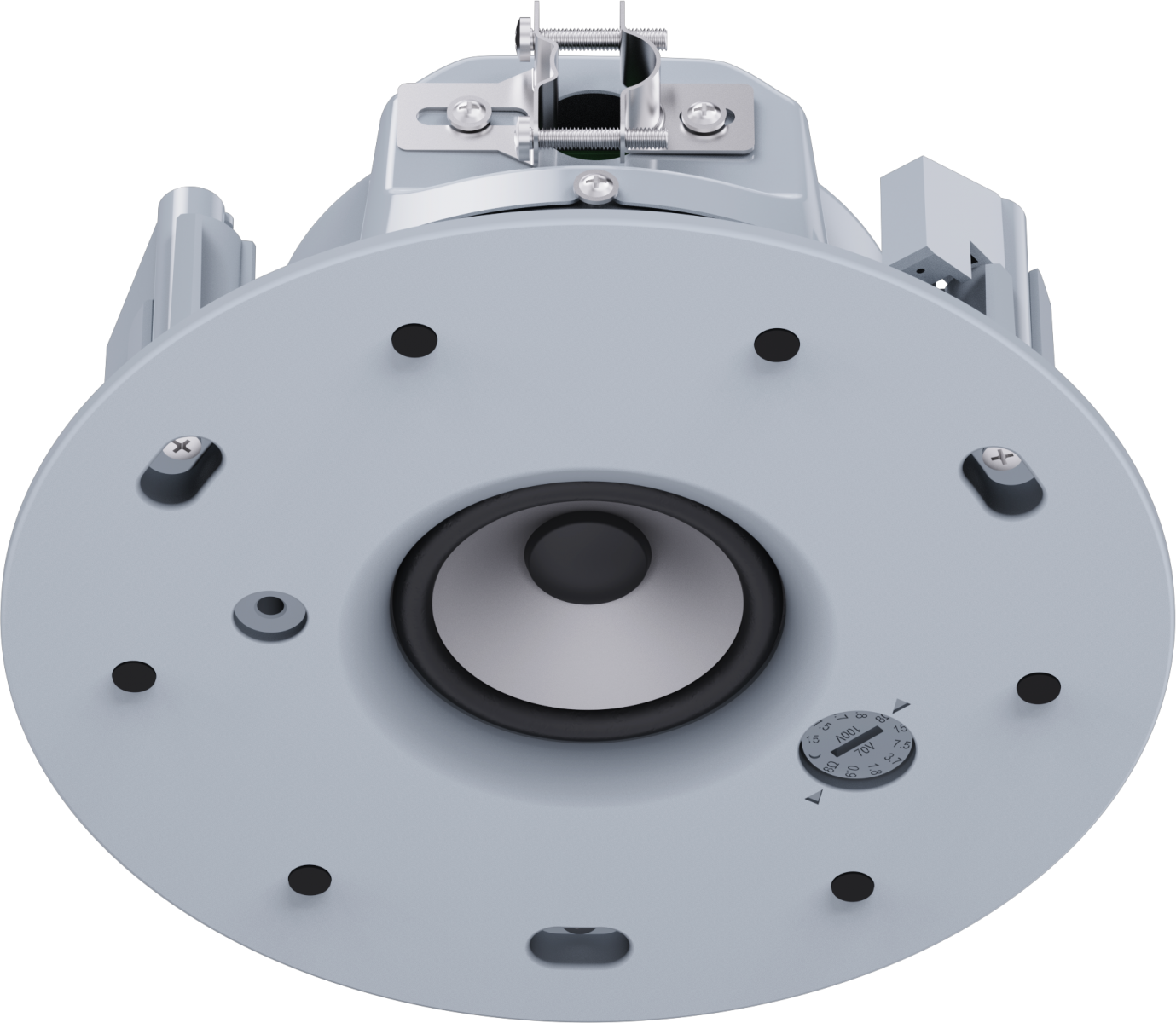

The EVID-EC3.1 utilizes a transformer that offers a selection of 0.9 (70-V only), 1.88, 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC3.1 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers



  • Frequency range (-10 dB) (Hz) 1    90 Hz – 19,000 Hz
  • Maximum SPL (continuous) (dB) 2    100 dB
  • Maximum SPL (peak) (dB) 2    106 dB
  • Sensitivity (1 W, 1 m) 3    84 dB SPL 1 W, 1 m
  • Coverage angle conical (°)    135°
  • Power handling (continuous) (W) 4    40 W
  • Power handling (peak) (W) 4    160 W
  • Long term power handling (continuous) (W) 5    25 W
  • Long term power handling (peak) (W) 5    100 W
  • Nominal impedance (Ω) (Low Z)    8 Ω
  • Recommended high pass (Hz) 6    110 Hz
  • Transformer taps 70 V line (W)    15 W; 7.5 W; 3.75 W; 1.88 W; 0.9 W
  • Transformer taps 100 V line (W)    15 W; 7.5 W; 3.75 W; 1.88 W
  • LF transducer size (in)    3 in
  • Material    Steel
  • Grille material    Powder coated steel
  • Connector type    4-pin Euroblock
  • Input + Pass through
  • Wire size (AWG)    12AWG (maximum)
  • Wire diameter (mm2)    3.3 mm2 (maximum)
  • Color    White; Customized colors
  • Color (RAL)    RAL 9003 Signal white
  • Mounting cutout (in)    7.20 in
  • Mounting cutout (mm)    183 mm
  • Dimensions (Ø x D) (in)    8.4 in x 3.9 in
  • Dimensions (Ø x D) (mm)    212 mm x 98.3 mm
  • Mounting depth (in)    3.7 in
  • Mounting depth (mm)    93 mm
  • Ceiling thickness (in)    0.5 in - 1.5 in
  • Ceiling thickness (mm)    12.5 mm - 38 mm
  • Weight (lb) 7    4.6 lb
  • Weight (kg) 7    2.1 kg
  • Shipping weight (lb) 8    13.2 lb
  • Shipping weight (kg) 8    6 kg
  • IP rating    IP45
  • Weatherization    Indoor
  • Operating temperature (°F)    32 °F – 122 °F
  • Operating temperature (°C)    0 °C – 50 °C
  • Safety agency ratings    UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
