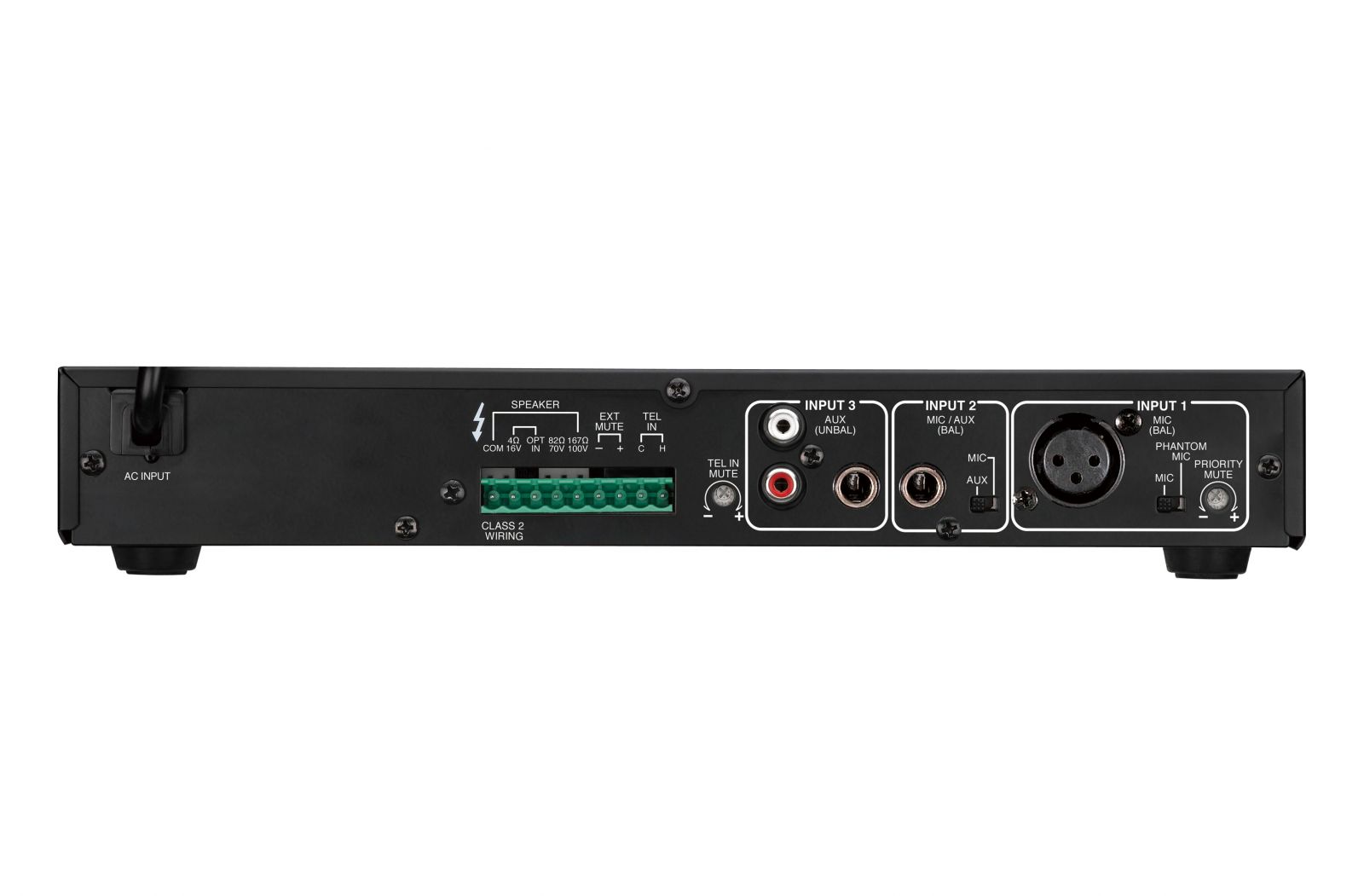

Ampli 60W InterM MA-106
60W Public Address Mixing Amplifier
● Digital Amplifier Circuit
- With rated output of 60W and 100W, it is trustworthy, light weight and low heat.
● SMPS Power Supply Circuit
- With stable SMPS power supply circuit, it is low power and low weight.
● Auto Sleep Mode(Only MA-110/110N, Exclude UK version)
- Without any input signal for over 5 minutes, it is automatically switched to Auto Sleep Mode and once input signal is entered again, it wakes up within 0.5 second.
● Tone controller (Bass / Treble)
- There is a tone controller that can be customized to the purposes of the use and user’s style.
● Outside Mute Control
- The Mute function can be controlled outside and can also be linked to emergency broadcast.
● Additional Function
- Additional functions such as Phantom microphone power, TEL IN, outside Mute control are possible
| Model | MA-106/106N | MA-110/110N | |
| Rated Power | 60W | 100W | |
| Speaker Output Power / Impedance | 15.5V/4Ω, 25V/10.5Ω, 70V/82Ω, 100V/167Ω | 20V/4Ω, 70V/49Ω, 100V/100Ω | |
| Input Sensitivity / Impedance | INPUT 1 | -50dBV/2kΩ | -50dBV / 2kΩ |
| INPUT 2(MIC) | -15dBV/2kΩ | -50dBV / 2kΩ | |
| INPUT 2(LINE) | -10dBV/20kΩ | -10dBV / 20kΩ | |
| INPUT 3 | -10dBV/10kΩ | -10dBV / 10kΩ | |
| TEL IN | 0.775/600Ω | 0.775 / 10kΩ | |
| Frequency Response(±3dB) | 80Hz ~ 15kHz | 80Hz ~ 18kHz | |
| S/N | INPUT 1,2 | Better than 60dB | Better than 60dB |
| INPUT 3, TEL IN | Better than 70dB | Better than 70dB | |
| Tone Contro | BASS (100Hz) | ±12dB | ±10dB |
| TREBLE (10kHz) | ±12dB | ±10dB | |
| Operating Temperature | -10°C ~ +40°C | -10°C ~ +40°C | |
| Power Source | 100–120VAC or 220–240VAC, 50/60Hz | 100–120VAC or 220–240VAC, 50/60Hz | |
| (Supplied AC mains depends on country requirements) |
(Supplied AC mains depends on country requirements) |
||
| Power Consumption | 24W | 30W | |
| Weight | 3.0kg/6.6lb | 3.05kg/6.7lb | |
| Dimensions | 300(W) x 44(H) x 230(D)mm /11.8(H) x 1.7(H) x 9.1(D)in |
300(W) x 44(H) x 230(D)mm /11.8(H) x 1.7(H) x 9.1(D)in |
|
