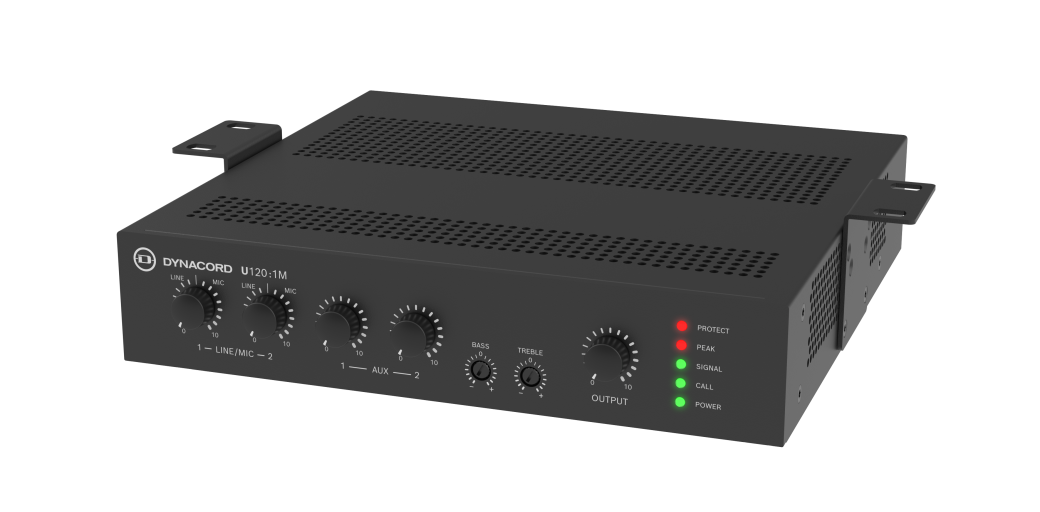

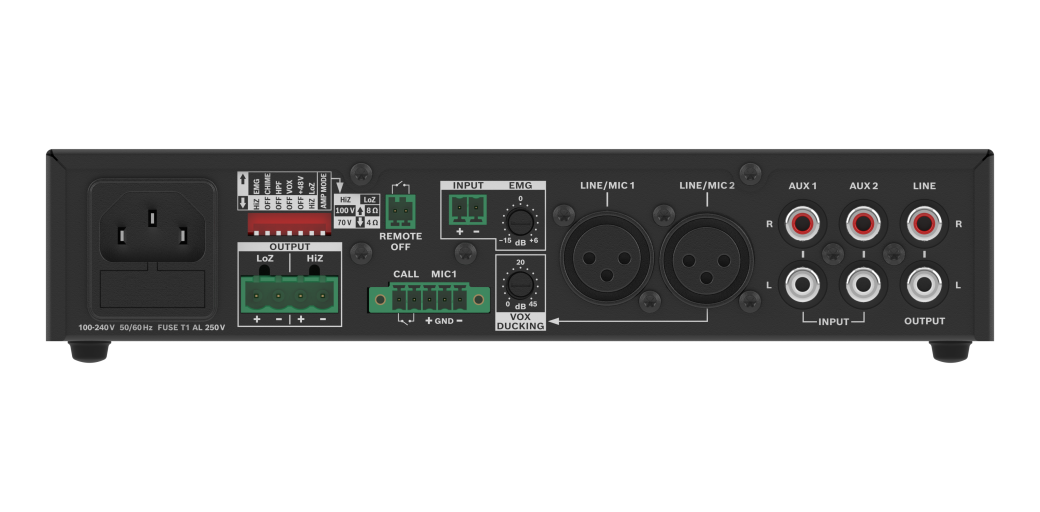

Mixer amplifier 120W Dynacor U120:1M
| Electrical | |
| Mains power supply | |
| Voltage | 100 VAC - 240 VAC, 50/60 Hz |
| Power | 400 VA |
| Consumption | Standby (Remote OFF active) 1.25 W Idle mode 9 W / 11 W |
| Remote power (ON/OFF Stand by) | 2-pin, Eurostyle, contact closure |
| Performance | |
| Frequency response, -3 dB ref. 1 kHz | |
| Any input to output | <10 Hz — 22 kHz |
| Any input to LINE output | <10 Hz — 65 kHz |
| Distortion | <1% @rated output power, 1 kHz |
| Output stage topology | Class D |
| Equalization | |
| Bass shelving | ±12 dB / 150 Hz — 3 dB (100 Hz) |
| Treble shelving | ±12 dB / 5 kHz — 3 dB (10 kHz) |
| Filter | |
| LO-CUT permanently | f=20 Hz, 12 dB/oct. |
| LO-CUT switchable, can be activated |
f=120 Hz, 12 dB/oct.
|
| General | |
| Front status LEDs | |
| Protect (Red) | Protection, short circuit |
| Peak (Red) | 1 dB before clip (input and output) |
| Signal (Green) | Input and output signal |
| Call (Green) | EMG / priority trigger / Vox input active |
| Power (Green) | Power on condition |
| DIP switches | EMG (HiZ/LowZ), Two-tone Chime (ON/OFF), HPF (120 Hz), VOX (ON/OFF), Phantom power (+48 V/OFF) Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω) |
| Protections | |
| Amplifier | Audio limiters, high temperature, DC, HF, short circuit, over current protection |
| Switching mode power supply (µPC controlled) | Mains over/under voltage protection, inrush current limiter, mains over current, high temperature |
| Remote power OFF | Contact closure |
| Inputs | |
| Number of inputs | 2 mic/line, 2 aux (+EMG) |
| Sensitivity with all level controls in max. position | |
| MIC / Call station | -68 dBu (300 µV) |
| AUX (only L or R) | -22 dBu (60 mV) |
| AUX (Stereo) (L and R) | -28 dBu (30 mV) |
| Maximum input level | |
| MIC / Call station | +8 dBu |
| Input impedances | |
| MIC / Call station | 10 kΩ |
| AUX | 4.7 kΩ |
| EMG (Line) | >15 kΩ |
| EMG (HiZ) | >470 kΩ |
| LINE (L and R) | 75 Ω |
| Noise, MIC input to output, Aweighted, (HiZ 100 V) | -58 dBu |
| Input 1 | |
| Type | Mic/Line, contact override with chime |
| Connector | 3-pin XLR, balanced / 5-pin Eurostyle, balanced (3 pin for input, 2 pin for trigger |
| Dynamic range | 61 dB (Mic gain min — max) |
| S/N (A-weighted) | ≥98 dB |
| Phantom power supply, switchable | 48 V DC |
| Input 2 | |
| Type | Mic/Line, VOX ducker override |
| Connector | 3-pin XLR, balanced |
| VOX Ducking | Ducking control 0 dB — -45 dB |
| VOX Threshold | -60dBu — +8 dBu, adjustable |
| Dynamic range | 61 dB (Mic gain min — max) |
| S/N (A-weighted) | ≥98 dB |
| Phantom power supply, switchable | 48 V DC |
| Input 3 | |
| Type | Line |
| Connector | RCA (chinch), stereo converted to mono, unbalanced |
| S/N (A-weighted) | ≥98 dB |
| Input 4 | |
| Type | Line |
| Connector | RCA (chinch), stereo converted to mono, unbalanced |
| S/N (A-weighted) | ≥98 dB |
| EMG Input | |
| Type | Line; 100 V |
| Connector | 2-pin, balanced |
| S/N | (A-weighted) ≥98 dB |
| Loudspeaker output | |
| Connector | 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ) |
| Rated output power | 120 W |
| Max output voltage, 1 kHz, THD=0.5%, no load | 4 Ω 8 Ω 70 V 100 V 22 VRMS 32 VRMS |
| Mechanical | |
| Enclosure | |
| IEC protection class | Class I (grounded) |
| Dimensions (HxWxD), without acessories | 44.2 mm x 218 mm x 217.7 mm (1.74 in x 8.6 in x 8.57 in) |
| Color in RAL | RAL 9017 Traffic black |
| Net weight (without accessories) | 1.86 kg (4.10 lb) |
| Net weight (with accessories) | 2.32 kg (5.11 lb) |
| Shipping weight | 2.68 kg (5.90 lb) |
| Mounting | Stand-alone; 19" rack; rack side-byside; half 19" rack; table-top; undertable |
