Soundcard Livestream Icon Upod Nano

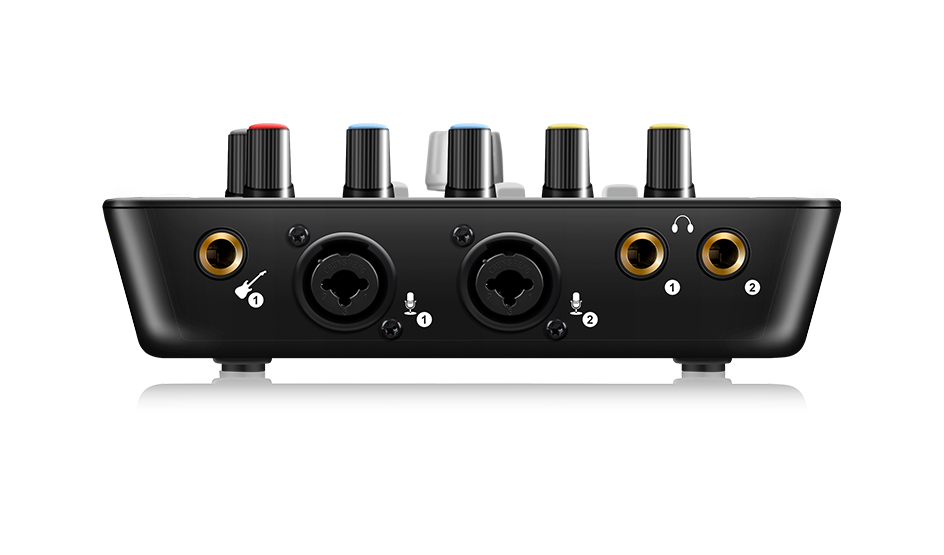

● 16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
● 2×2 analog I/O full duplex recording and playback
● ICON innovative unique mic preamp with individual gain control.
● +48V phantom power equipped.

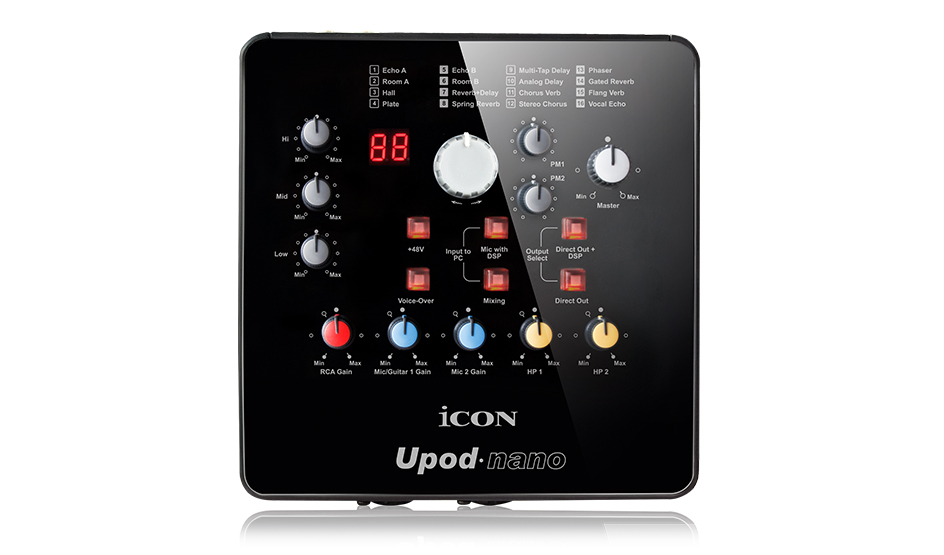

● Built-in ICON 16-DSP effect with control knob on the top panel.
● 2 DSP parameter adjustment knobs on the top panel.

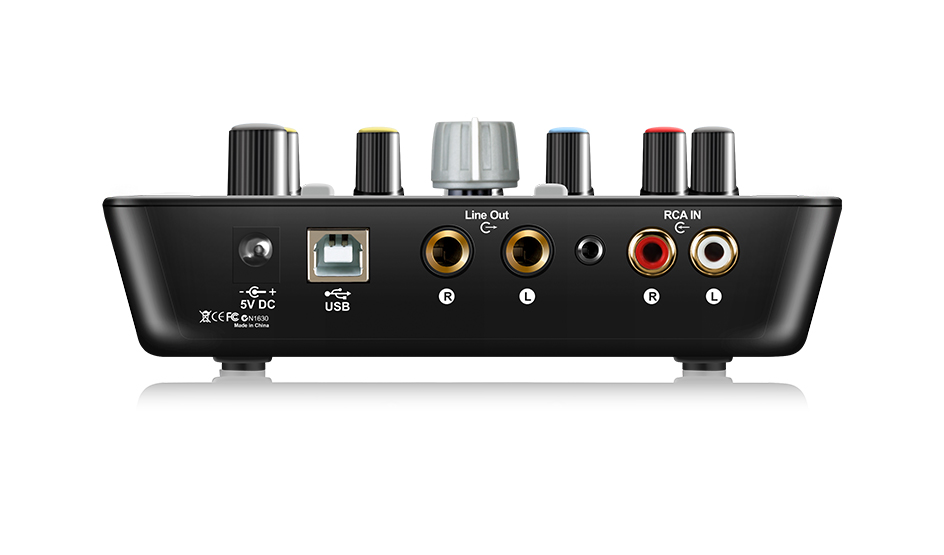

● 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
● Built-in stereo RCA input with individual gain control
● Allow to use as a stand-alone device with RCA input & DSP processing.
● Attenuator function button equipped for music fade out automatically when mic signal present.
● Buttons equipped for controlling mic signal (dry/wet) recording to PC.
● Buttons equipped for controlling monitoring signal (dry/wet).
● Master volume control on the top panel
● 2 headphone outputs on 1/4” TRS jacks with individual volume control
● USB2.0 compatible and USB bus-powered
● Plug and play and no driver installation is needed.
● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
● Full duplex, simultaneous record/playback
| Mic Input | ||
| Frequency Response | 22Hz to 22kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.0061% (-86dB) | |
| Crosstalk | -85dB@1kHz | |
| Input Impedance | Mic in:1.8K Ohms, typical | |
| Total Gain Range | +39dB | |
| Inst Input | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.0061% (-86dB) | |
| Crosstalk | -75dB @ 1kHz | |
| Input Impedance | Inst in:500K Ohms, typical | |
| Total Gain Range | +38dB | |
| Line Inputs (RCA IN, Unbalanced) | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.003% (-86dB) | |
| Crosstalk | -90dB@1kHz | |
| Input Impedance | 10K Ohms, typical | |
| Adjustable Gain | +8dB | |
| Line Outputs 1/2 (Stereo, Unbalanced) | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.003% (-86 dB) | |
| Crosstalk | -90dB@1kHz | |
| Nominal Output Level | Unbalanced: +2dBV, typical | |
| Headphone Outputs: (at Maximum Volume; Into 100 Ohm load) | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Power into Ohms | 20 mW into 100 Ohms | |
| THD+N | <0.06% (-66dB) | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| Max Output Level into 100 Ohms | +2.0dBV, typical | |
| Load Impedance | 32 to 600 Ohms | |
| Weight | 0.520 KG（1.15lb） | |
| Dimensions | 160mm(L)x160mm(W)x50mm(H) | |
| Dimensions | 6.3"(L)x6.3"(W)x1.97"(H) | |
