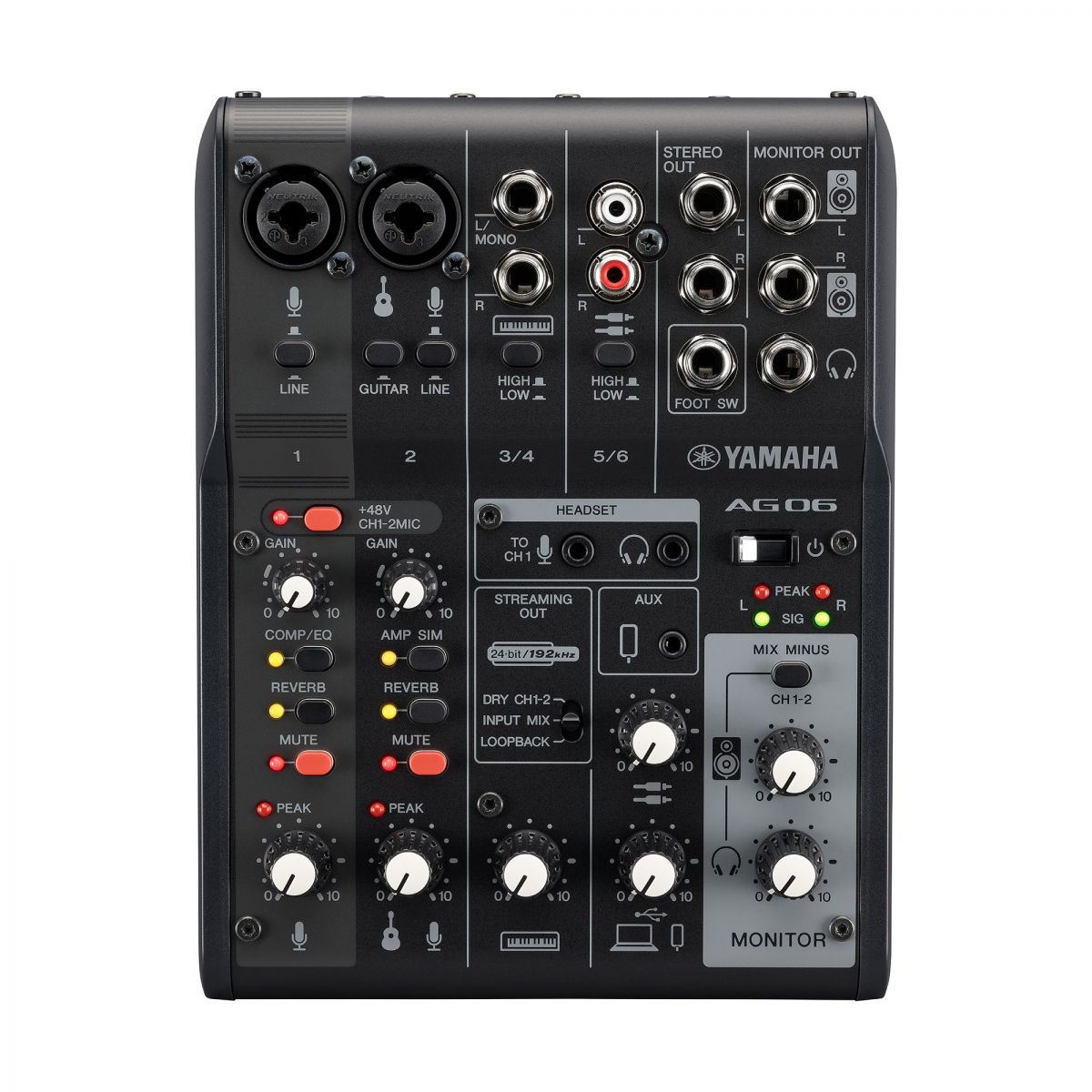

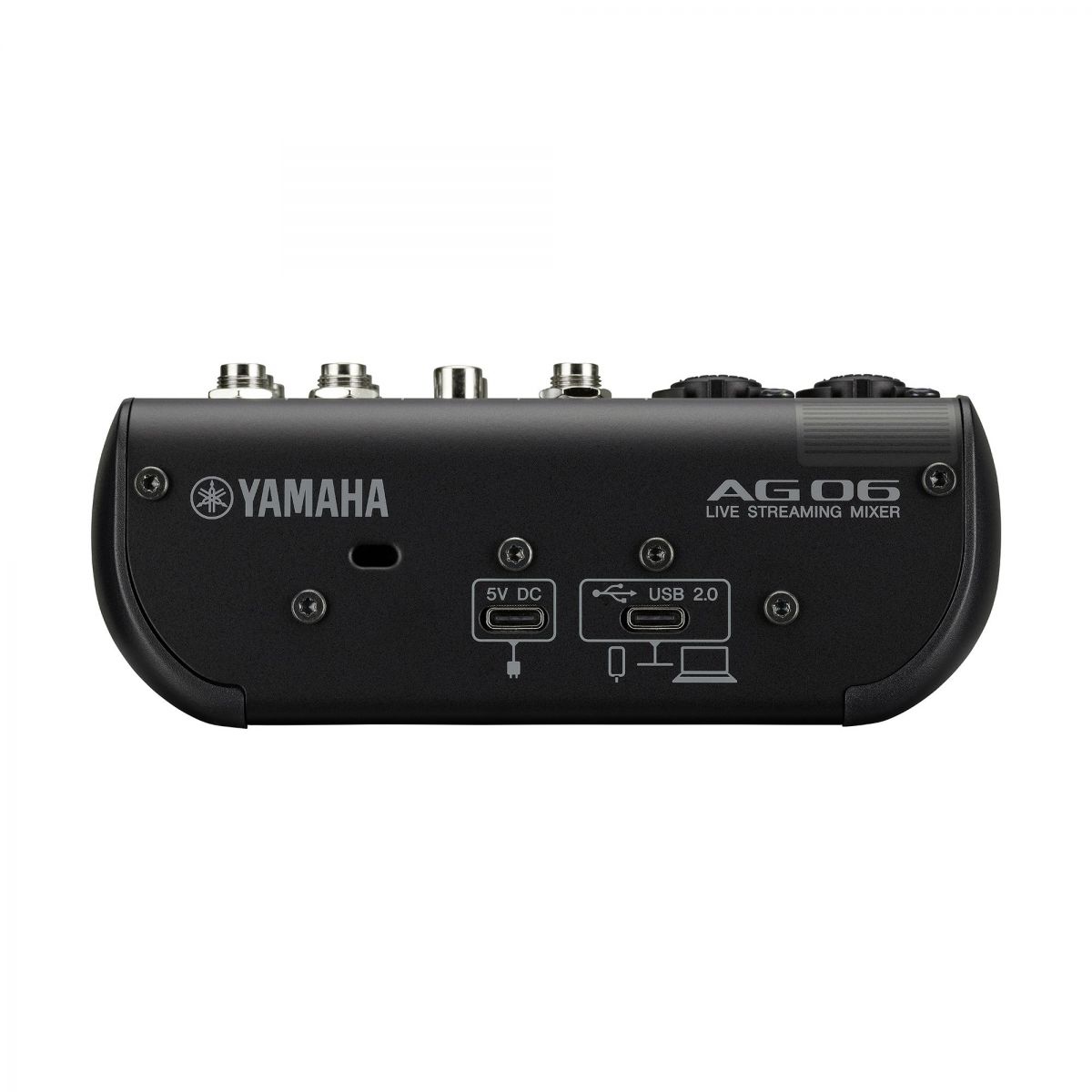

Yamaha AG06MK2 Specs
Form Factor Tabletop
Display 2 x Multi-Segment LED Meter
Channels of I/O Analog / Digital:
6 Input / 2 Output
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps
Built-In Microphone None
Input Level Adjustment 4 x Knob
Expansion Slots None
Signal Processing
Pad -26 dB
High-Pass Filter None
Connectivity
Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 1/4" TRS Line Input
2 x Stereo RCA TS Line Input
1 x 1/8" / 3.5 mm TRRS Headset Input
2 x 1/4" TRS Monitor Output
2 x 1/4" TRS Stereo Output
1 x 1/4" TRS Headphone Output
1 x 1/8" / 3.5 mm TRRS Headset Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB 1 x USB Type-C (USB 2.0)
USB (Non-Host) 1 x USB Type-C (Power Input)
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
THD+N 0.01% (+4 dBu Input)
Crosstalk -80 dB
Digital Audio
Sample Rates 44.1 / 48 kHz
Sample Rate Conversion None
Bit Depths Up to 24-Bit
Sync Sources None
Clocking Internal:
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows
macOS
iOS
Included Software None
Included Plug-Ins None
Mobile Device Compatibility iPad
iPhone
Required Hardware USB Port
Internet Connection Required for Software/Driver Download, Media Streaming
Power
Power Requirements AC/DC Power Adapter (Not Included), USB Bus Power
Power Consumption 4.5 W (Maximum)
Physical
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 7.9 x 6 x 2.5" / 201 x 152 x 63 mm
Weight 2.0 lb / 0.9 kg
