Sound Card Livestream Upod Pro
● 16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
● 2×2 analog I/O full duplex recording and playback
● ICON innovative unique mic preamp with individual gain control.
● Equipped with +48V & +5V phantom power.

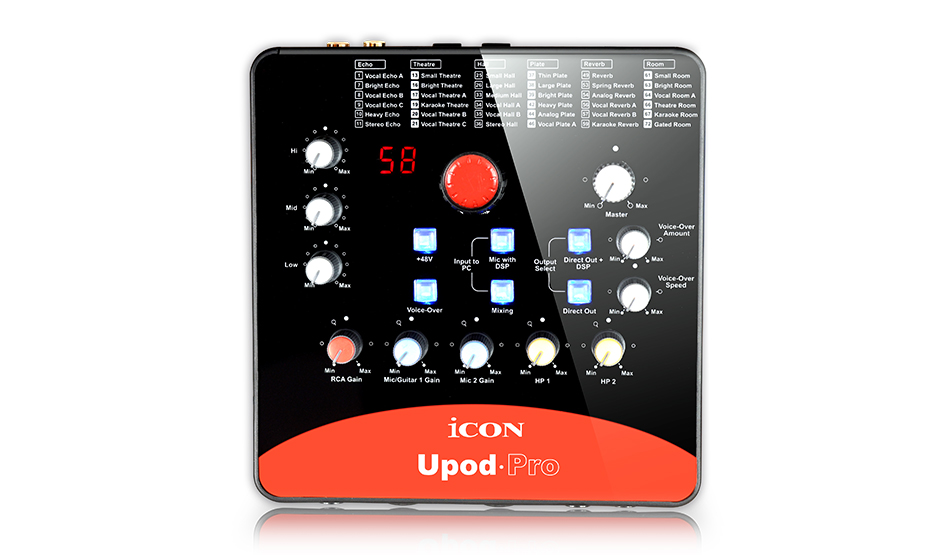

● Built-in ICON 72-DSP effect with control knob on the top panel.

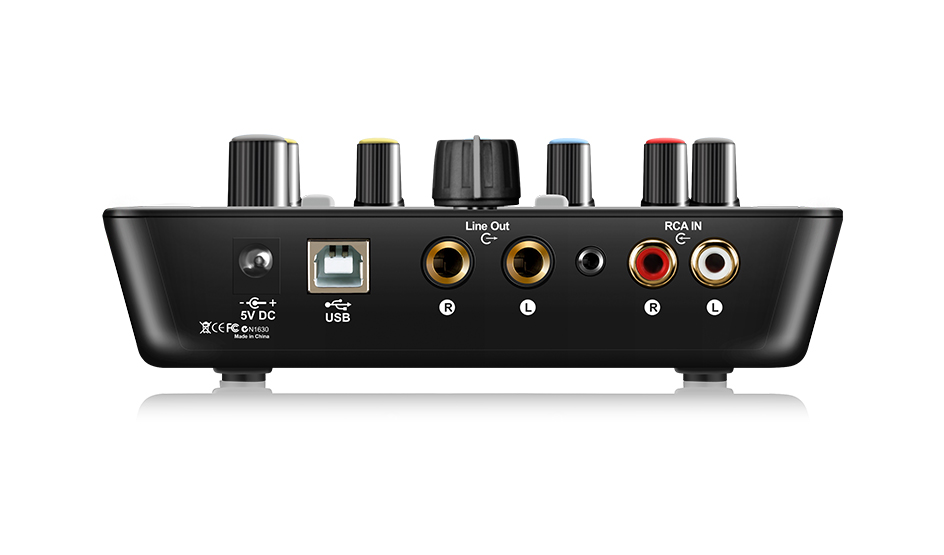

● 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
● Built-in stereo RCA input with individual gain control
● Functions as a stand-alone device with RCA input & DSP processing.
● Equipped with Hi, Mid & Low EQ adjustment knobs.
● Attenuator (Voice-Over) function button equipped for music fade-out automatically when mic signal is present.
● Two Voice-Over function control knobs for adjusting the BGM ramping speed and ducking amount.
● Buttons equipped for controlling mic signal (dry/wet) recording to PC.
● Buttons equipped for controlling monitoring signal (dry/wet).
● Master volume control on the top panel

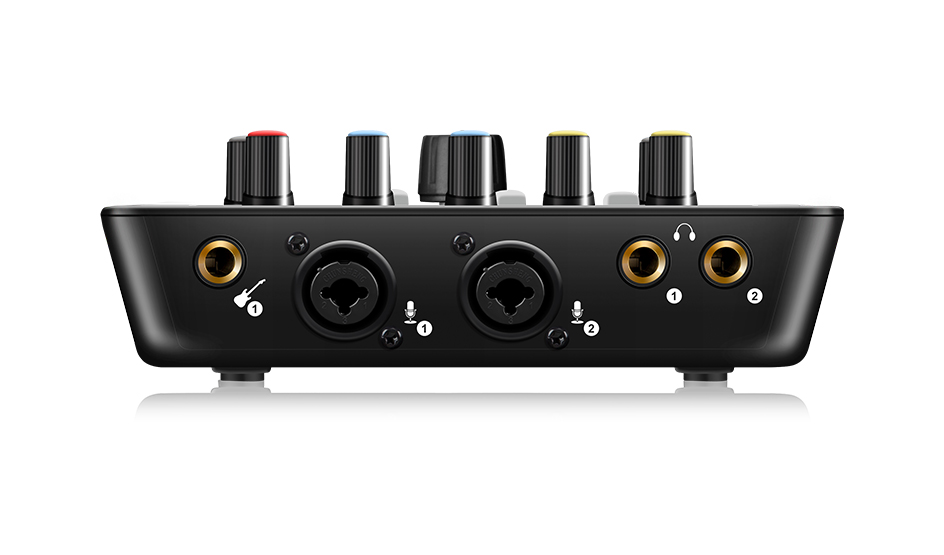

● 2 headphone outputs on 1/4” TRS jacks with individual volume control
● USB2.0 compatible
● Plug & play and no driver installation is needed.
● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit),Windows 10
● Full duplex, simultaneous record/playback
| Mic Input | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.0061% (-86dB) | |
| Crosstalk | -85dB @ 1kHz | |
| Input Impedance:Mic in | 1.8K Ohms, typical | |
| Adjustable Gain | +39dB | |
| Inst Input | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.0061% (-86dB | |
| Crosstalk | -75dB @ 1kHz | |
| Input Impedance | Inst in 500K Ohms, typical; | |
| Total Gain Range | +38dB | |
| Line Inputs (RCA IN, Unbalanced) | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.003% (-86dB) | |
| Crosstalk | -90dB @ 1kHz | |
| Input Impedance | 10K Ohms, typical | |
| Adjustable Gain | +8dB | |
| Line Outputs 1/2 (Stereo, Unbalanced) | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Dynamic Range | 90dB, A-weighted | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| THD+N | <0.003% (-86 dB) | |
| Crosstalk | -90dB @ 1kHz | |
| Nominal Output Level | -+2dBV, typical | |
| Headphone Outputs: (at Maximum Volume; Into 100 Ohm load) | ||
| Frequency Response | 22Hz to 20kHz (+/-0.2dB) | |
| Power into Ohms | 20 mW into 100 Ohms | |
| THD+N | <0.06% (-66dB) | |
| Signal-to-Noise Ratio | -90dB, A-weighted | |
| Max Output Level into 100 Ohms | +2.0dBV, typical | |
| Load Impedance | 32 to 600 Ohms | |
| Weight | 0.509 KG（1.12lb） | |
| Dimensions | 160mmx160mmx50mm | |
| Dimensions | 6.3"(L)x6.3"(W)x1.97"(H) | |
