Micro không dây phỏng vấn, máy quay Takstar SGC-200W R1
• Tailored for interview, video recording, suitable for camera/DSLR/cell phone, etc
• UHF transmission without the trouble of cable connection
• Automatic matching technology, easy operation, high anti-interference, about 80m operation range in open area
• Real time audio monitoring function to monitor the recording status
• Adjusting function of monitoring volume and recording volume to suit for different equipment application
• Low cut function to reduce ambient noise effectively; clearer picking up
• Dual channel independent output and combo output for convenient post processing
Note: only dual channel model has this function.
• Type-C power connector to link with external power supply
• Two Alkaline dry batteries last for about 10h operation
System Specification:
• Frequency Range:470~960 MHz (frequency band)
• Channel Quantity:mono/dual channel
• Frequency Band Quantity: 50 frequency bands (mono)
• Each of A/B has 25 frequency bands (dual channel)
• FM Width:30MHz
• Frequency Band Interval:600KHz
• Modulation:FM
• Mute Control:frequency guide
• Frequency Response:20Hz~18KHz
• Frequency Stability:±0.015%
• S/N Ratio:≥92dB A+(line out)
• Residual Noise: ≥-100dB A+(line out)
• Distortion:≤0.8% (at 1KHz)
• Operation Range:approximate 100m(open area) Cartridge:condenser omnidirectional

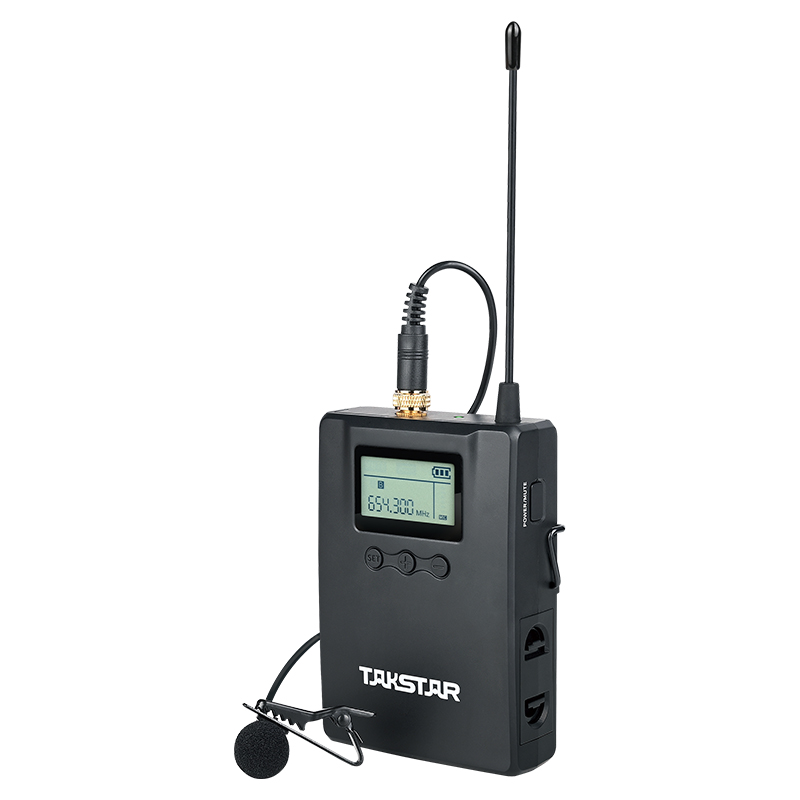

Transmitter:
• Microphone Input: 3.5mm
• Power Supply:2 AA batteries
• Power:≤10mW
• Low Cut:200Hz 5dB/Oct
• Operation Time: approximate 10h(based on the battery capacity)
• Dimension(LxWxH): 90x65x25mm
• Weight:approximate 83g

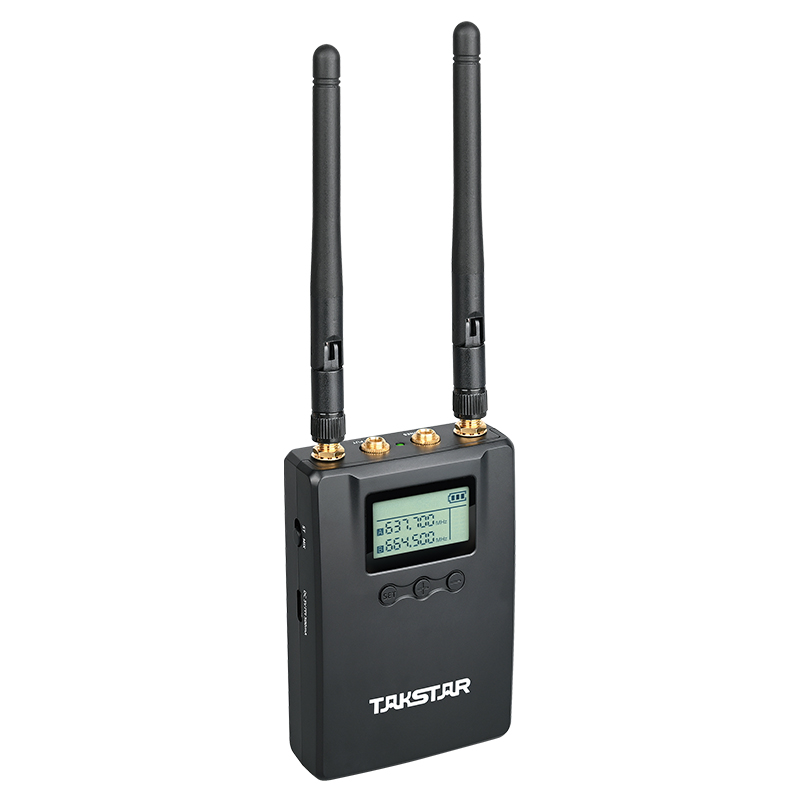

Receiver:
• Built-in Power Supply:2 AA batteries
• External Power Supply:Type C connector
• Antenna Connector:SMA/impedance 50Ohm
• Sensitivity:≤-80dBm (wired test)
• Audio Output:3.5mm line out +3.5mm headphone output
• Headphone Output Power: 25mW(RMS)@32Ω
• Operation Time: approximate 10h (mono)
8h (dual channel)
(based on the battery capacity)
• Dimension(LxWxH): 90x65x25mm
• Weight:approximate 96g
Trọn bộ gồm
- Receiver 1 pc
- Transmitter 1 pc(Dual Channel 2 pc)
- Lavalier microphone 1 pc(Dual Channel 2 pc)
- Mic clip 1 pc(Dual Channel 2 pc)
- Windscreen 1 pc(Dual Channel 2 pc)
- 3.5mm audio cable 1 pc
- 3.5mm to XLR audio cable 1 pc
- Cell phone conversion cable 1 pc
- AA battery 4 pcs(Dual Channel 6 pc)
- Antenna 1 pc(Dual Channel 2 pc)
- User manual 1 pc.
