Outline
- Type: Powered subwoofer with a line array speaker

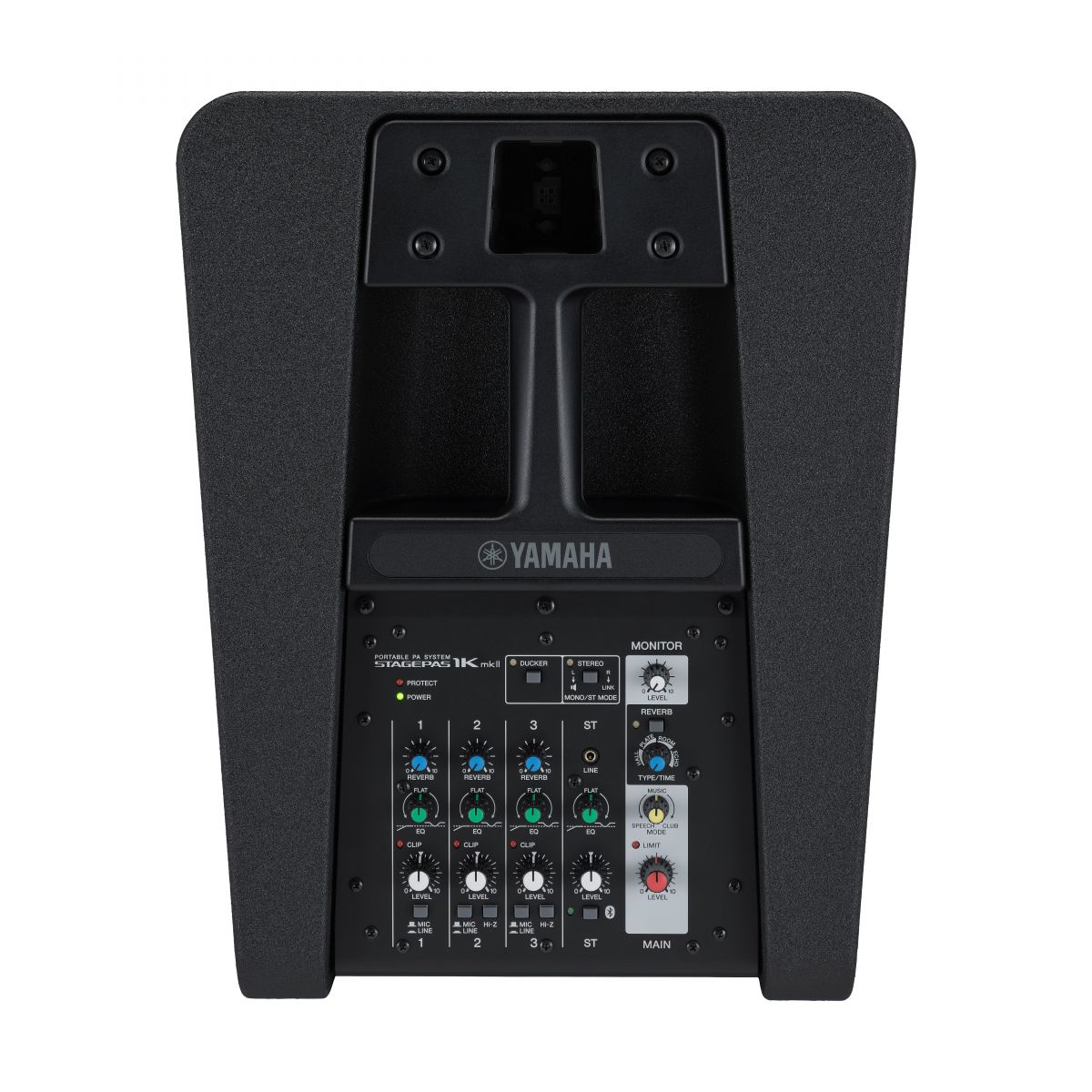

- Mixing capability:
- Mixing channels: 5 (Mono x3 + Stereo x1)
- Input channel functions: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
- Output channel functions: MODE (SPEECH/MUSIC/CLUB)
- Inputs Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
- Outputs: Link out x1, Monitior out x1
- Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
- Control and others: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
- On-board processors: DSP: SPX digital reverb (4 program, parameter control)
General specifications
- Speaker type : owered subwoofer: Bass-reflex type, Line array speaker: Enclosed
- Frequency range (-10dB): 37 Hz - 20 kHz
- Coverage area: H170゚ x V30゚
- Crossover: 240 Hz
- Maximum output level (1m; on axis): 125 dB SPL
- Components:
- LF: Powered subwoofer: 12” (30 cm) Cone
- HF: Line array speaker: 1.5” (3.8 cm) Cone x 10
- Amplifier class: Class-D
- Power rating: Dynamic - 1100 W
- Power consumption: 25 W (Idle), 91 W (1/8 power)
- Power requirements: Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
- Handle: Top of powered subwoofer x1

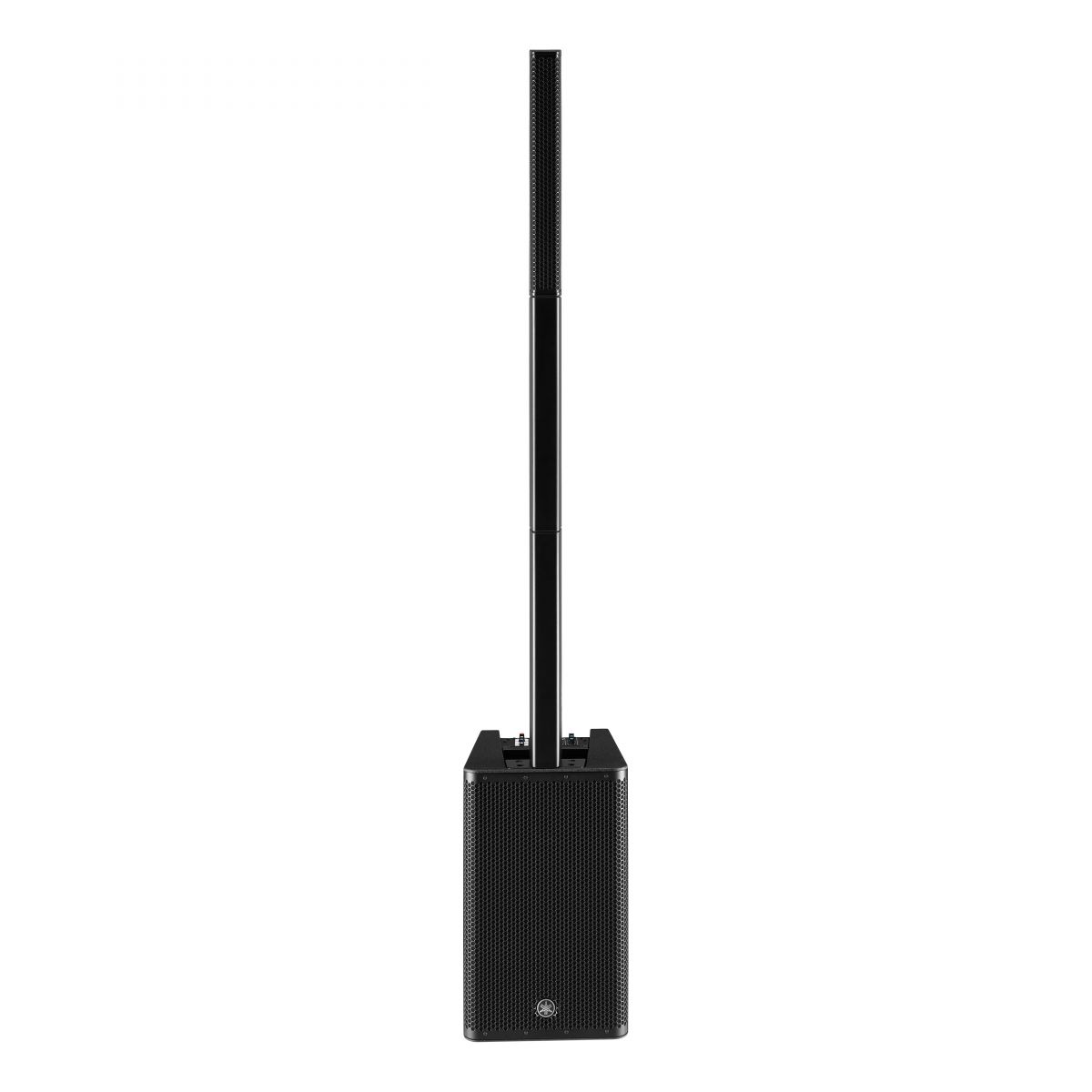

- Dimensions (W x H x D): System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
- Weight System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
- Accessories: Power cord x 1, Cover x 1
- Options: Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF)
- Đơn vị tính: 1 cái
- Xuất xứ: Indonesia
