Loa cột 3000 W QSC KC12

Sản phẩm

Loa cột 3000 W QSC KC12

Mã sp : Loa cột 3000 W QSC KC12

Số lượng :

Quý khách vui lòng click các nội dung dưới đây để tham khảo các chính sách bán hàng của chúng tôi:

Giá bán: 65.000.000 Đ (giá tham khảo)

(Giá chưa bao gồm thuế 10% VAT)

Đặt hàng

Hotline: 0908677003

Mô tả sản phẩm
Thông số kỹ thuật

Powered 3-Way Column loudspeaker System

https://youtu.be/w1y-CxnypAE?list=PLNJuukRtlTJ-a5fU4KEGNDg2DDYGhkFv9

Key Features

3-way loudspeaker system featuring a 12-inch (305 mm) subwoofer, two high-excursion 4-inch (102 mm) midrange drivers and a 1-inch (25.4 mm) HF compression driver combined with the proprietary QSC LEAF™ waveguide.
Very high, undistorted 132 dB maximum peak SPL.
Energy-efficient Class D amplification featuring 3000 W of total peak power with Power Factor Correction and extremely low AC consumption
Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (145° H x 35° V) and excellent throw.
Two combo XLR inputs (Mic/Line/Hi-Z and Mic/Line/+48 V), with independent, assignable Factory Presets for each input, perfect for small events where two microphones are needed for different use.
Multi-function digital display for control and selection of loudspeaker functions including Global Parametric EQ, Subwoofer level, Presets and Scenes, Bluetooth^® configuration, Delay (200 ms) or Reverb.
Bluetooth Audio featuring True Wireless Stereo (TWS), which ensures low-latency pairing between music source and both left and right loudspeakers, simultaneously.
Control your KC12, CB10 and all QSC Bluetooth-equipped loudspeakers right from your phone. The QSC Loudspeaker Control app gives you instant access to essential audio controls and advanced capabilities.
Configured with or without its column pole, the system is ideally suited for direct deployments on a floor, stage or riser.
Available in black and white finishes.
Included Tote Bag for the transportation/storage of the top unit (KC12T) and the column pole (KC-SP32)

Specifications

Model	KC12
Configuration	Active 3-Way Column Loudspeaker System
LF Transducer	305 mm (12-inch), cone
MF Transducer	2 x 102 mm (4-inch), cone
HF Transducer	25.4 mm (1-inch), compression driver
Frequency Response (-6 dB)	45 Hz - 18.5 kHz
Frequency Range (-10 dB)	40 Hz - 20 kHz
Nominal Coverage Angle	145° H x 35° V
Maximum Rated SPL¹(peak)	132 dB @ 1 m
Amplification (peak)	Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
Cooling	Low noise, variable speed fan
Controls	1 x Rotary encoder and
	2 x Push buttons
	3 x Rotary level potentiometers
	1 x AC power switch
Indicators	Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)
	2 × Power LEDs (blue), Subwoofer front and rear
	1 x Standby LED (yellow)
	1 x Limiter LED (red)
	3 × Input Signal/Clip LEDs (Signal: green / Clipping: red)
	Input A: Mic/Line with assignable Hi-Z selected LED
	Input B: Mic/Line with assignable +48 V selected LED
	Input C: Bluetooth selected LED

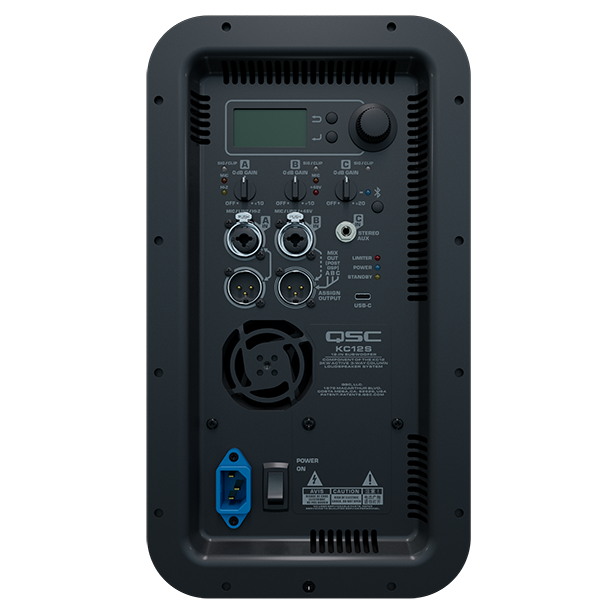

Connectors	2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V)
	2 × XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)
	1 × 3.5 mm TRS (Stereo Input)
	1 x USB-C (Output: 5V/3A)
	1 × locking IEC power connector
AC Power Input	Universal power supply, 100-240 VAC, 50/60 Hz
AC Power Consumption²	1100-240 VAC ~ 3.7-1.8 A

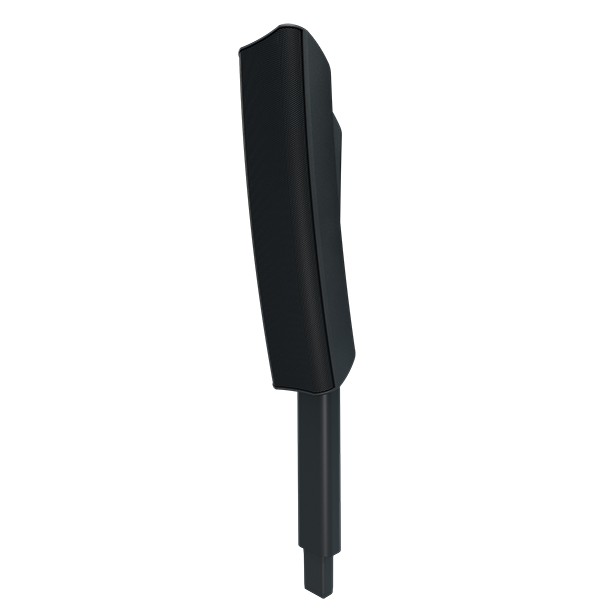

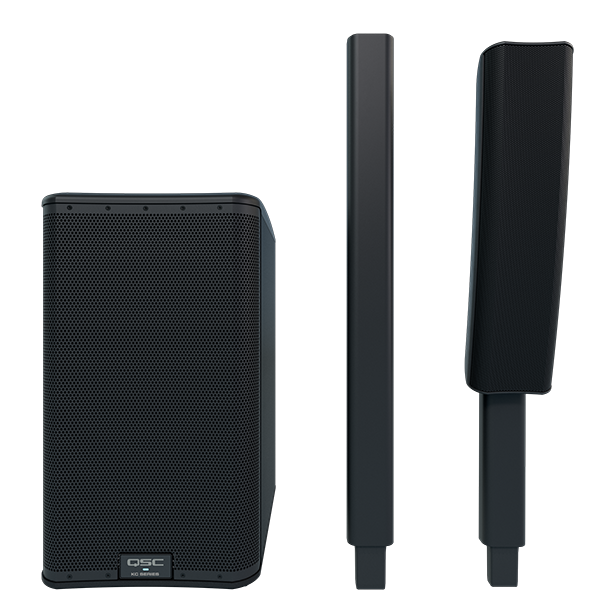

System Components	KC12T 145° Dual 4-inch Column System Loudspeaker
	KC-SP32 32-inch Column System Pole
	KC12S 3kW Active12-inch Column System Subwoofer
Enclosure Materials	Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Color	Black (RAL 9011), White (RAL 9010)
Grille	Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)

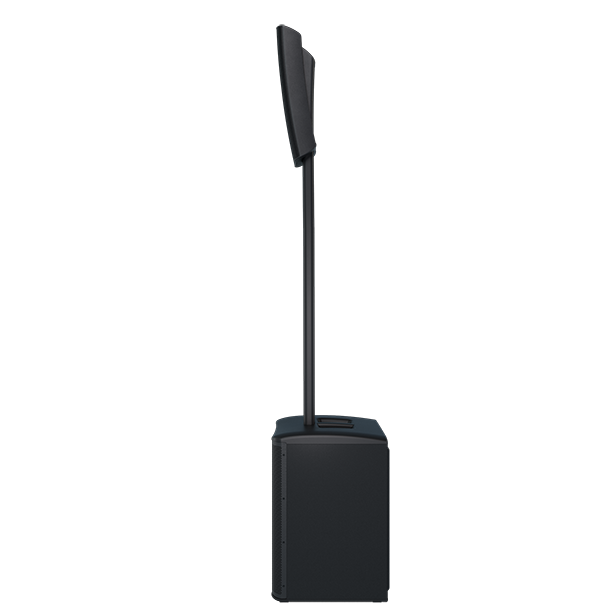

System Height	Tall Deployment: 2270 mm / 89.4 in (with KC-SP32)

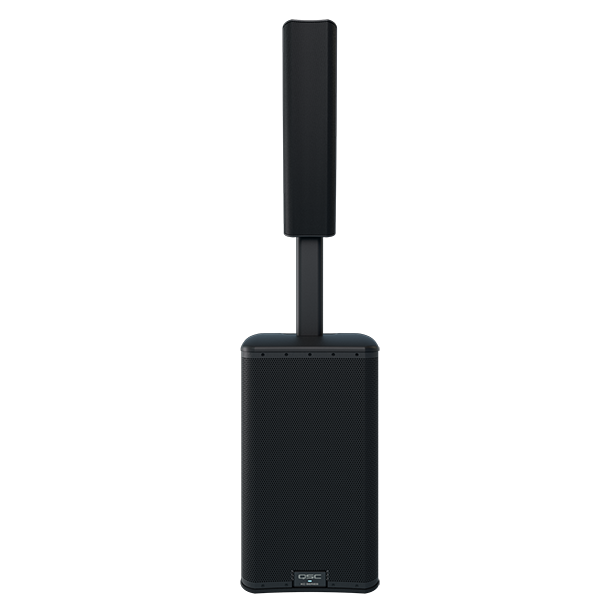

System Height	Short Deployment: 1463 mm / 57.6 in (without KC-SP32)
Dimensions (H x W x D)	KC12T: 890 × 141 × 158 mm / 35 × 5.6 × 6.2 in
	KC-SP32: 881 × 74 × 46 mm / 34.7 × 3 × 1.8 in
	KC12S: 655 × 357 × 455 mm / 25.8 × 14 × 18 in
Net Weight	Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32)
	KC12T: 4.0 kg / 8.9 lb
	KC-SP32: 1.3 kg / 2.9 lb
	KC12S: 22.0 kg / 48.5 lb
Supplied Accessory	KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
Optional Accessory	KC12 CVR: Cover for the KC12S Subwoofer
Regulatory	CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
