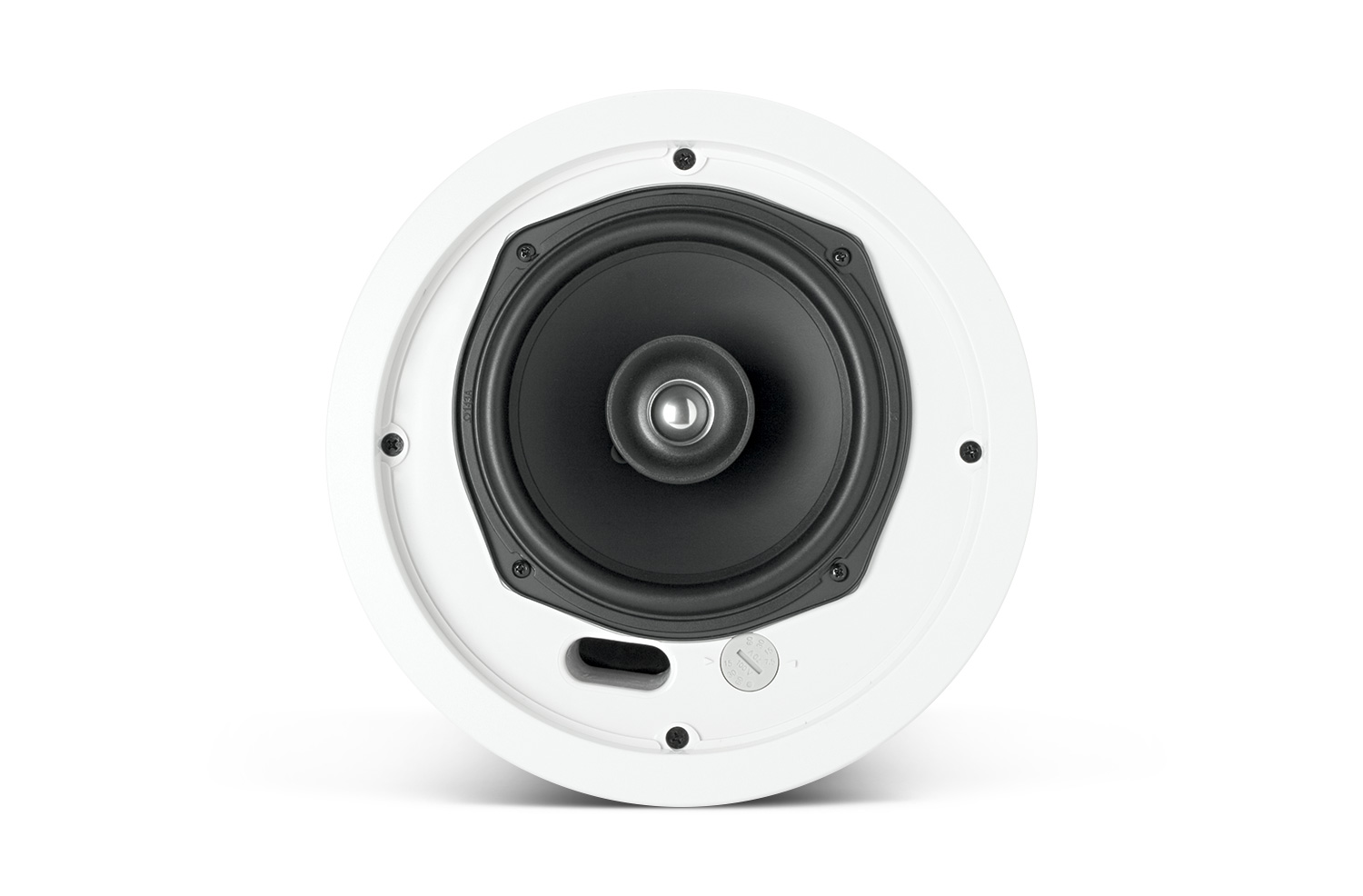

Loa âm trần 75W 16 Ohm Control 26C
6.5" Ceiling Loudspeaker Transducer Assembly
6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.
Features
Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
High power, wide frequency response and low distortion for high sound level capability.
JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability.
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
| Frequency Range | 75 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (150W peak), 100 hrs |
| Nominal Sensitivity | 89 dB, 1m/1 W |
| Coverage Angle | 110° conical |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 KHz |
| Impedance | 16 ohms |
| Maximum SPL (1m) | 107 dB (low-impedance, 113 dB peak) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
| Terminations | Removable 4-pin locking connector with screw-down terminals. |
| Dimensions (H x Dia) | 210 mm x 252 mm (8.3 in x 9.9 in) |
| Net Weight (each) | 2.7 kg (6 lbs) |
| Shipping Weight (pair) | 6.4 kg (15 lbs) |
| Sensitivity | 89 dB (100 Hz - 10 kHz) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 220 mm (8.75 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
