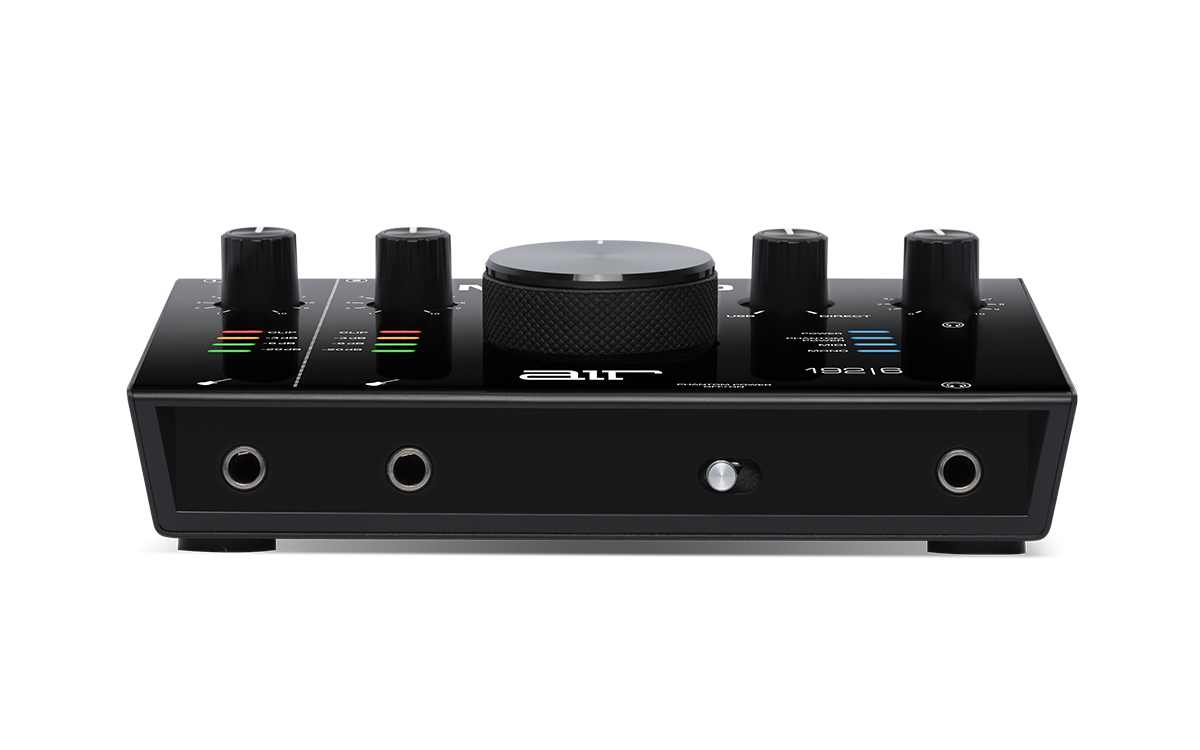

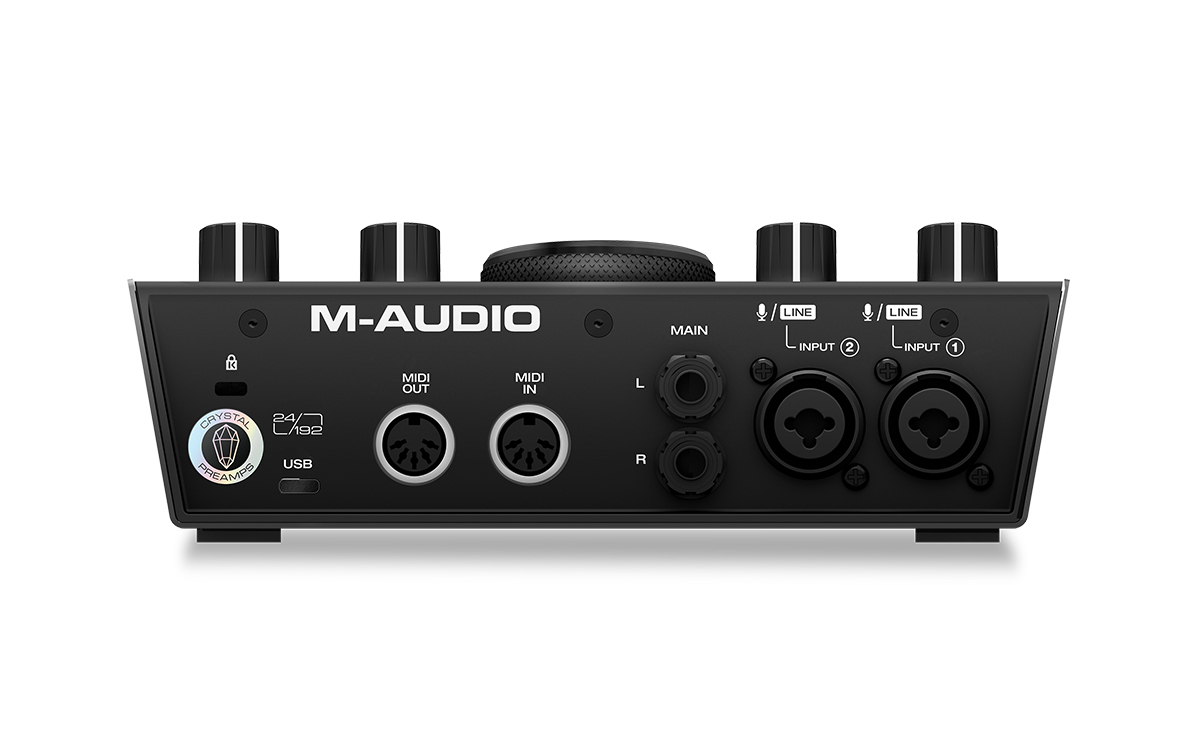

Soundcard M-audio AIR 192|6
2-In/2-Out 24/192 USB Audio/MIDI Interface
Key Features
24-bit/192kHz resolution for professional recording and monitoring
Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
VU LED meters for dialing in the perfect level
Flexible inputs: (2) XLR+¼” TRS combo or ¼” instrument inputs
Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
5-pin MIDI input/output for connecting virtually any external MIDI gear
Stereo ¼” outs; ¼” headphone out with independent level control
Rugged metal chassis; large central control for easy volume adjustment
USB/Direct knob for balancing between the input signal and the computer signal
*Round trip latency is dependent on buffer settings, and computer hardware.
What’s In The Box
AIR 192|6
USB-C-to-USB-C Cable
USB-C-to-USB-A Cable
Software Download Cards
User Guide
Safety and Warranty Manual
https://m-audio.com/assets/documents/AIR192-6-UserGuide-v1.1.pdf
| Mic Inputs 1-2 (balanced XLR) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.1 dB) |
| DYNAMIC RANGE | 104 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 104 dB (+1.0 dBu, A-weighted) |
| THD+N | 0.002% |
| PREAMP EIN | -128 dBu (max gain, 150 Ω source, A-weighted) |
| MAX INPUT LEVEL | +1.5 dBu |
| GAIN RANGE | 55 dB |
| Line Input 1-2 (balanced 1/4" [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| SIGNAL-TO-NOISE RATIO | 101 dB (1 kHz, +4 dBu, A-weighted) |
| THD+N | 0.002% |
| MAX INPUT LEVEL | 16 dBu |
| GAIN RANGE | 55 dB |
| Inst Input 1-2 (unbalanced 1/4" [6.35 mm] TS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| DYNAMIC RANGE | 100 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 98 dB (+ 4 dBu, A-weighted) |
| THD+N | 0.005% |
| MAX INPUT LEVEL | 6 dBu |
| INPUT IMPEDANCE | 1 MΩ |
| GAIN RANGE | 24 dB |
| Main Outputs, L and R (balanced 1/4" [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO | 106 dB (A-weighted) |
| THD+N | 0.005% |
| MAX OUTPUT LEVEL | +13 dBu (1 kHz, -1 dBFS) |
| Headphone Output (1/4” [6.35 mm] TRS) | |
| THD+N | 0.005% |
| OUTPUT IMPEDANCE | 10 Ω |
| General | |
| POWER | USB-bus-powered |
| DIMENSIONS (WIDTH X DEPTH X HEIGHT) | 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm) |
| WEIGHT | 2.1 lbs. 0.95 kg |
