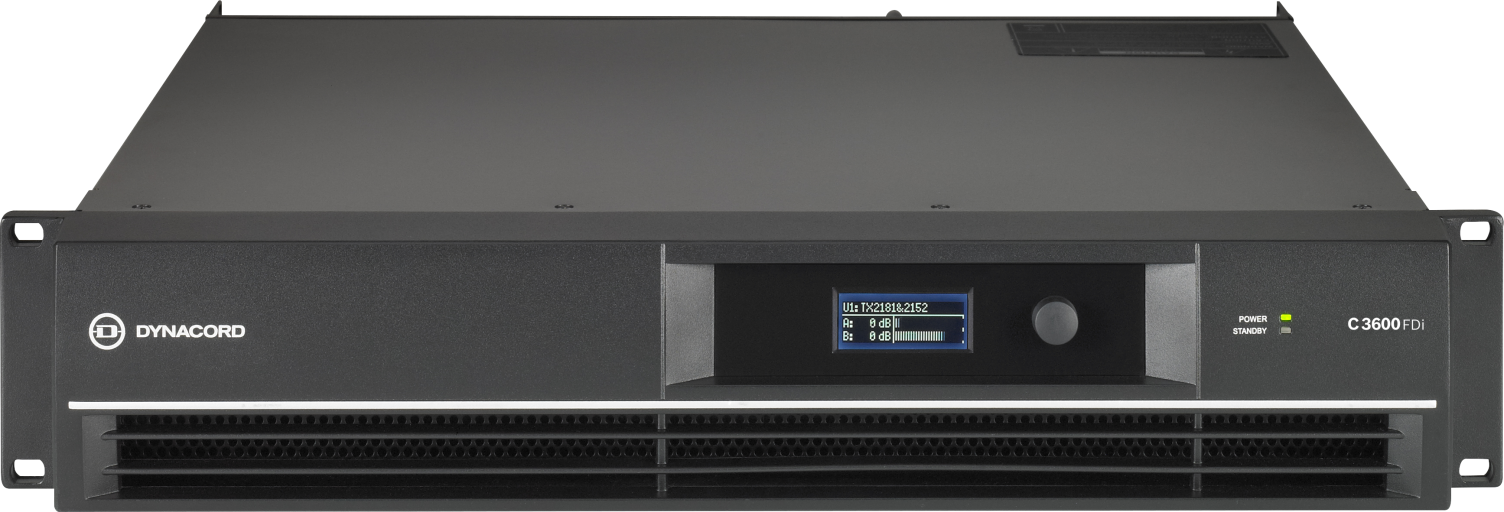

C3600FDi
DSP 2 x 1800 w power amplifier for fixed install applications
Professional DSP amplifier for live and mobile application
Fully integrated professional speaker processing with FIR drive technology
Market-leading acoustic performance and rock solid reliability
Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

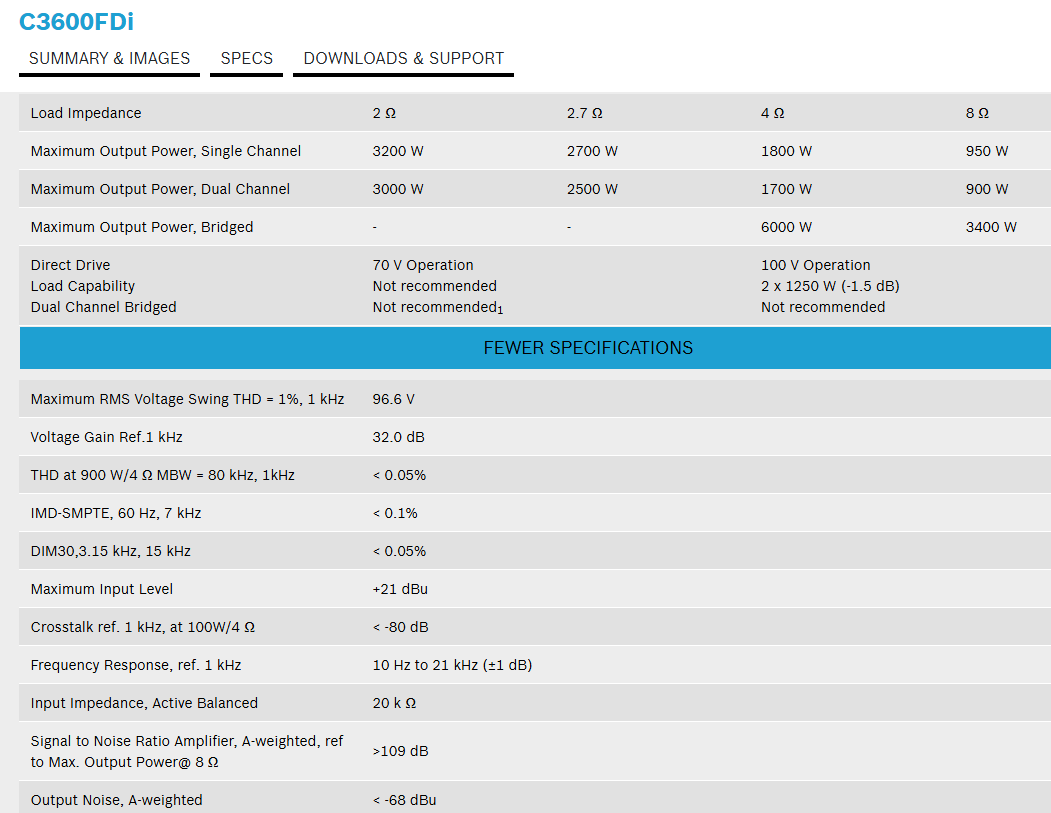

SPECIFICATIONS
- Load Impedance 2 Ω 2.7 Ω 4 Ω 8 Ω
- Maximum Output Power, Single Channel 3200 W 2700 W 1800 W 950 W
- Maximum Output Power, Dual Channel 3000 W 2500 W 1700 W 900 W
- Maximum Output Power, Bridged - - 6000 W 3400 W
- Direct Drive
- Load Capability
- Dual Channel Bridged 70 V Operation
- Not recommended
- Not recommended1 100 V Operation
- 2 x 1250 W (-1.5 dB)
- Not recommended
