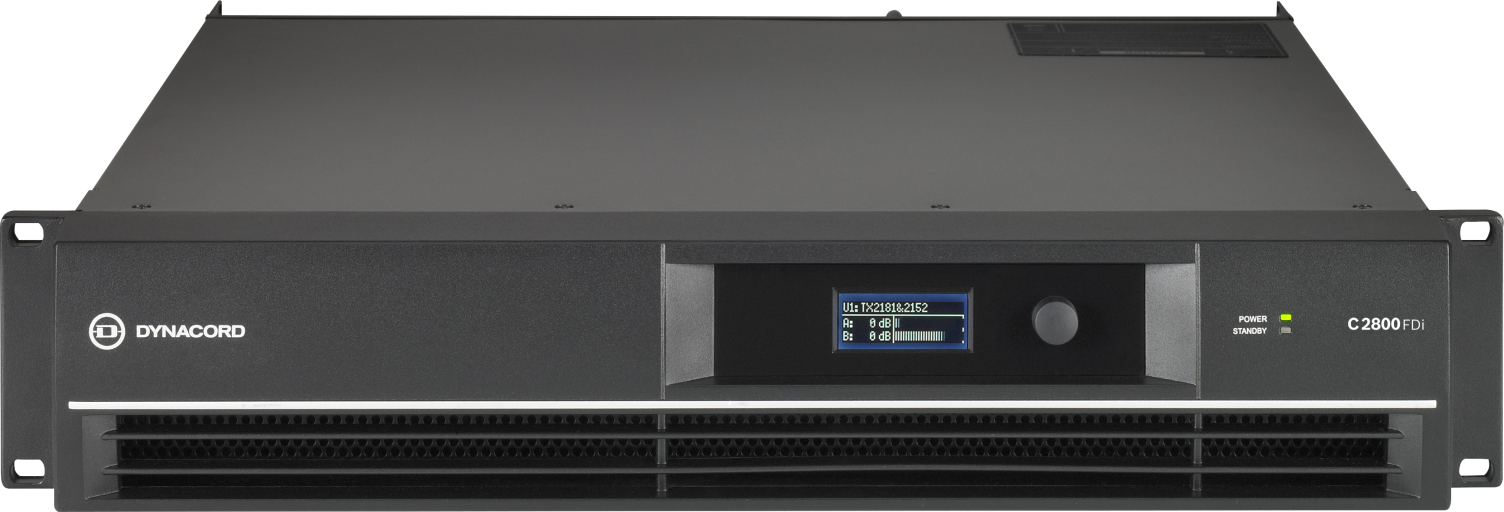

C2800FDi
DSP 2 x 1400 w power amplifier for fixed install applications
Professional DSP amplifier for live and mobile application
Fully integrated professional speaker processing with FIR drive technology
Market-leading acoustic performance and rock solid reliability
Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

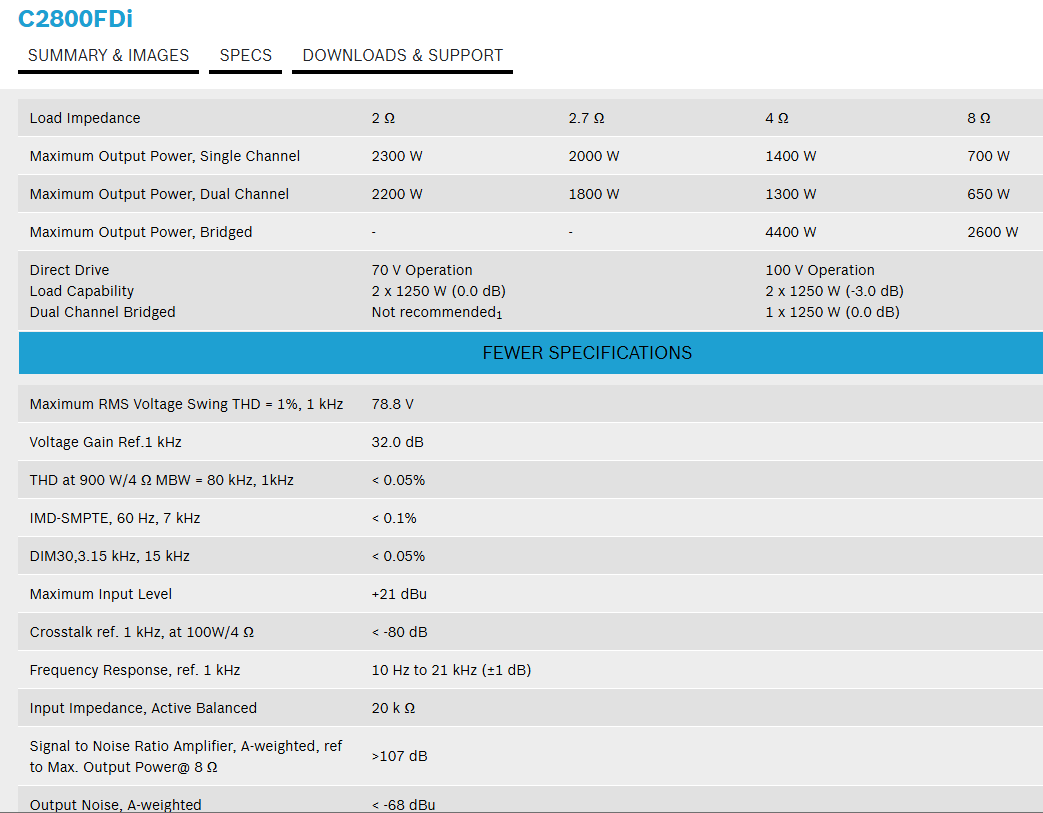

SPECIFICATIONS
- Load Impedance 2 Ω 2.7 Ω 4 Ω 8 Ω
- Maximum Output Power, Single Channel 2300 W 2000 W 1400 W 700 W
- Maximum Output Power, Dual Channel 2200 W 1800 W 1300 W 650 W
- Maximum Output Power, Bridged - - 4400 W 2600 W
- Direct Drive
- Load Capability
- Dual Channel Bridged 70 V Operation
- 2 x 1250 W (0.0 dB)
- Not recommended1 100 V Operation
- 2 x 1250 W (-3.0 dB)
- 1 x 1250 W (0.0 dB)
