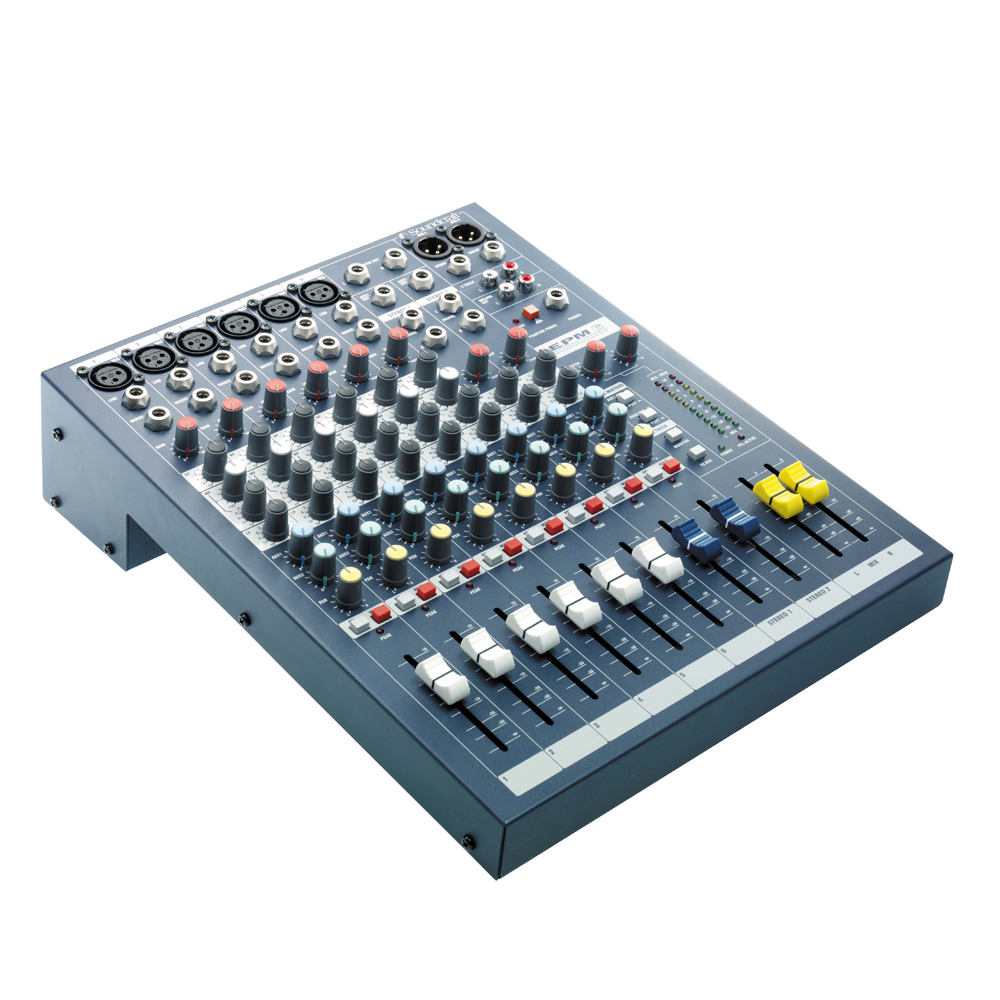

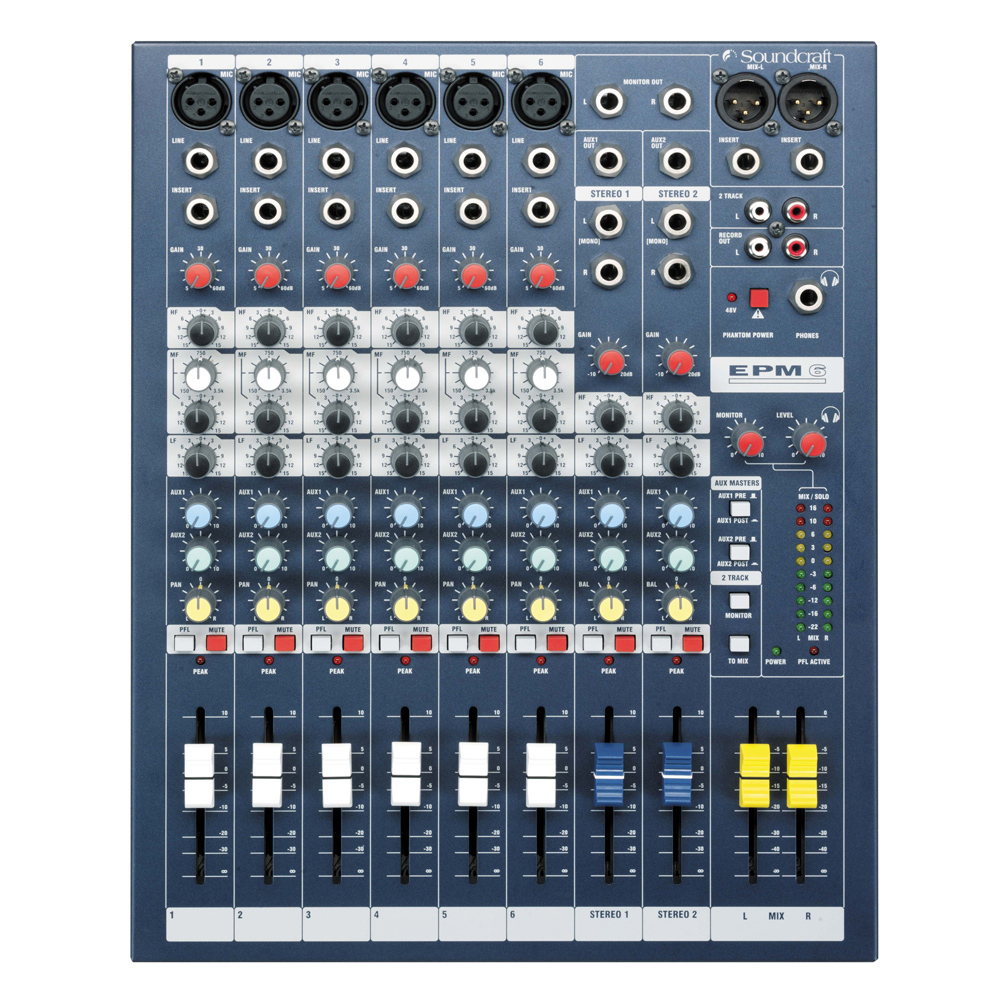

EPM 6 Soundcraft mixer 6 line
Low-cost high-performance mixers
Features
· Frame sizes 6+2
· 2 configurable auxiliary buses
· XLR-type and ¼” metal jack connector sockets
· RCA phono stereo playback inputs and record outputs
· 3-band EQ with a swept mid on mono inputs
· 2-band EQ on stereo inputs
· TRS insert sockets and inserts on all mono inputs and mix output
· Ten-segment LED output metering
· Intuitive and comprehensive solo system
· Headphone output
· Easily rack mountable
Specifications |
Frequency Response |
Mic/Line input to any output |
20Hz to 20kHz +/-0.5dB |
THD & Noise |
|
<0.007% -30dBu Input routed to Mix, Mic gain 30dB |
Mic Input EIN |
22Hz-22kHz unweighted |
-128dBu (150Ω source) |
Bus Noise |
Mix at Max, Faders down |
<-85dBu |
Crosstalk typically @1kHz |
Channel Mute |
>96dB |
Fader cut-off (rel +10 mark) |
>96dB |
|
Aux Send pot offness |
>86dB |
|
Input & Output |
Microphone Input |
2.4kΩ |
Impedances |
Line Input |
11kΩ |
Stereo Input |
100kΩ |
|
Outputs |
75Ω |
|
Input & Output |
Mic/Line input Maximum Level |
+17dBu |
Levels |
Line input Maximum Level |
+30dBu |
Stereo Input Maximum Level |
+30dBu |
|
Mix Output Maximum level |
+20dBu |
|
Headphones (at 200Ω ) |
300mW |
|
EQ (Mono Input) |
HF |
12kHz, ±15dB, shelving |
Mid |
150Hz - 3.5kHz, ±15dB, Q=1.5 |
|
LF |
60Hz, ±15dB, shelving |
|
Metering |
|
12-segment LED bargraphs for Mix L&R outputs |
Operating conditions |
Temperature Range |
- 10ºC to +30ºC |
Relative Humidity |
0% to 80% |
|
Power Supply |
|
Integral lightweight switched-mode PSU |
AC mains supply |
|
85V-270V AC, 50/60Hz universal input |
Power consumption |
|
Less than 20W |
Dimensions |
|
280mm(11”)W, 90.5mm(3.56”)H, 362mm(14.25”)D |
Weight |
|
5kg(11.02lbs) |
