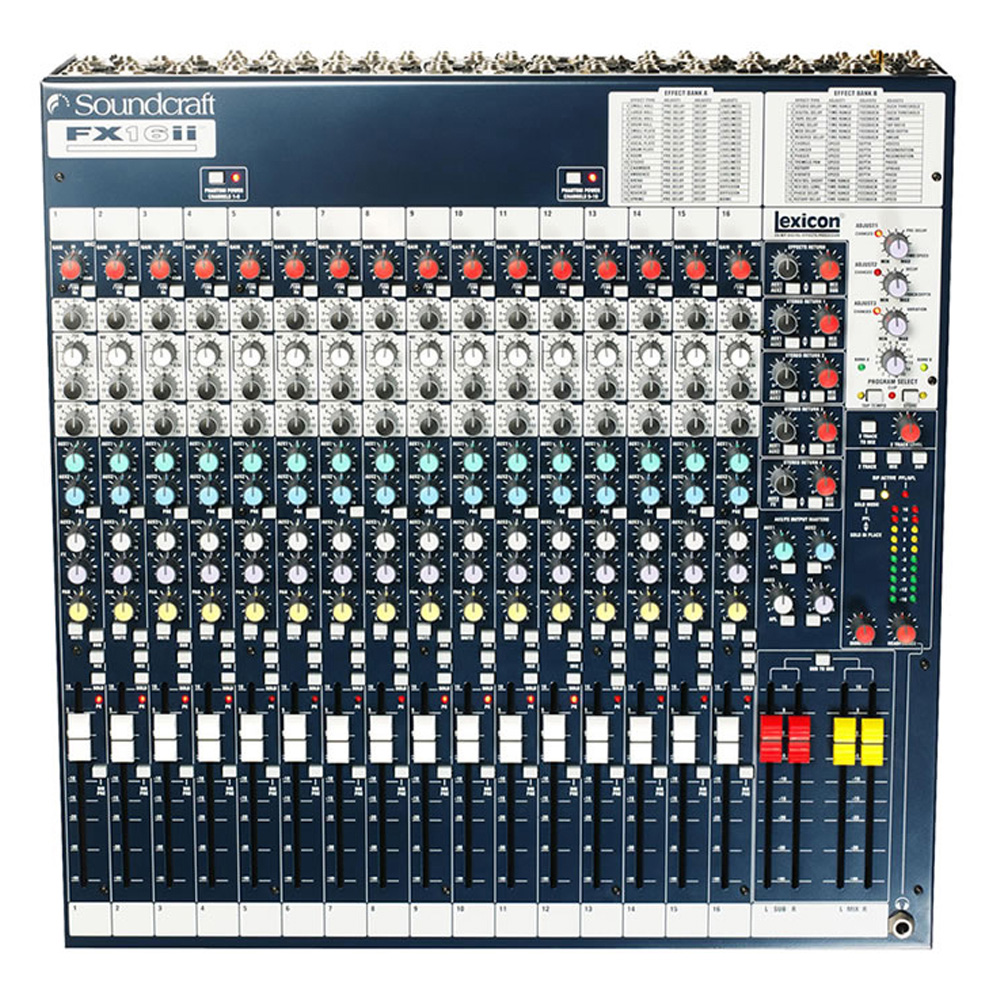

FX16ii, Mixer Soundcarft
A classic compact recording/live Lexicon® effects mixer
· 26 inputs
· 16 mono microphone channels.
· 4 stereo returns
· 4-bus architecture, with sub-group routable to mix
· Built-in 24 bit Lexicon digital effects processor
· 32 FX settings
· Tap Tempo
· 3 FX parameter adjust rotaries
· User FX settings store function
· Direct outputs for multi-track recording individually switch-able for pre-post-fade operation
· Inserts on all mono channels
· Inserts on stereo mix output
· Classic Soundcraft 3-band EQ with swept mid-band
· Stereo 18dB/octave 100Hz high-pass filter
· Dual global +48V phantom power split channels 1-8 and 9-16
· Channel Mute control
· 10-segment tri-coloured metering
· Two sub-group outputs
· Separate mono sum output
· Integral universal power supply
Specifications |
Frequency Response |
Mic / Line Input to any Output |
+/-1dB, 20Hz – 20kHz |
THD |
Mic Sensitivity -30dBu, +14dBu @ Mix output |
< 0.09% @ 1kHz |
Noise |
Mic Input E.I.N. (maximum gain) |
-127dBu (150Ω source) |
Aux, Mix and Masters (@ 0dB, faders down) |
< -84dBu |
|
Crosstalk (@ 1kHz) |
Channel Mute |
> 96dB |
Fader Cut-off (rel +10 mark) |
> 96dB |
|
Aux Send Pots Offness |
> 86dB |
|
EQ (Mono inputs) |
HF |
12kHz, +/-15dB |
MF (swept): |
150Hz – 3.5kHz, +/-15dB |
|
LF |
80Hz, +/-15dB |
|
Q |
1.5 |
|
Power Consumption |
|
Less than 40W |
Operating Conditions |
Temperature Range |
5°C to 40°C |
Input & Output Levels |
Mic Input |
+ 15dBu max |
Line Input |
+ 30dBu max |
|
Stereo Input |
+ 30dBu max |
|
Mix Output |
+ 20dBu max |
|
Headphones (@150 Ω ) |
300mW |
|
Input & Output Impedances |
Mic Input |
2kΩ |
Line Input |
10kΩ |
|
Stereo Input |
65kΩ (stereo), 35kΩ (mono) |
|
Outputs |
150kΩ (balanced), 75kΩ (unbalanced) |
|
Net Weight |
|
8.5 kg (19.0 lbs) |
Unit Dimensions (W × H × D) |
|
481mm (19") x 148mm (5.8") x 442mm (17.4") |
