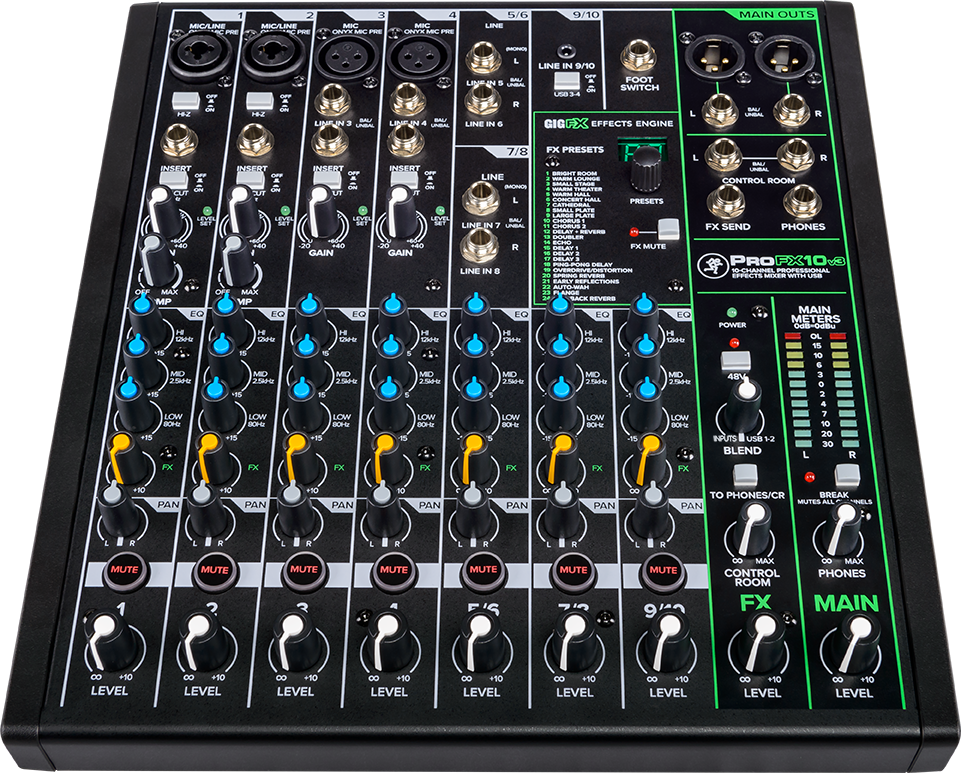

Mixer Mackie ProFX10v3
Mackie ProFX10v3 10-channel Mixer with USB and Effects
Type: Analog Mixer with USB Interface
Channels: 10 (4 x mono, 3 x stereo)
Computer Connectivity: USB (2 x 4)
A/D Resolution: 24-bit/192kHz
Faders: Rotary Pots
Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 2 x XLR (mic)
Phantom Power: Yes
Inputs - Line: 2 x 1/4", 4 x 1/4" (2 x stereo), 1 x 1/8" (stereo)
Outputs - Main: 2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
Aux Sends: 1 x FX Send (post)
Send/Return I/O: 1 x 1/4" (FX send)
Inserts: 4 x 1/4" (channel)
Headphones: 1 x 1/4"
USB: 1 x Type B
Other I/O: 1 x 1/4" (footswitch)
EQ Bands: 3-band EQ, 100Hz Low-cut Filter
Signal Processing: 2 x Channel Compressors
Effects: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
Software: Pro Tools First, Waveform OEM DAW, Additional Plug-in packages available
Power Source: 12V DC power supply (included)
Height: 3.3"
Width: 11.9"
Depth: 10.7"
Weight: 4.9 lbs.
