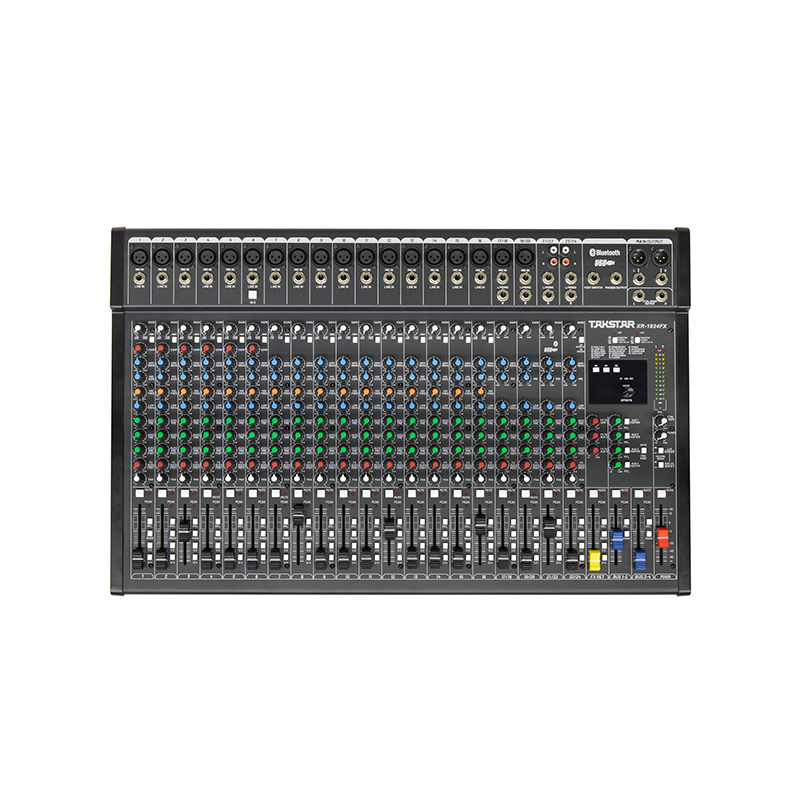

Mixer 18 line Takstar XR-1824FX
• Robust metal housing
• Professional DSP effector with 16 effects available
• 10/18CH XLR mic inputs, 4CH bus outputs, 6CH with built-in compressor; separate stereo pan
control on each channel
• Two stereo channels capable of direct routing to L/R
• Bluetooth & USB-A MP3 playback, stereo USB-B audio input & output
• Low-noise preamp + 48V phantom power
• 3-band equalizer on each channel for treble/mid-range/bass adjustment
• Studio quality headphone output
• 60mm high precision faders
MONO INPUT
• MIC IN: 10/18CH Bal XLR
• Frequency Response: 20 Hz - 20 kHz, +/-1 dB
• Distortion (THD+N): <0.003% at +0 dB, 20 Hz-20 kHz
• Sensitivity: 0 dB to -50 dB
• Max Input Level: +20 dBu
• MIC IN Impedance: 14 kΩ, unbal
• Phantom Power: +48V
• Low Cut: 80 Hz
• LINE IN: 8/16CH Bal TRS
• Frequency Response: 20 Hz - 20 kHz, +/-1 dB
• Distortion (THD+N): <0.003% at +0 dB, 20 Hz-20 kHz
• Sensitivity: 20 dB to -30 dB
• Max Input Level: +40 dBu
• LINE IN Impedance: 21 kΩ, unbal
STEREO INPUT
• LINE IN: 4 pairs of Bal TRS + 2 pairs of Unbal RCA
• Frequency Response: 20 Hz - 20 kHz, +/-1 dB
• Distortion (THD+N): <0.003% at +0 dB, 20 Hz-20 kHz
• Sensitivity: 20 dB to -30 dB
• LINE IN Impedance: 15 kΩ, unbal
MONO EQ
• HIGH: +/-15 dB＠10 kHz Shelving
• MID: +/-15 dB＠Freq.sel. from 100Hz to 8kHz-Bell
• LOW: +/-15 dB＠100 Hz Shelving
DSP
• DSP: 20/27 bit digital signal
• A/D & D/A Converter: 24 bit
• FX Type: 4 algorithms: reverb, chorus, delay, flanger - 16 presets
• Foot Switch: TS jack (for effect return mute and unmute)
STEREO EQ
• HIGH: +/-15 dB ＠ 10 kHz Shelving
• MID: +/-15 dB ＠ 1,250 kHz Bell
• LOW: +/-15 dB ＠ 100 Hz Shelving

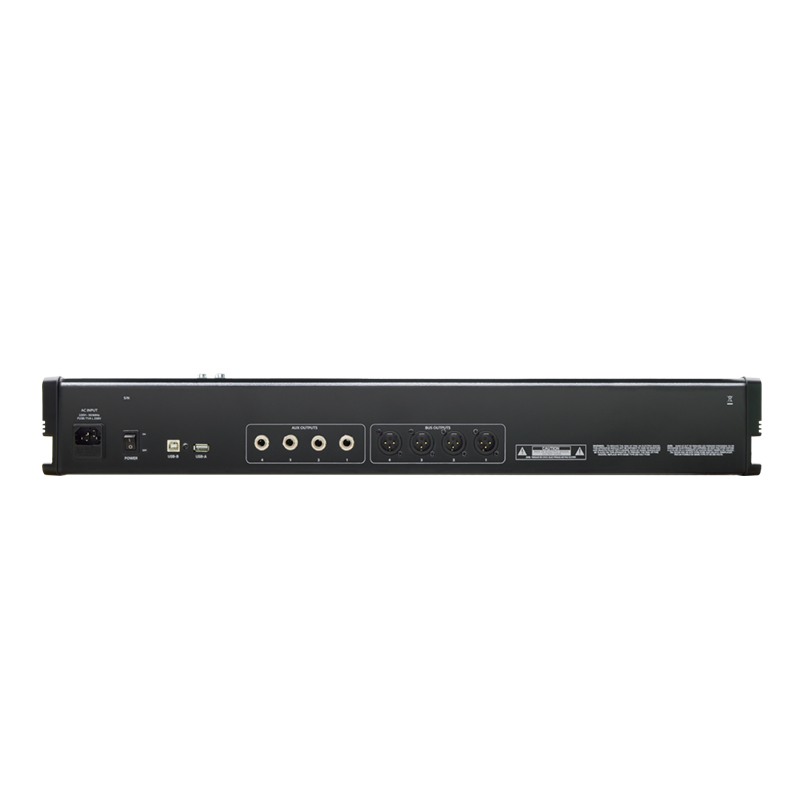

OUTPUT
• MAIN OUTPUT: 1 pair of XLR + 1 pair of 6.3mm TRS
• MAIN Max Output Level: +28 dBu
• AUX OUTPUT: 4 TRS
• AUX Max Output Level: +28 dBu
• STEREO GROUP 1/2 OUTPUT: 2 TRS
• GROUP Max Output Level: +28 dBu
• STEREO GROUP 3/4 OUTPUT: 2 TRS
• GROUP Max Output Level: +28 dBu
• Monitor Output: 1 pair of TRS
• Stereo Headphone Output: 1 Stereo TRS
POWER SUPPLY
• Main Input Voltage: 100 V - 240 V AC, 50-60 Hz
• Power Consumption: 30W
• XR-1016FX Dimensions: 468*440*95 mm; Weight: 6.6 kg
• XR-1824FX Dimensions: 680*450*95 mm; Weight: 9.3 kg
