Micro không dây SHURE BLX1288/PGA31
Hệ Thống Không Dây Với Combo Micro Cầm Tay PGA58 Và Micro Cài Tai PGA31

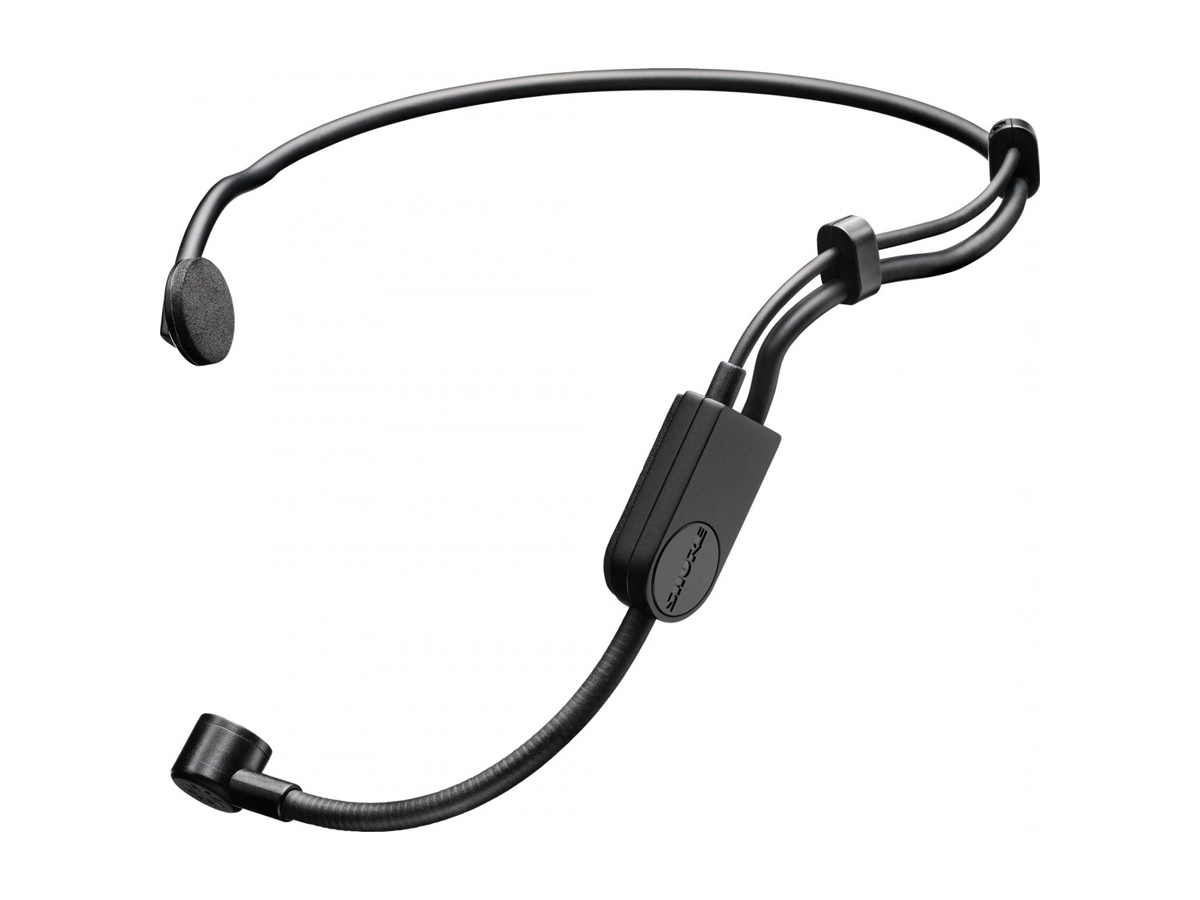

Gồm 1 bộ thu đôi BLX88, 1 bộ phát cầm tay BLX2/PG58, 1 bộ phát bodypack BLX1 và 1 micro cài đầu PGA31
System
- Working Range: 91 m (300 ft) Line of Sight
- Audio Frequency Response: 50 to 15,000 Hz
- Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
- Dynamic Range: 100 dB, A-weighted, typical
- Operating Temperature: -18°C (0°F) to 57°C (135°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1
- max -16 dBVmaximum
- min (0 dB) +10 dBVmaximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- RF Transmitter Output: 10 mW, typical
- Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
- Weight: 2.6 oz. (75 g), without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)

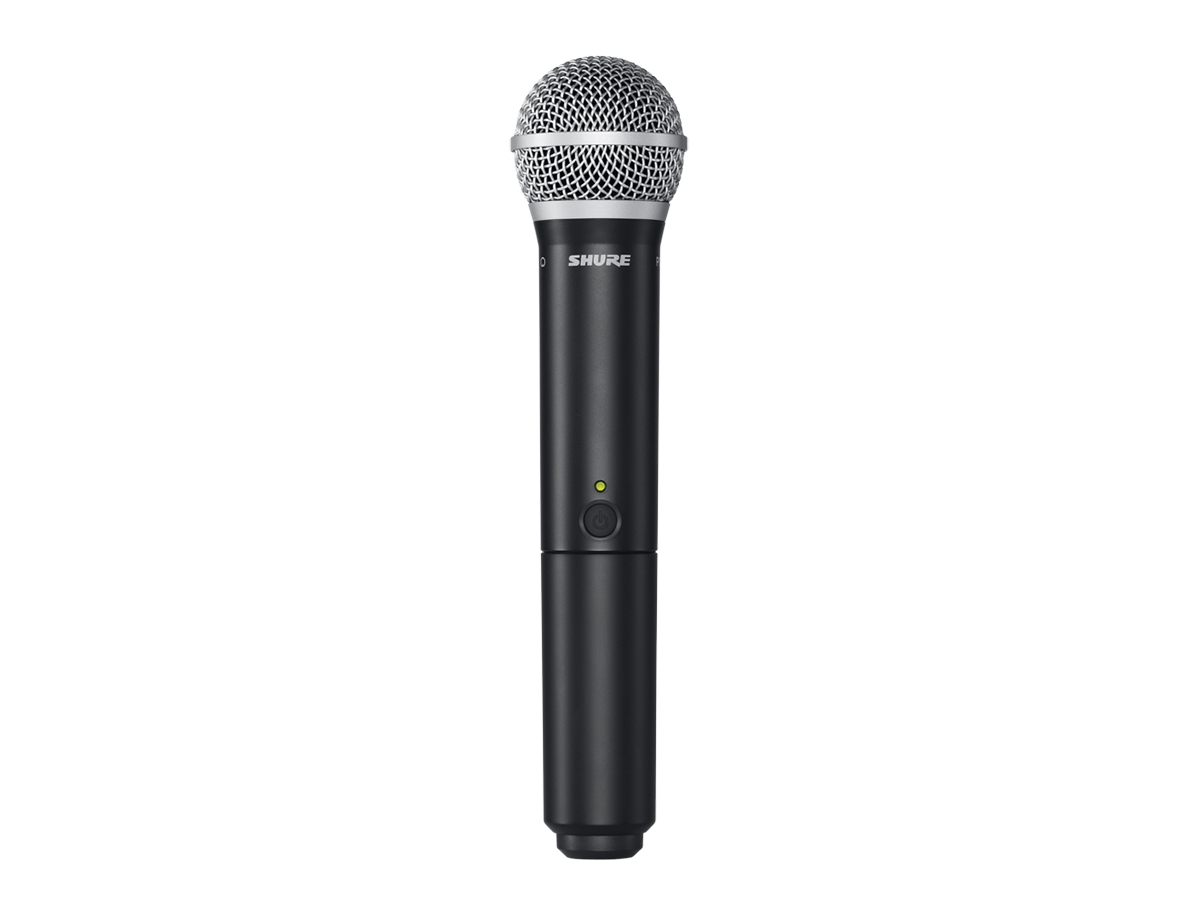

BLX2
- Audio Input Level: 0dB -20 dBVmaximum, -10dB -10 dBVmaximum
- Gain Adjustment Range: 10 dB
- RF Transmitter Output: 10 mW, typical
- Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
- Weight: 7.7 oz. (218 g) without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)

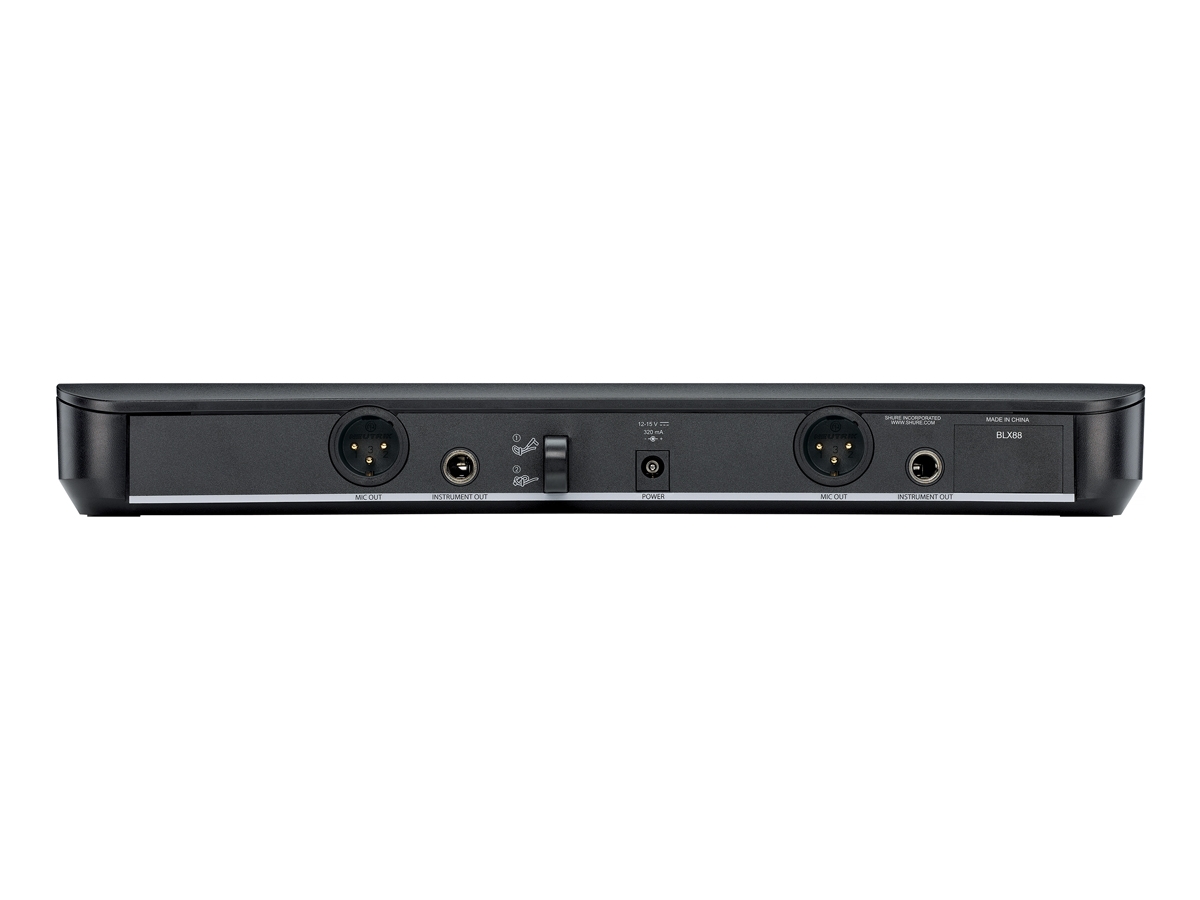

BLX88
- Output Impedance: XLR connector 200 Ω, 6.35 mm (1/4") connector 50 Ω
- Audio Output Level: Ref. ±33 kHz deviation with 1 kHz tone
- XLR connector –27 dBV (into 100 kΩ load) 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
- Weight: 15.1 oz. (429 g)
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
