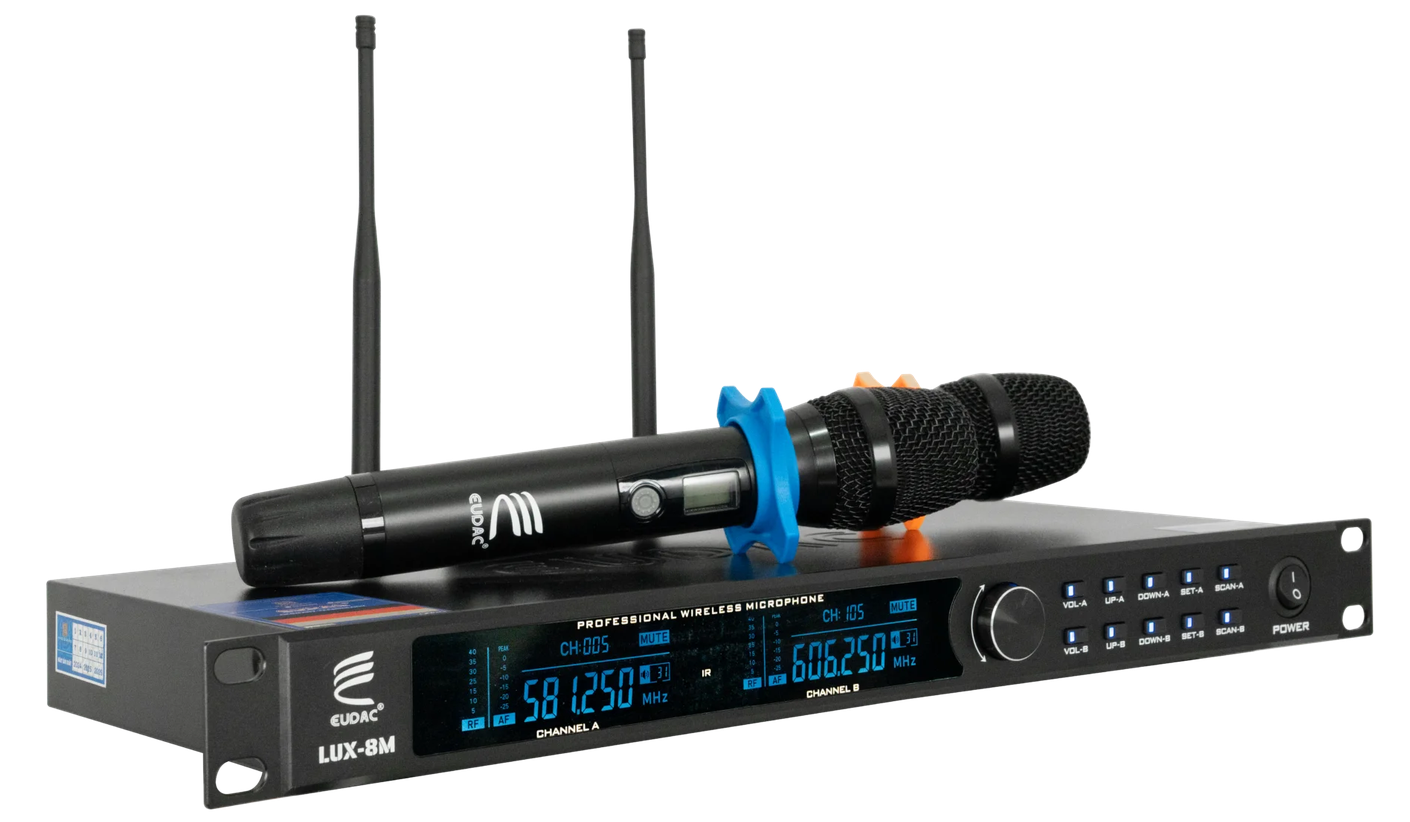

Micro không dây EUDAC LUX-8MI

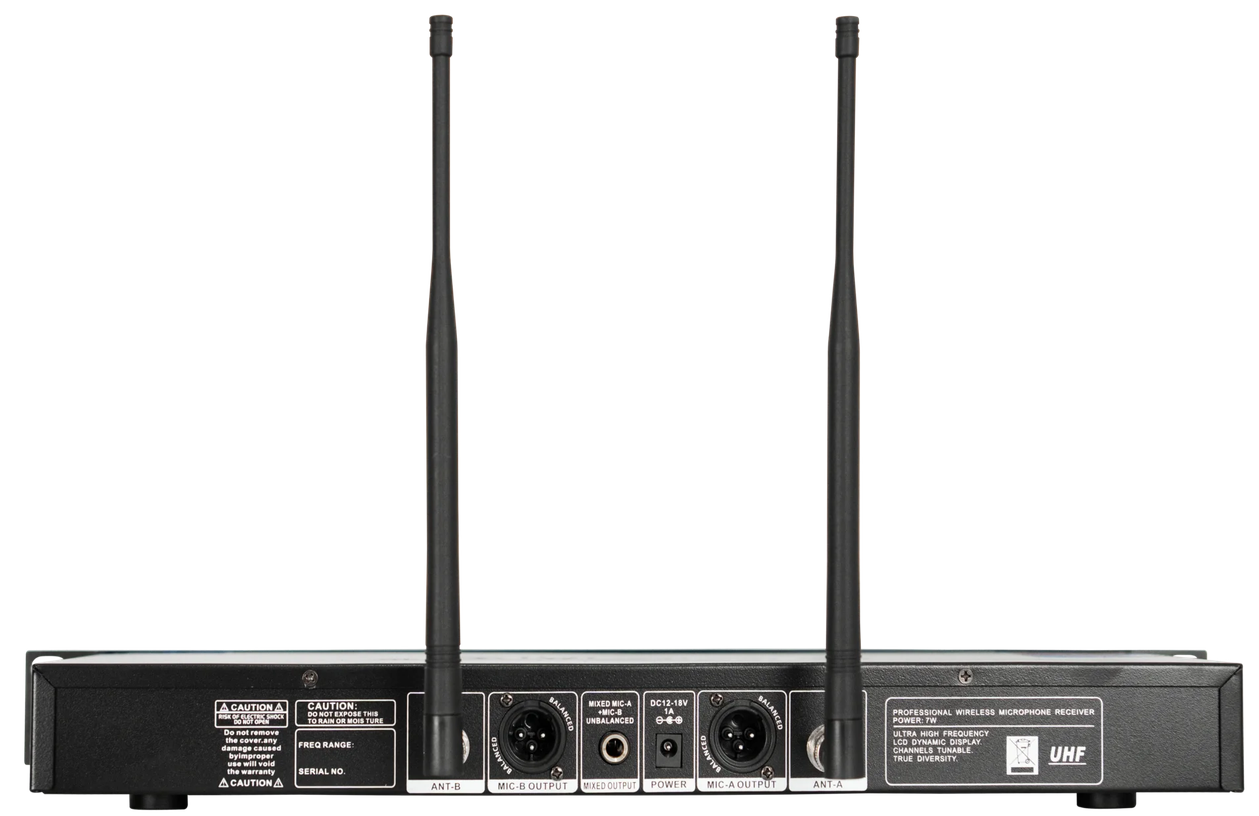

Receiver Specifications
•Operating Frequency Range: 580 MHz–630 MHz
•Number of Channels: 200 channels
•Oscillation Mode: PLL frequency synthesizer
•Frequency Synchronization Technology:
ACT/IR/SYNC
•Squelch Function: Stable squelch and audio signal
muting
•RF/IF Filtering: SAW filters used in the RF and IF
circuits to minimize crosstalk
•Diversity Reception: True diversity technology with
dual-tone diversity and automatic channel
selection to minimize dead spots
•Frequency Adjustment: IR-based frequency
synchronization
•LCD Display: LCD display for monitoring the
operating status, channel and frequency of the
handheld transmitter/microphone
•Audio Outputs: Balanced XLR and unbalanced
¼-inch phone jack
•Noise Reduction: Automatic muting and
anti-interference circuitry
•Power Supply Circuit: Dual DC-DC boost circuitry to
maintain stable RF output from the transmitter
•Frequency Stability: ±10 ppm
•Receiving Mode: Superheterodyne, dual-conversion
• Input Sensitivity: -90 dB, adjustable
•Audio Bandwidth: 40–18,000 Hz
•Signal-to-Noise Ratio: 110 dB
•Audio Connectors: Balanced XLR and unbalanced
¼-inch phone jack
•Power Supply: 12V / 1A (via adapter)
•Frequency Stability: ±0.0005%
•Sensitivity: At ±25 kHz deviation and 6 dBμV input,
S/N > 60 dB
•Maximum Deviation: ±45 kHz
•Bandwidth: 50 MHz
•S/N Ratio: >108 dB
•THD: <0.4% @ 1 kHz
•Frequency Response: 20 Hz–30 kHz
•Maximum Output Voltage: Balanced: -20 dBV / 100 Ω
•Operating Range: 100–200 m
Handheld Transmitter Specifications
•Operating Frequency Range: 580 MHz–630 MHz
•Spurious Emission: < -63 dBm
•Bandwidth: 80 MHz
•Maximum Deviation: ±45 kHz
•RF Output Power: 30 mW
•Frequency Response: 20 Hz–30 kHz
•Maximum Input Sound Pressure Level: 130 dB SPL
•Transmission Power:
•High Power Mode: Approximately 8–10 mW
•Low Power Mode: Approximately 2–6 mW
•Battery: 2 × AA batteries
•Battery Life: Approximately 12 hours
•Operating Range: 100
