Micro không dây cho kèn SHURE BLX14/B98

Sản phẩm

Micro không dây cho kèn SHURE BLX14/B98

Mã sp : Micro không dây cho kèn SHURE BLX14/B98

Số lượng :

Quý khách vui lòng click các nội dung dưới đây để tham khảo các chính sách bán hàng của chúng tôi:

Giá bán: 15.700.000 Đ (giá tham khảo)

(Giá chưa bao gồm thuế 10% VAT)

Đặt hàng

Hotline: 0908677003

Mô tả sản phẩm
Thông số kỹ thuật

Micro không dây cho kèn SHURE BLX14/B98

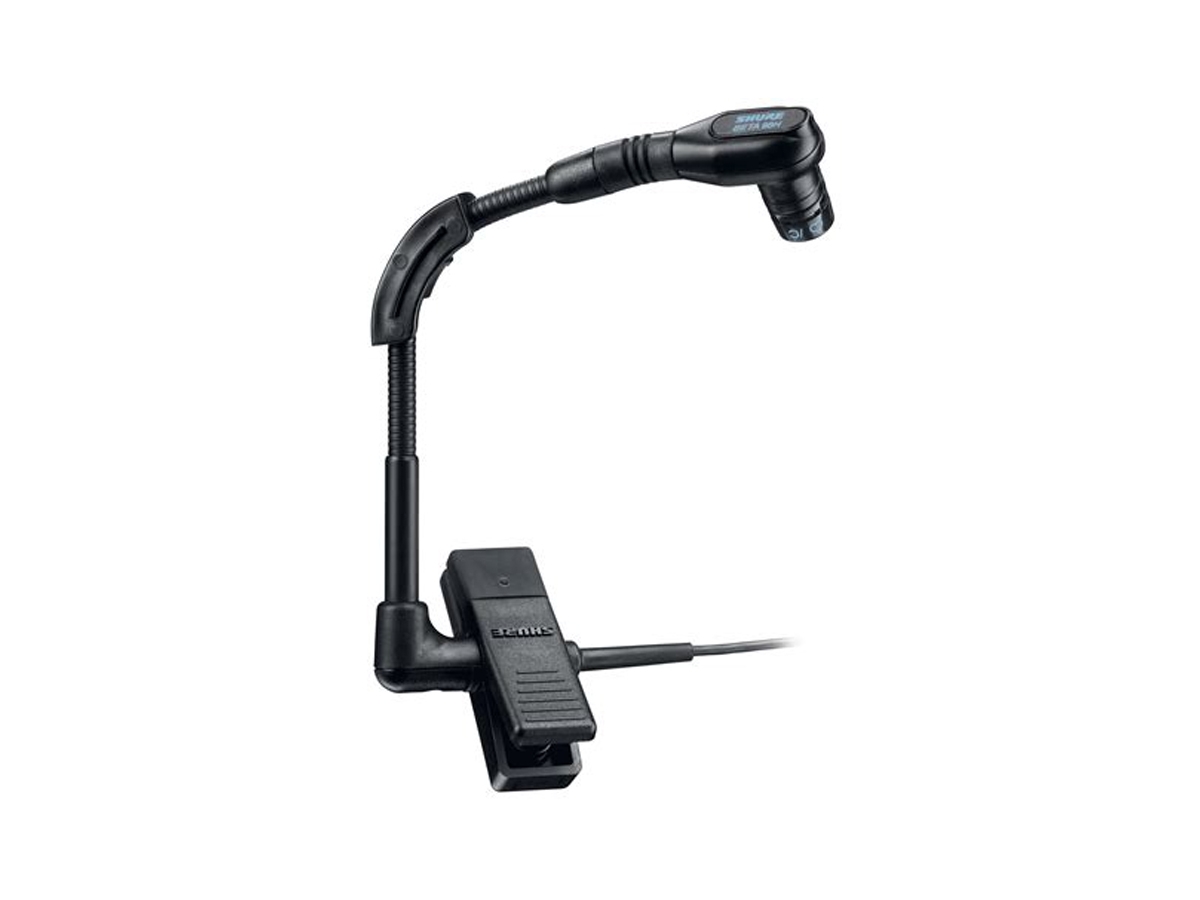

Hệ Thống Micro Nhạc Cụ Không Dây Với Micro Cổ Ngỗng Beta 98H/C
Gồm 1 bộ thu BLX4, 1 bộ phát bodypack BLX1 và micro Beta98H/C.

System

Working Range: 91 m (300 ft) Line of Sight
Audio Frequency Response: 50 to 15,000 Hz
Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

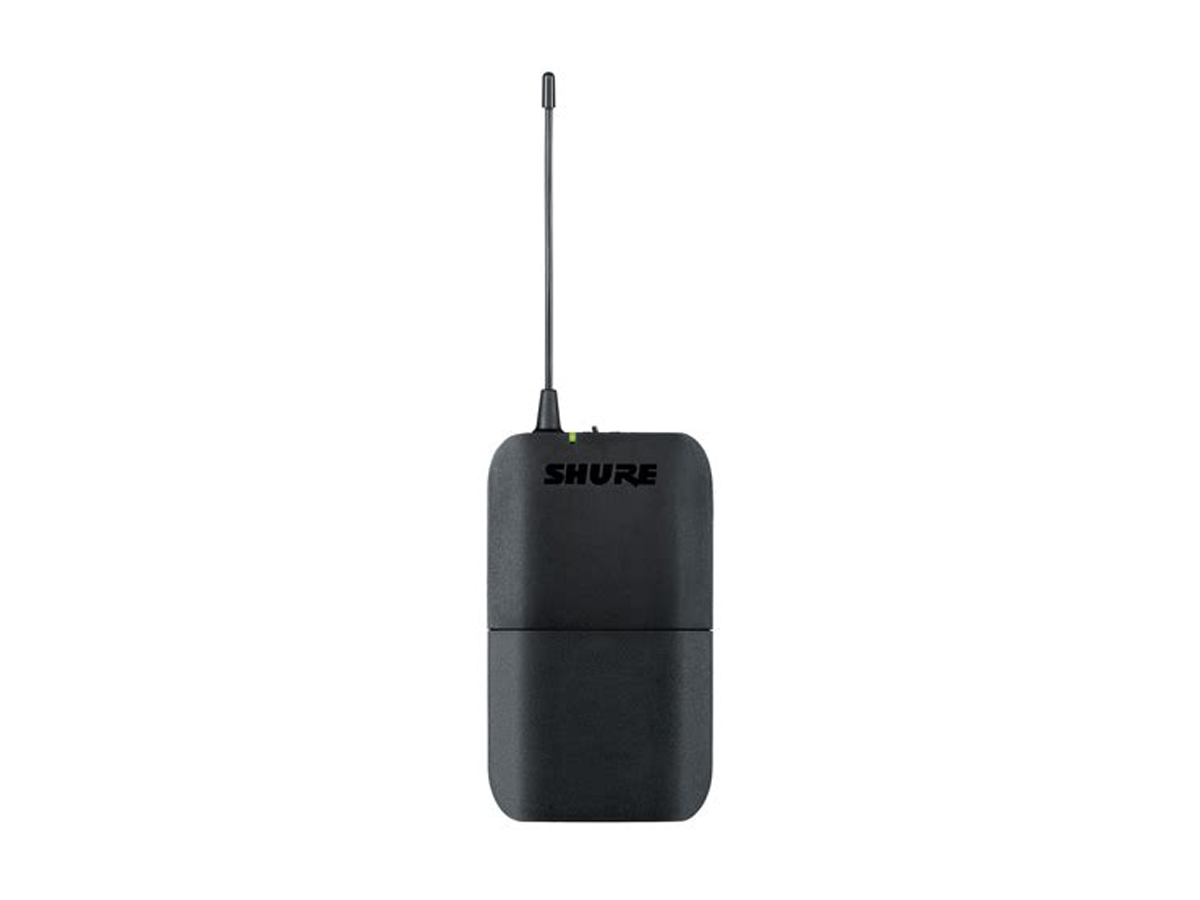

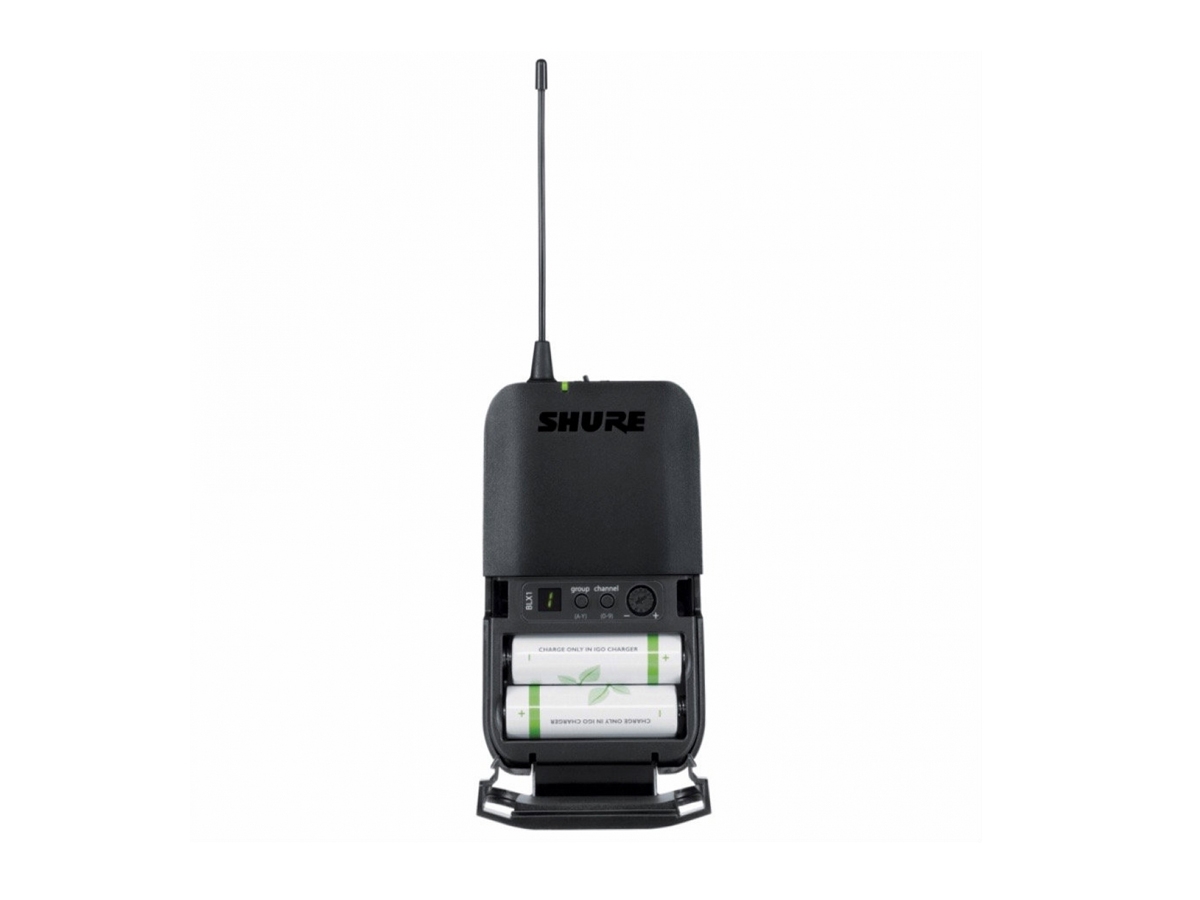

BLX1

Audio Input Level:

- max: -16 dBVmaximum
- min (0 dB): +10 dBVmaximum

Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)

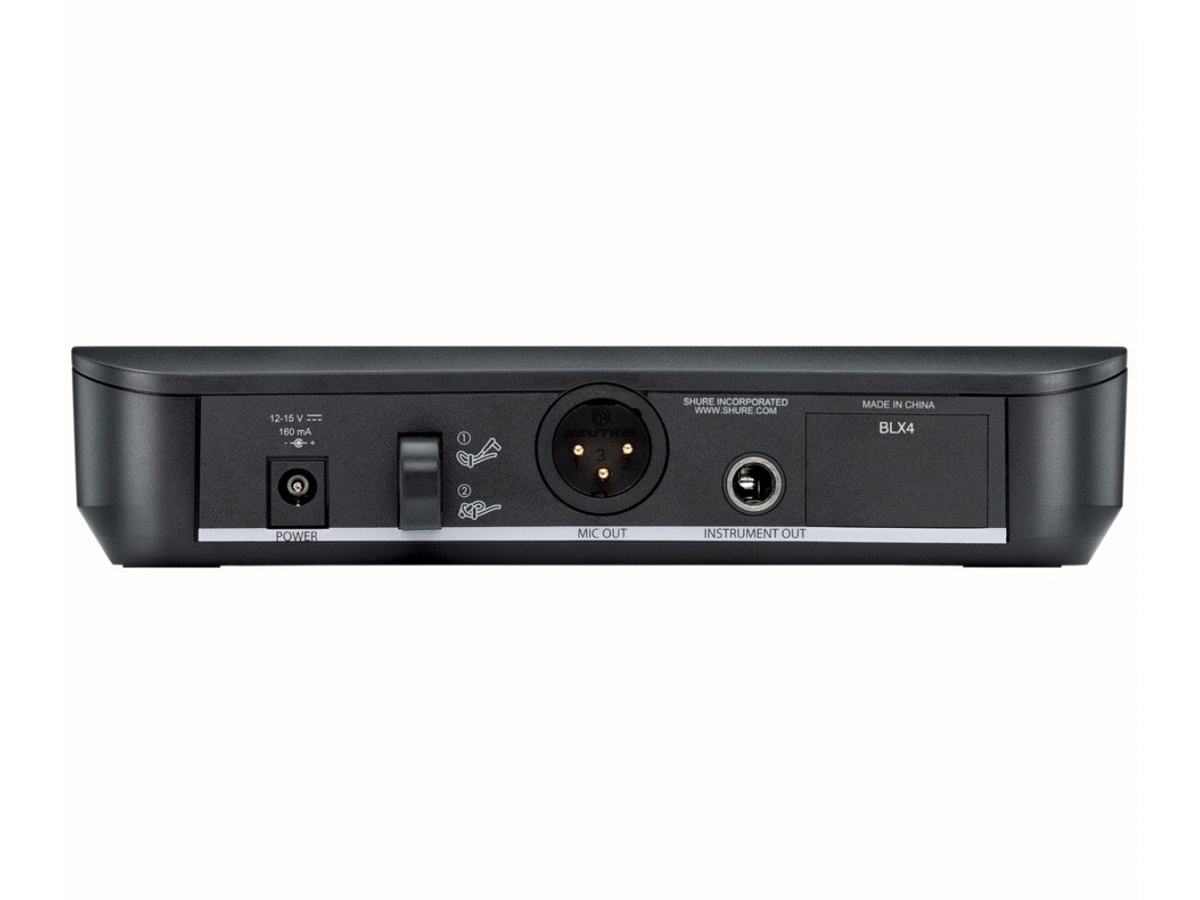

BLX4

Output Impedance: XLR connector 200 Ω, 6.35 mm (1/4") connector 50 Ω
Audio Output Level: Ref. ±33 kHz deviation with 1 kHz tone

- XLR connector: –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)

RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight: 8.5 oz. (241 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

System

Working Range: 91 m (300 ft) Line of Sight
Audio Frequency Response: 50 to 15,000 Hz
Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX1

Audio Input Level:

- max: -16 dBVmaximum
- min (0 dB): +10 dBVmaximum

Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)

BLX4

Output Impedance: XLR connector 200 Ω, 6.35 mm (1/4") connector 50 Ω
Audio Output Level: Ref. ±33 kHz deviation with 1 kHz tone

- XLR connector: –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)

RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight: 8.5 oz. (241 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
