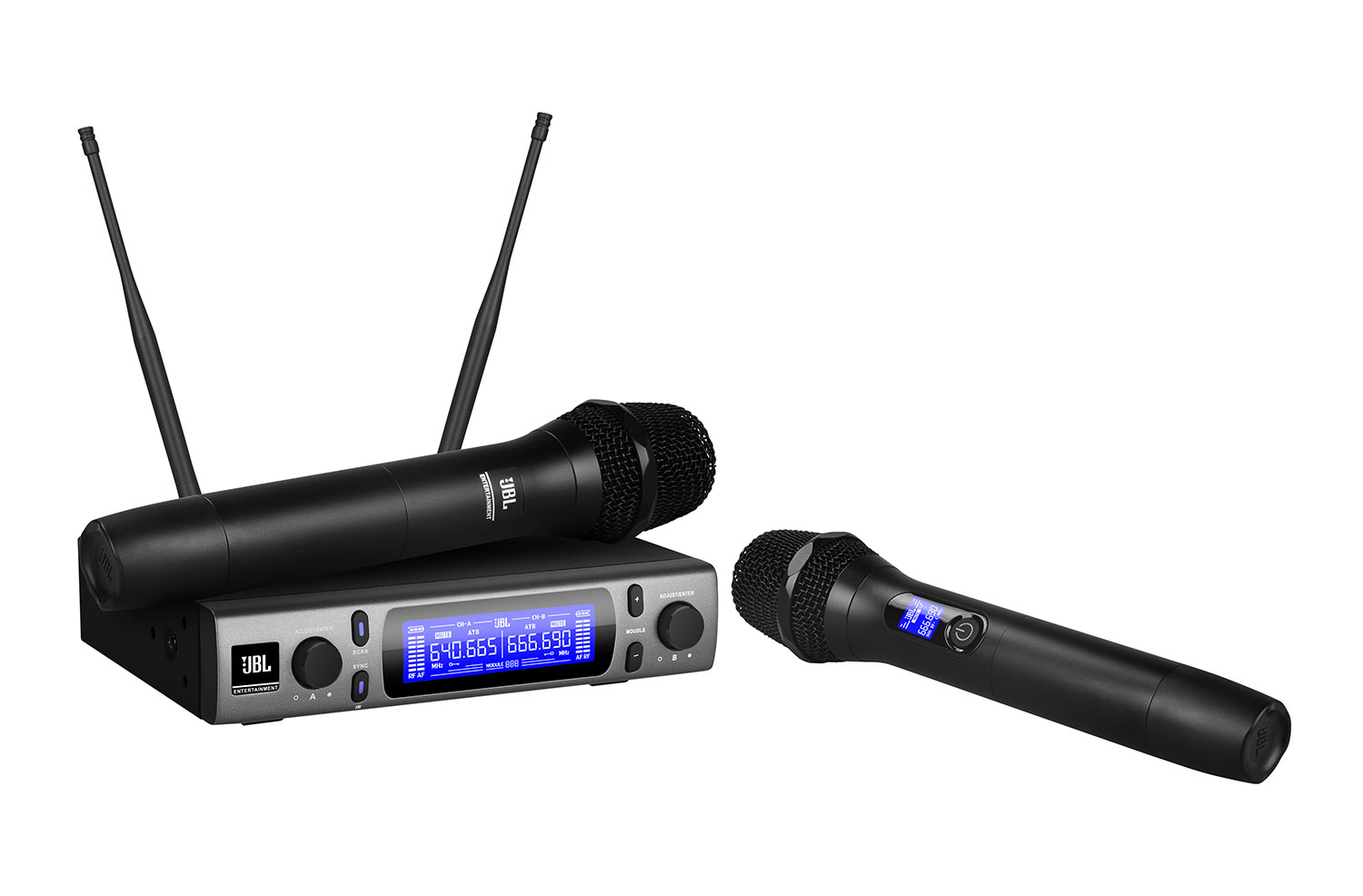

Micro không dây 2 mic JBL VM300
Wireless Microphone System
Preset module selects a pair of frequencies or channels for both Ch-A and Ch-
Auto Scan searches for clean frequencies/channels automatically
Shake to Sync allows frequency synchronization of two HT300s simultaneously
Auto Mute mutes the HT300 automatically when it stays static for about 3 seconds.
Auto Wakeup awakes the HT300 automatically when it is in motion.
Auto Sleep powers off the HT300 automatically when it stays static for about 8 minutes.
Frequency Band 640 MHz - 690 MHz
通道 200
Operating Range ≈ 50 meters
Frequency Increment 250 kHz
Frequency Bandwidth 50 MHz
S/N Ratio ≥ 50 dB (including pickup, according to China GB standard)
运输重量
2.5 kg
Dimensions (L×W×D) 480 × 340 × 70 mm
Frequency Deviation ±10 kHz
Frequency Preparation PLL synthesized control
Receiving Mode CPU controlled selection + Pilot tone detection
Mute Mode Mute & Lock Loop Circuit
显示
LCD
Power Requirement 12 VDC, 1.25 A
Audio Output Connector 2 × balanced XLR1 × 6.35mm unbalanced TS
Transmission Power ≤ 30 mW
Transmission CPU controlled selection + Pilot tone detection
Pickup Cartridge Dynamic
RF Output power High, Low
