- Cartridge Type: Electret Condenser
- Polar Pattern: Half-cardioid (cardioid in hemisphere above mounting surface)
- Frequency Response: 20 to 20,000 Hz
- Output Impedance @ 1 kHz: 146 Ω
- Sensitivity open circuit voltage, @ 1 kHz,typical: –48.5 dBV/Pa[1] (3.8 mV)
- Maximum SPL: 1 kHz at 1% THD[2]: 2500 Ω load 155 dB | 1000 Ω load 151 dB
- Signal-to-Noise Ratio[3] 64.5 dB
- Dynamic Range @ 1 kHz: 2500 Ω load 125.5 dB | 1000 Ω load 121.5 dB
- Clipping Level 20 Hz to 20 kHz, 1% THD: 2500 Ω load 12.5 dBV | 1000 Ω load 7.5 dBV
- Self Noise equivalent SPL, A-weighted, typical: 29.5 dB SPL-A
- Common Mode Rejection 20 Hz to 200 kHz: ≥55 dB
- Frequency Contour Switch: 7 dB of attenuation centered at 400 kHz

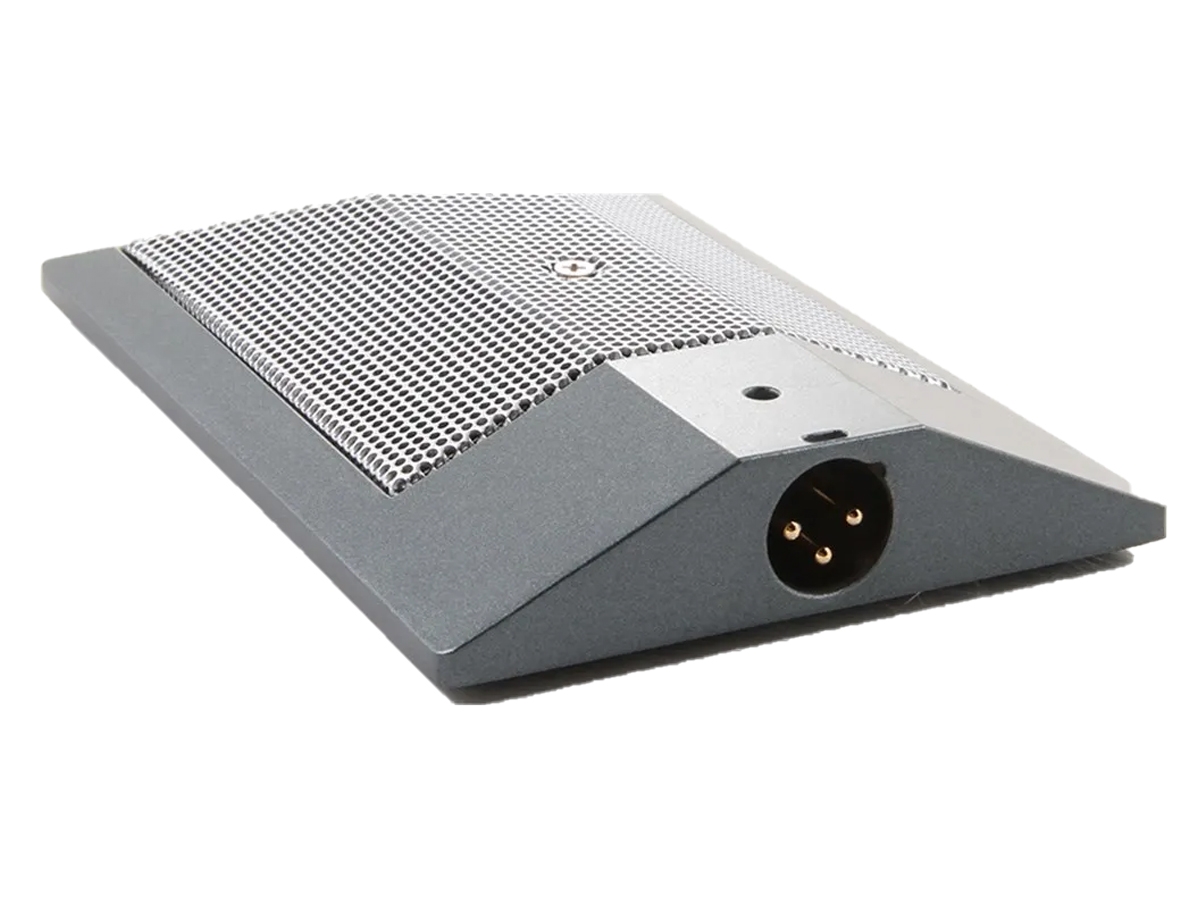

- Connector: Three-pin professional audio (XLR), male, balanced
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Power Requirements: 11–52 V DC[4] phantom power (IEC-61938), 5.4 mA
- Net Weight: 470 g (16.6 oz.)
[1] 1 Pa=94 dB SPL
[2]THD of microphone preamplifier when applied input signal level is equivalent to cartridge output
at specified SPL
[3]S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
[4]All specifications measured with a 48 Vdc phantom power supply. The microphone operates at
lower voltages, but with slightly decreased headroom and sensitivity.
