Loa treo trần Electrovoice EVID-P6.2
The Electro-Voice EVID-P6.2 loudspeaker system is a complete two-way pendant loudspeaker. The package consists of a bezel assembly, magnetic grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a titanium dome tweeter. The EVID-P6.2 loudspeaker utilizes a 2nd order crossover network with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-P6.2 loudspeaker utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75W, 7.5W, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle, easily accessible by removing the magnetic grille.

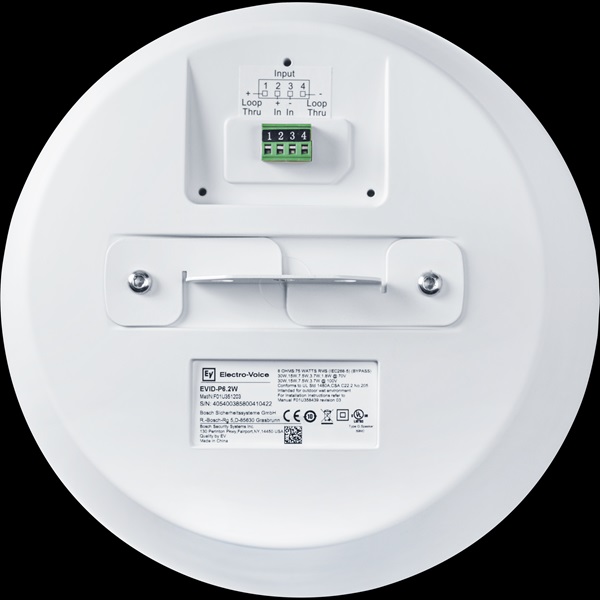

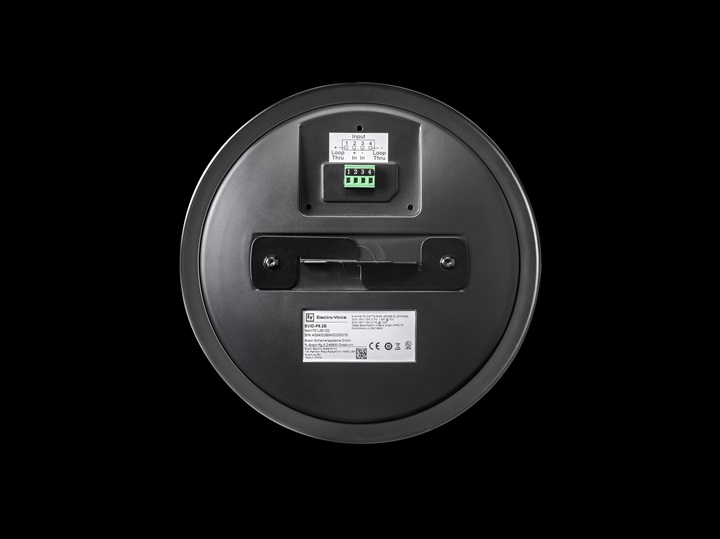

The perforated grille is finished in semi-gloss black or white powder-coated enamel. The baffle, bezel, and rear-enclosure are constructed from UL 94V-0 rated ABS. The connections on the rear provide access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides passthrough to additional speakers.
The EVID line of speakers has been designed to work together as a complete system in a wide range of different constructions. The pendant and ceiling loudspeakers provide wide dispersion, high efficiency, high-maximum output, ease of installation, and widerange reproduction of music or voice.
| Rated frequency range | 60 Hz - 20 kHz |
| Sensitivity (SPL 1 W/1 m) | 87 dB |
| Coverage pattern1 | 115° conical |
| Power handling (@ 8Ω) | 75 W (with overload protection) |
| Rated impedance | 8 Ω |
| Recommended High-Pass frequency | 60 Hz |
| Input configuration | 8Ω; 70V/100V |
| 70V/100V power taps | 1.8 (70V only)/3.7/7.5/15/30 W |
| LF transducer | 6.5 in (165 mm) high-compliance driver (weatherized cone) |
| HF transducer | 1 in (25 mm) titanium dome |
| Mounting system | Rear mounted suspension points |
| Acoustic design | Ported cabinet, two-way design, internally damped, w/passive crossover |
| Approvals | CE, UL 1480A, CSA 22.2 |
| Cabinet construction | UL94V-0 rated enclosure and baffle |
| Grille construction | Powder-coated steel |
| Colors | Black or white |
| Dimensions (depth x diam.) | 11.9 in x 12.2 in (301.0 mm x 310.0 mm) |
| Net weight | 11.65 lb (5.28 kg) |
| Shipping weight | 13.85 lb (6.28 kg) |
| Included accessories | Grille removal tool |
