Loa monitor active Proel WD12AV2
Active 2-way coaxial stage monitor
- System type 2-way coaxial vented stage monitor
- Low Frequency Device 12” woofer with 2.5"VC
- High Frequency Device 1” compression driver with 1.35"VC
- Angular Coverage 80°
- Frequency response 50 Hz - 20 kHz
- Max SPL at 1mt (peak) 124 dB
- Amplifier Continuous Power HF: 50 W CLASS AB, LF: 300W CLASS D with SMPS
- Input Impedance 30 kohm balanced, 15 kohm unbalanced
- Input Sensitivity 0 dBu

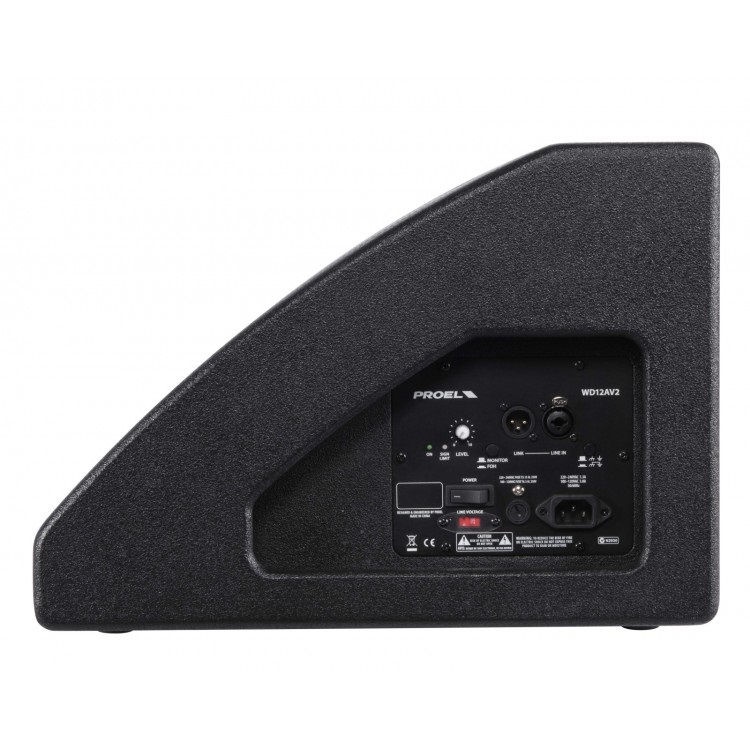

- Controls LEVEL, PRESET selector (MONITOR, FOH), GND lift
- Connectors INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
- Power Supply 230 VAC or 120 VAC - 50/60 Hz
- Maximum Consumption 445 W
- Rated Consumption* 235 W
- Construction Plywood with black anti-scratch polyurethane paint
- Pole Adapter 1 x side
- Handles 2 x sides
- Monitor taper 36°
- Weight 15 kg (33 lb)
- Dimensions (W x H x D) 510x310x440 mm
