Loa monitor 3 tấc soundking FHE12MA

Sản phẩm
Loa monitor 3 tấc soundking FHE12MA
  • Loa monitor 3 tấc soundking FHE12MA
  • Loa monitor 3 tấc soundking FHE12MA

Loa monitor 3 tấc soundking FHE12MA

Mã sp : Loa monitor 3 tấc soundking FHE12MA

Hotline: 0908677003

Loa monitor 3 tấc soundking FHE12MA

The 12-inch neodymium magnet low-frequency driver offers high sensitivity, lightweight design, high power handling, and low distortion. The diaphragm is constructed from directionally developed carbon fiber composite pulp, providing good rigidity with low weight. The suitable cone apex angle vented cloth composite edge cone widens the mid-frequency response effectively, resulting in excellent transient response.

2. The high-frequency compression driver features a PEEK diaphragm with a high Young's modulus, excellent frequency response characteristics, and a relatively softer and durable sound compared to titanium diaphragms. The magnetic circuit structure with a short-circuit ring design effectively reduces third-order harmonic distortion.

Specially designed frequency response and linear phase characteristics enhance audio quality, ensuring clear soundstage positioning, making it ideal for live stage monitoring and sound reinforcement.

The 15mm MDF enclosure with a dovetail joint structure provides excellent rigidity and pure sound reproduction. It is coated with a high-hardness granular relief paint.

The curved design of the high-hardness steel grille, coupled with internal specialized acoustic cotton, provides effective protection for the speaker.

7 M10 steel suspension screw holes are built-in for versatile hanging options, catering to different usage scenarios.

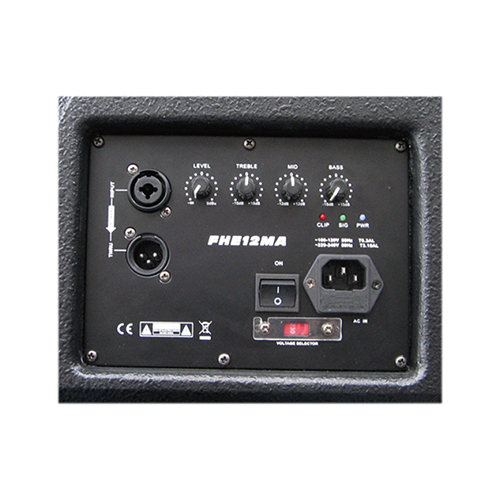

The two-way amplifier employs Class-D audio power amplification, offering high efficiency, compact size, ample power output, lightweight construction, and stable performance. It features dual-band equalization knobs (high and low frequencies) for easy on-site sound adjustment.

  • Low-Frequency Driver: 1x 12" with a φ75mm voice coil, 400W, 4Ω
  • High-Frequency Driver: 1x 1.73" with a φ44mm voice coil, 40W, 8Ω
  • Product Dimensions: 660x390x335mm
  • Net Weight: 22 kg
  • Packaging Dimensions: 480x445x715mm
  • Gross Weight: 28 kg
  • Quantity per Package: 1 unit

Loa monitor 3 tấc soundking FHE12MA

The 12-inch neodymium magnet low-frequency driver offers high sensitivity, lightweight design, high power handling, and low distortion. The diaphragm is constructed from directionally developed carbon fiber composite pulp, providing good rigidity with low weight. The suitable cone apex angle vented cloth composite edge cone widens the mid-frequency response effectively, resulting in excellent transient response.

2. The high-frequency compression driver features a PEEK diaphragm with a high Young's modulus, excellent frequency response characteristics, and a relatively softer and durable sound compared to titanium diaphragms. The magnetic circuit structure with a short-circuit ring design effectively reduces third-order harmonic distortion.

Specially designed frequency response and linear phase characteristics enhance audio quality, ensuring clear soundstage positioning, making it ideal for live stage monitoring and sound reinforcement.

The 15mm MDF enclosure with a dovetail joint structure provides excellent rigidity and pure sound reproduction. It is coated with a high-hardness granular relief paint.

The curved design of the high-hardness steel grille, coupled with internal specialized acoustic cotton, provides effective protection for the speaker.

7 M10 steel suspension screw holes are built-in for versatile hanging options, catering to different usage scenarios.

The two-way amplifier employs Class-D audio power amplification, offering high efficiency, compact size, ample power output, lightweight construction, and stable performance. It features dual-band equalization knobs (high and low frequencies) for easy on-site sound adjustment.

  • Low-Frequency Driver: 1x 12" with a φ75mm voice coil, 400W, 4Ω
  • High-Frequency Driver: 1x 1.73" with a φ44mm voice coil, 40W, 8Ω
  • Product Dimensions: 660x390x335mm
  • Net Weight: 22 kg
  • Packaging Dimensions: 480x445x715mm
  • Gross Weight: 28 kg
  • Quantity per Package: 1 unit
