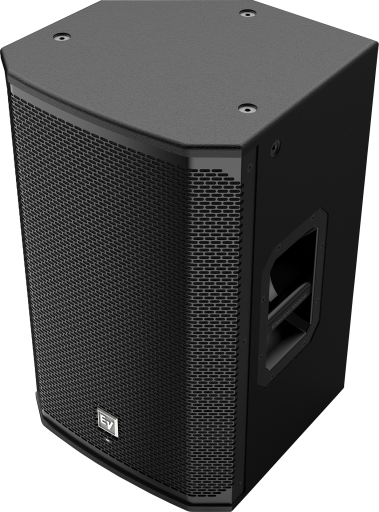

EKX-15
15" passive loudspeaker
EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

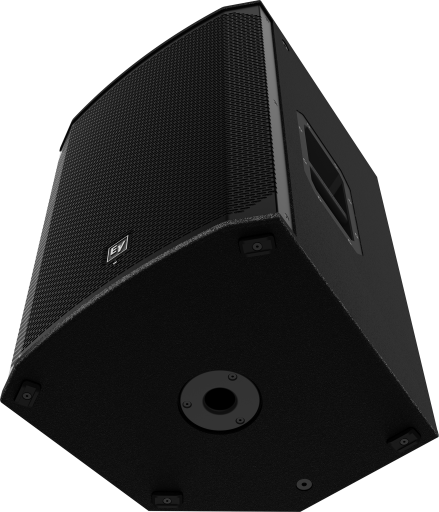

Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Frequency Range (-10 dB) 50 Hz - 20 kkHz (Full Space Measurement)
Shipping Weight 62.17lbs (28.2kg)
Weight Net 51.15lbs (23.2kg)
Depth 16.89" (429mm)
Width 17.01" (432mm)
Height 26.97" (685mm)
Suspension (8) M10 threaded mounting points
Grille 18 AWG steel with powdercoat
Enclosure Material 15 mm, plywood with EVCoat
Connector Type Dual NL4
Minimum Impedance 7.2Ω
Crossover Frequency 1.6 kHz
HF Transducer DH-1M 1-inch titanium compression driver
LF Transducer EVS-15M 381 mm (15 in)
Coverage (Nominal -6 dB) V 60°
Coverage (Nominal -6 dB) H 90°
Max. SPL/1m (calc) 132dB
Recommended High-Pass Frequency 50Hz
Frequency Response (-3 dB) 75 Hz - 18 kHz (Full Space Measurement)
Woofer Size 15inch
Power Handling (Continuous / Peak) 400 W/1600W
Maximum SPL 132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Powered or Passive Passive
Passive Power Handling 1600W peak
Family EKX
Speaker Type Full-Range, two way
Nominal Impedance 8Ω
Axial Sensitivity (SPL, 1 W @ 1 m) 96dB (Full Space Measurement)
Power Rating 1600W
