Transducers:
-
915G 15” ferrite magnet woofer
-
JBL 2408H-2 1.5” poly-annular diaphragm compression driver
-
-
Updated JBL image control waveguides improve dispersion
-
FEA flared port design reduces air noise and distortion
-
Low-noise, low-distortion gain staging design
-
Lightweight, efficient Class D amplification
-
Power: 2,000 watts peak/1,000 watts RMS
-
Frequency response: 48 Hz–19 kHz @4pi (-10 dB); 60 Hz–16 kHz @4pi (-3 dB)
-
Dispersion: 90° x 50°
-
Max SPL: 133 dB
-
Crossover frequency: 1,920 Hz
-
Color LCD screen provides access to comprehensive DSP suite
-
DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
-
Optimized presets for pairing full-range speakers with subwoofers
-
JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
-
G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
-
Polypropylene/talcum composite cabinet is optimized for rigidity and durability
-

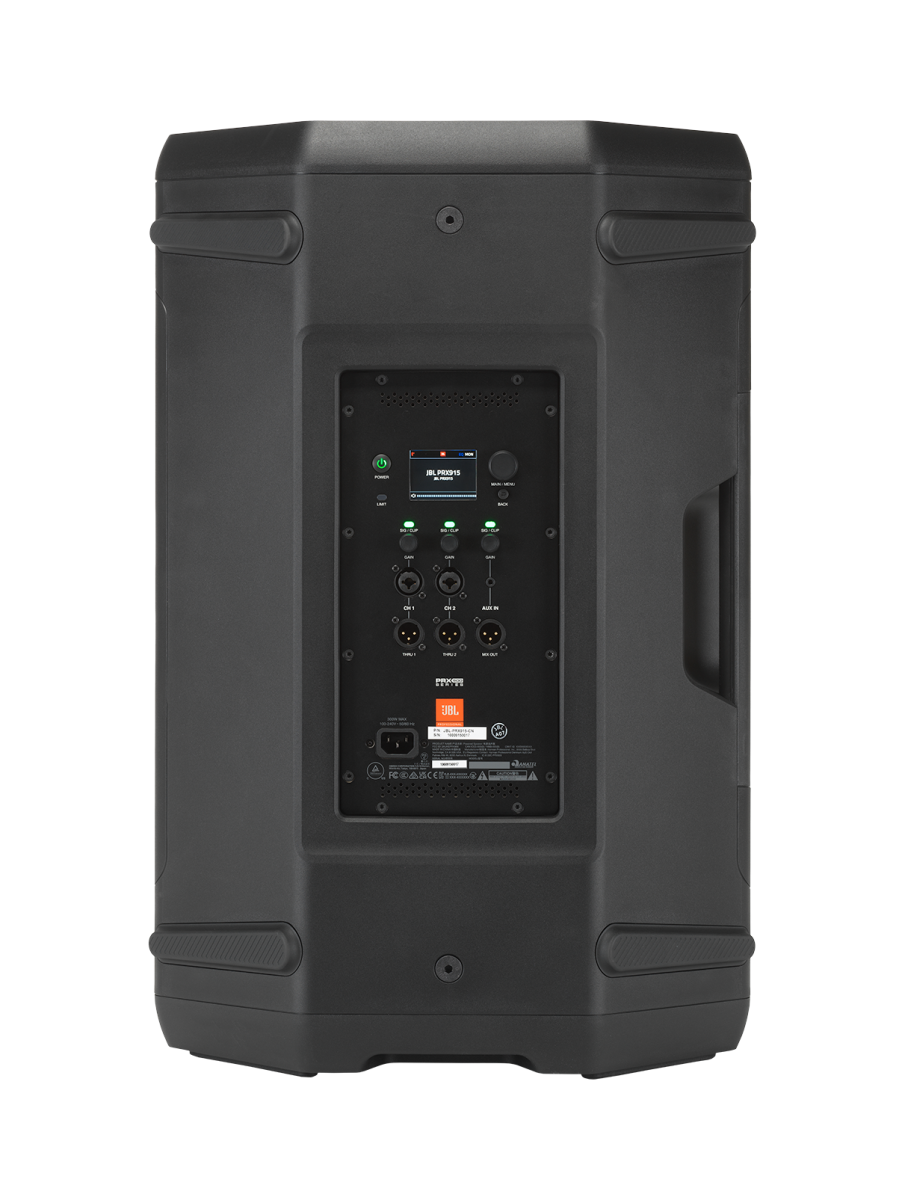

I/Os:
-
2 XLR balanced Combo jacks
-
1 3.5mm aux
-
2 XLR-M loop-through
-
1 XLR-M mix out
-
-
Two integrated handles (top and side)
-
Suspension/mounting: dual 36mm pole socket, six M10 suspension points
-
Quiet fanless operation
-
Ultra-low system latency: <1ms
-
Net weight: 24.1 kg (53.1 lbs); gross weight: 28.7 kg (63.3 lbs)
-
Dimensions: 717mm x 465 mm x 383 mm (28.2 in x 18.3 in x 15.08 in) (H x W x D)
-
Shipping dimensions: 749 mm x 574 mm x 495 mm (29.5 in x 22.6 in x 19.5 in) (H x W x D)
