Transducers:
-
912G 12” ferrite magnet woofer
-
JBL 2408H-2 1.5" poly-annular diaphragm compression driver
-
-
Updated JBL image control waveguides improve dispersion
-
Low-noise, low-distortion gain staging design
-
Lightweight, efficient Class D amplification
-
Power: 2,000 watts peak/1,000 watts RMS
-
Frequency response: 50 Hz–20 kHz @4pi (-10 dB); 65 Hz–17 kHz @4pi (-3 dB)
-
Dispersion: 90° x 50°
-
Max SPL: 132 dB
-
Crossover frequency: 2,050 Hz
-
Optimized presets for pairing full-range speakers with subwoofers
-
G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
-
Color LCD screen provides access to comprehensive DSP suite
-
DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
-
JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
-
Quiet fanless operation
-
Ultra-low system latency: <1ms
-
Polypropylene/talcum composite cabinet is optimized for rigidity and durability
-

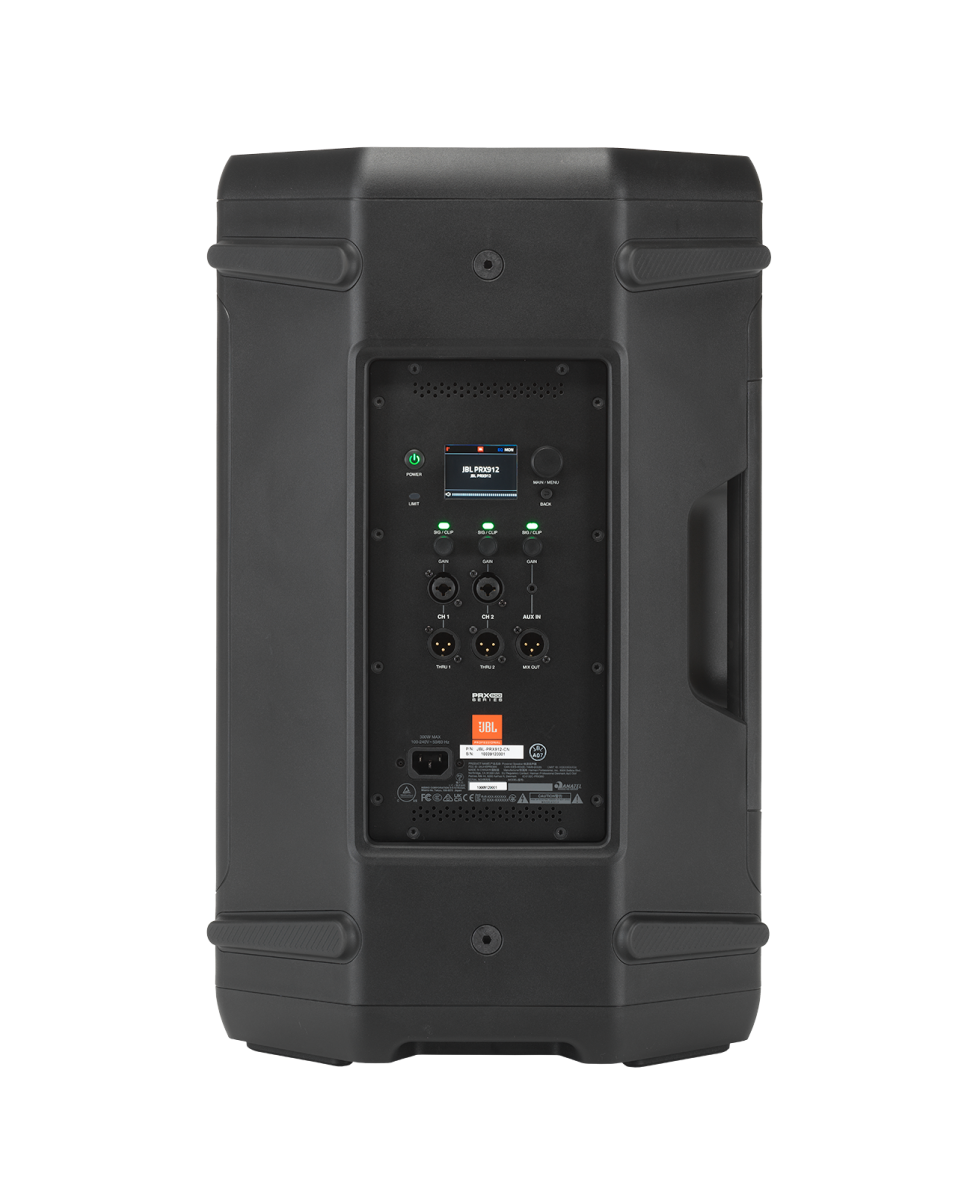

I/Os:
-
2 XLR balanced Combo jacks
-
1 3.5mm aux
-
2 XLR-M loop-through
-
1 XLR-M mix out
-
-

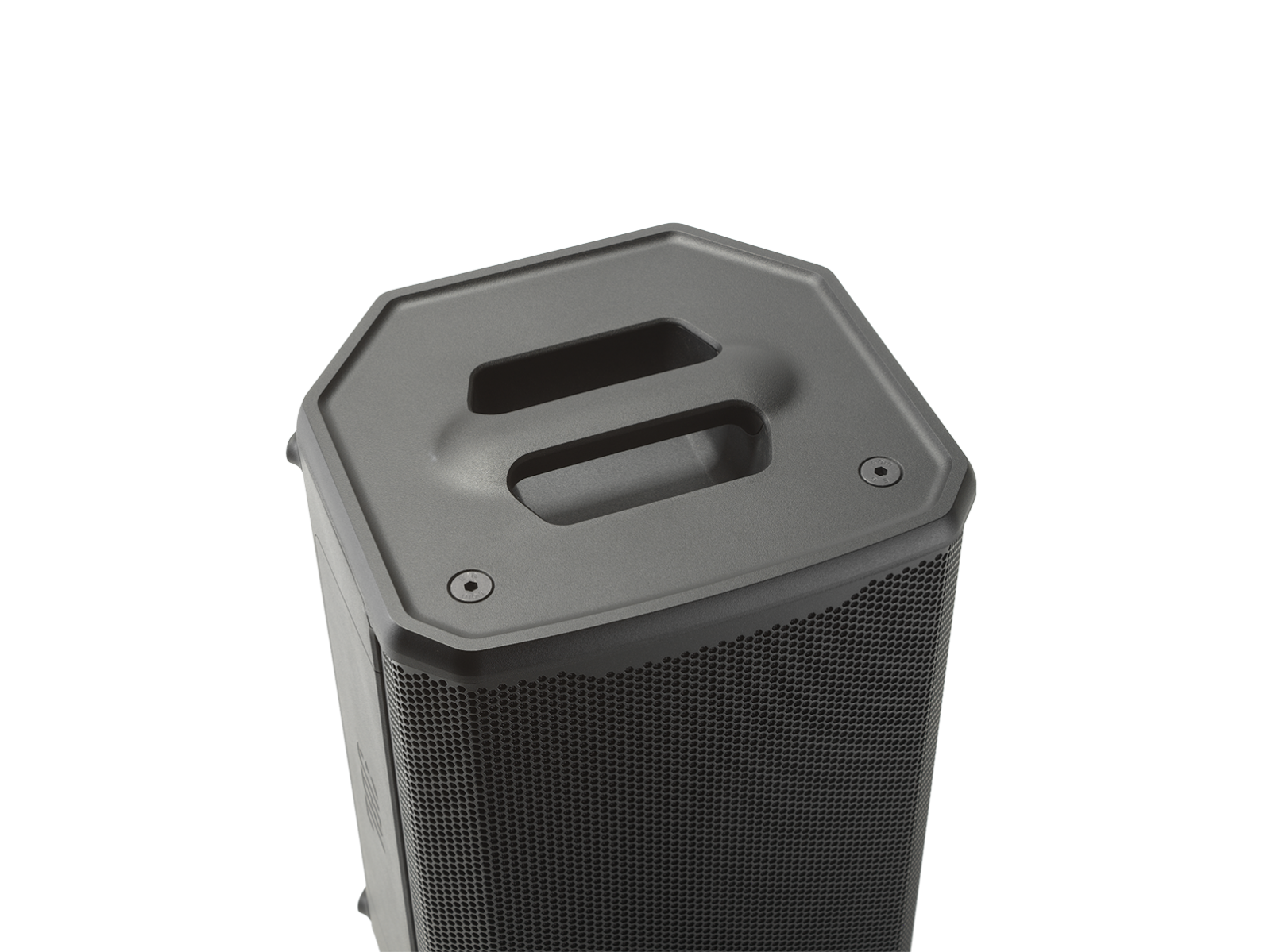

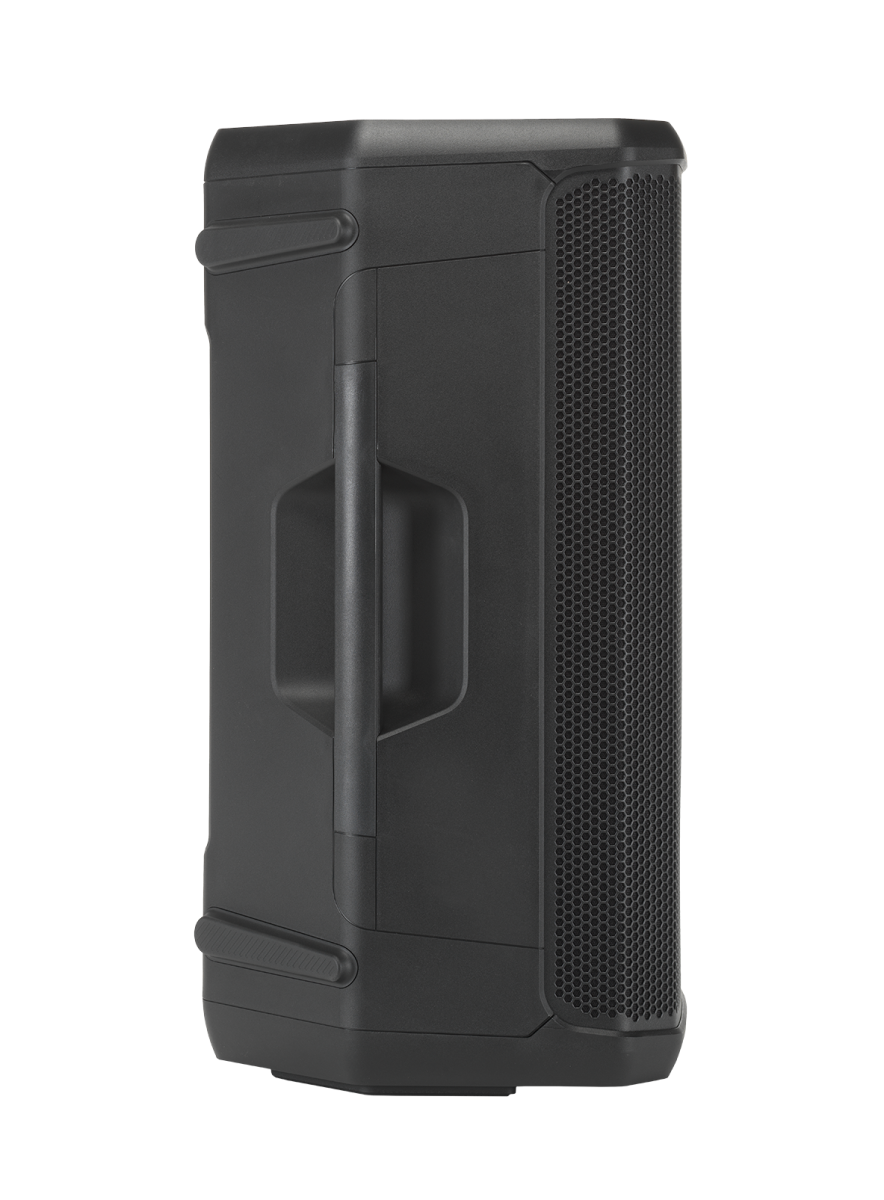

Two integrated handles (top and side)
-

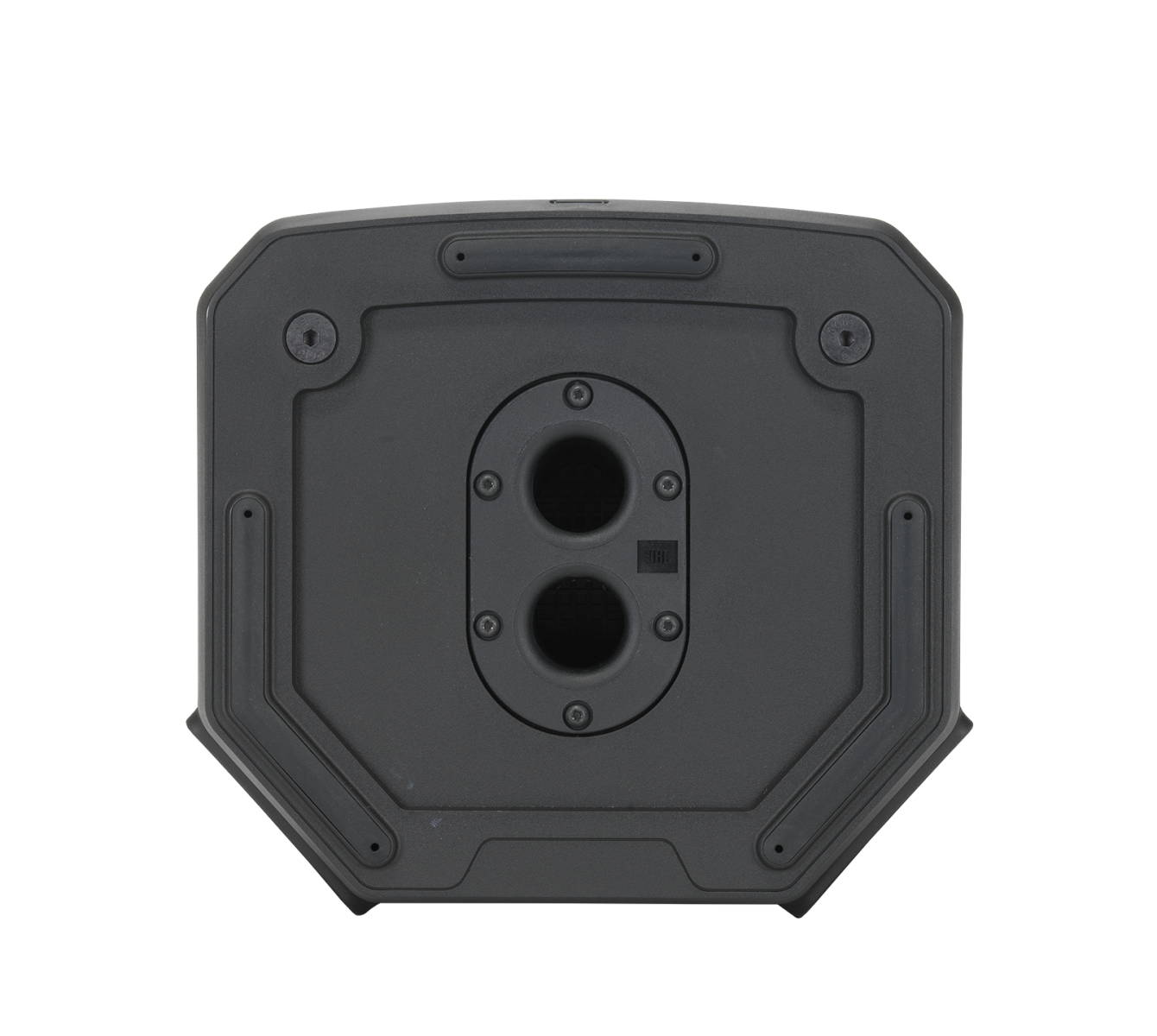

Suspension/mounting: dual 36mm pole socket, six M10 suspension points
-
Net weight: 19.5 kg (43 lbs); gross weight: 23.5 kg (51.8 lbs)
-
Dimensions: 636 mm x 394 mm x 332 mm (25.04 in x 15.5 in x 13 in) (H x W x D)
-
Shipping dimensions: 668 mm x 506 mm x 444 mm (26.3 in x 19.9 in x 17.5 in) (H x W x D)
