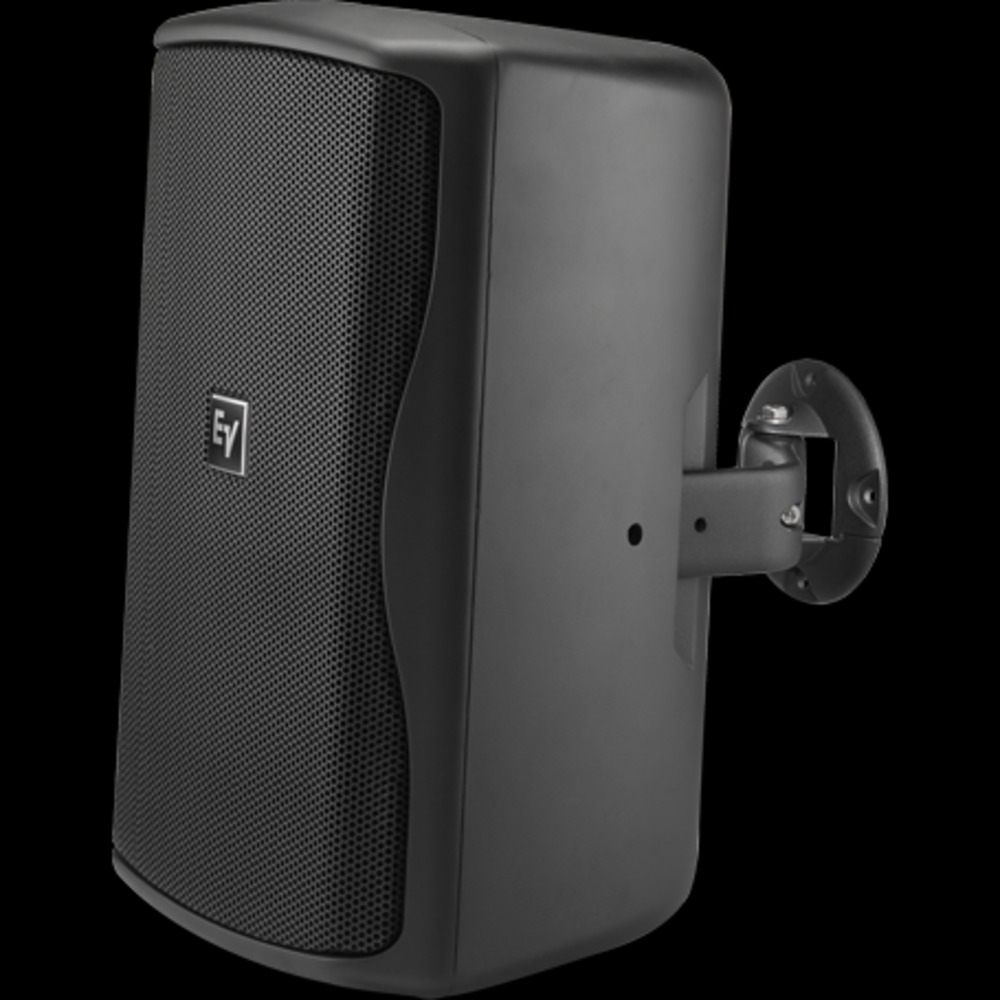

Loa full 2 tấc Electrovoice ZX1I-90
8" 2‑way passive full‑range indoor/outdoor loudspeaker
- Patented ASC (Automatic Saturation Compensation)
- Also available in 70/100 volt transformer version
- Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
- EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)
- Frequency Response (-3 dB) 60 Hz - 20 kHz¹
- Frequency Range (-10 dB) 48 Hz - 20 kHz¹
- Rec. Hi-pass Frequency 40 Hz
- Axial Sensitivity 94 dB (1W/1m)¹
- Max Calculated SPL 123 dB
- Coverage (H x V) 90 x 50
- Rated System Power 200 W Cont.², 400 W Prog., 800 W Peak
- LF Transducer EV8L, 203 mm (8 in) Driver
- HF Transducer DH2005, 25 mm (1 in) Exit Compression Driver
- Crossover Frequency 1.7 kHz
- Nominal Impedance 8 Ω
- Minimum Impedance 6 Ω
- "T" Version Wattage Taps 70V - 6, 12.5, 25, 50, 100, 8 Ω by
- p0V - 12.5, 25, 50, 100, 8 Ω bypass

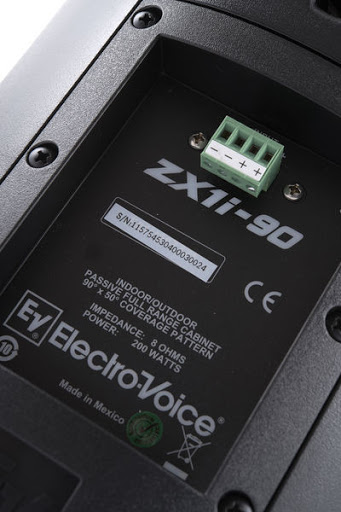

- Connectors 4-Pin Phoenix Connector
- Enclosure Material ABS resin
- Suspension Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
- Grille Polyester Powder Coated, 18GA Galvanized Steel
- Dimensions (H x W x D) 451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in)
- Net Weight 8.4 kg (18.5 lb) without Transformer
- 10.4 kg (23.0 lb) with Transformer
- Shipping Weight 10.2 kg (22.5 lb) without Transformer
- 12.3 kg (27.0 lb) with Transformer
