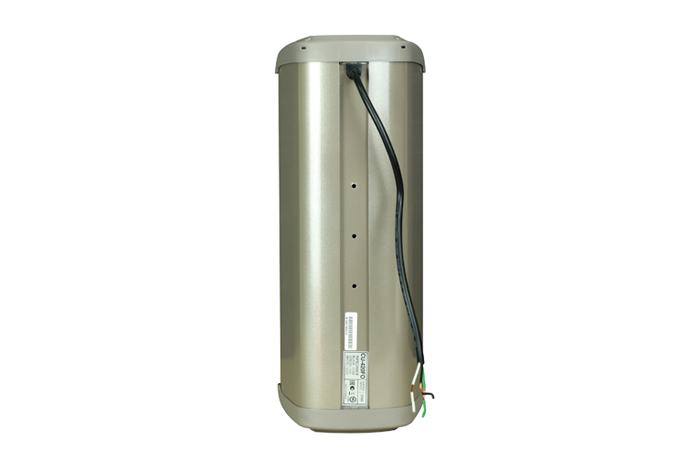

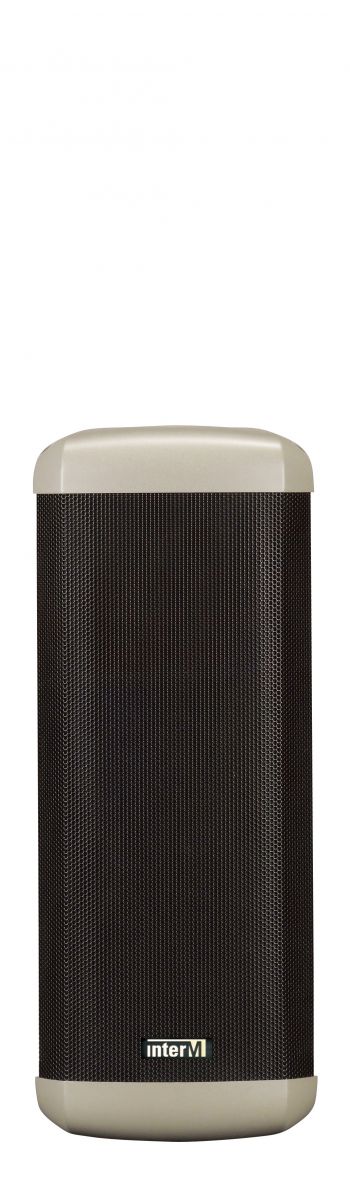

Loa cột ngoài trời InterM CU-420FO, công suất 20W
Dual 4" Full-range Column Speaker
Feature
● Full-range driver
● Using of high quality matching transformer
- Wire type
- Rotary switch type(Europe and US only)
● Strong steel grill on front for preventing of infl uence from outside
● User based design for fast installation
● Angle adjustment by mounting bracket
Model | CU-410FO | CU-420FO | CU-420FO (Rotary)Europe,US | CU-430FO | CU-440FO | CU-440FO (Rotary)Europe,US | |
Type | Single 4″ Full-range Column Speaker | Dual 4″ Full-range Column Speaker | Dual 4″ Full-range Column Speaker | Triple 4″ Full-range Column Speaker | Quad 4″ Full-range Column Speaker | Quad 4″ Full-range Column Speaker | |
Driver | 4″ | 4″ | 4″ | 4″ | 4″ | 4″ | |
Power Handling (AES) | 10W | 20W | 20W | 30W | 40W | 40W | |
Input Power | 100V | 10/5W | 20/10W | 20/10/5W | 30/15W | 40/20W | 40/20/10W |
70V | – | – | 20/10/5W | – | – | 40/20/10W | |
Impedance | 100V | 1k/2kΩ | 500/1kΩ | 500/1k/2kΩ | 330/660Ω | 250/500Ω | 250/500/1kΩ |
70V | – | – | 250/500/1kΩ | – | – | 125/250/500Ω | |
LOW | – | – | – | – | – | – | |
Power Selection | By Wiring | By Wiring | Rotary Switch | By Wiring | By Wiring | Rotary Switch | |
Frequency Response(-10dB) | 135Hz ~ 13.7kHz | 150Hz ~ 16.9kHz | – | 135Hz ~ 15kHz | 130Hz ~ 8.8kHz | ||
Frequency Range(-20%) | 110Hz ~ 18.4kHz | 120Hz ~ 20kHz | 170Hz ~ 12kHz | 100Hz ~ 16.9kHz | 100Hz ~ 16kHz | 175Hz ~ 10kHz | |
Sensitivity (1W/1m, 1kHz) | 86dB | 89dB | 96dB | 90dB | 91dB | 100dB | |
Maximum SPL[Cont] | 96dB | 102dB | 109dB | 105dB | 107dB | 116dB | |
Nominal Dispersion(HxV) | 1kHz | 192˚ x 136˚ | 203˚ x 99˚ | 240˚ x 130˚ | 199˚ x 64˚ | 195˚ x 55˚ | 230˚ x 60˚ |
4kHz | 104˚ x 100˚ | 95˚ x 25˚ | 100˚ x 30˚ | 94˚ x 15˚ | 95˚ x 15˚ | 130˚ x 30˚ | |
Input connection | Bi-Wired | Bi-Wired | Bi-Wired INPUT Line Direct Connection |
Bi-Wired | Bi-Wired | Bi-Wired INPUT Line Direct Connection | |
Enclosure Material | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | |
Enclosure Color | Light Brown | Light Brown | Light Brown | Light Brown | Light Brown | Light Brown | |
Grille Material | Metal Grille | Metal Grille | Metal Grille | Metal Grille | Metal Grille | Metal Grille | |
Grille Color | BLACK | BLACK | BLACK | BLACK | BLACK | Light Brown | |
Weight (Net) | 1.97kg | 3.13kg | 3.15kg | 3.9kg | 4.76kg | 4.71kg | |
Dimensions (Net, WxHxD, mm) | 156 x 300 x 129 | 156 x 400 x 129 | 156 x 400 x 129 | 156 x 500 x 129 | 156 x 600 x 129 | 156 x 600 x 129 | |
Weather Resistant | IP34 | IP34 | IP34 | IP34 | IP34 | IP34 | |
Flame Resistant | ○ | ○ | ○ | ○ | ○ | ○ | |
Certification | KS | KS | KS | KS | KS | KS | |
Included Accessories | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket |
