(1).jpg "Loa cột 20W InterM CU-420F")

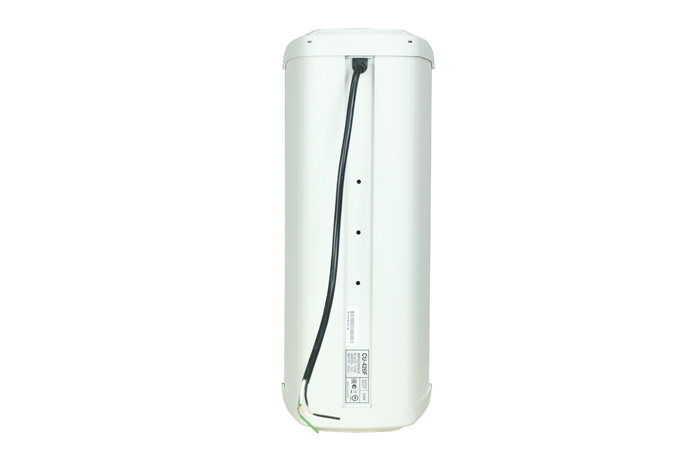

Loa cột InterM CU-420F, công suất 20W
Feature
● Full-range driver
● Using of high quality matching transformer
- Wire type

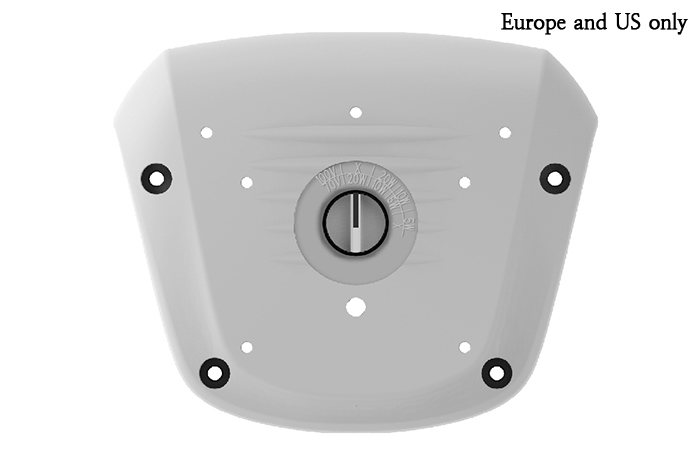

- Rotary switch type(Europe and US only)
● Light gray color for matching with interior
● User based design for fast installation
● Direction adjustable with bracket
| Model | CU-410F | CU-420F | CU-420F (Rotary)Europe,US | CU-430F | CU-440F | CU-440F (Rotary)Europe,US | |
| Type | Single 4″ Full-range Column Speaker | Dual 4″ Full-range Column Speaker | Dual 4″ Full-range Column Speaker | Triple 4″ Full-range Column Speaker | Quad 4″ Full-range Column Speaker | Quad 4″ Full-range Column Speaker | |
| Driver | 4″ | 4″ | 4″ | 4″ | 4″ | 4″ | |
| Power Handling (AES) | 10W | 20W | 20W | 30W | 40W | 40W | |
| Input Power | 100V | 10/5W | 20/10W | 20/10/5W | 30/15W | 40/20W | 40/20/10W |
| 70V | – | – | 20/10/5W | – | – | 40/20/10W | |
| Impedance | 100V | 1k/2kΩ | 500/1kΩ | 500/1k/2kΩ | 330/660Ω | 250/500Ω | 250/500/1kΩ |
| 70V | – | – | 250/500/1kΩ | – | – | 125/250/500Ω | |
| LOW | – | – | – | – | – | – | |
| Power Selection | By Wiring | By Wiring | Rotary Switch | By Wiring | By Wiring | Rotary Switch | |
| Frequency Response(-10dB) | 140Hz ~ 15.6kHz | 140Hz ~ 15.6kHz | 140Hz ~ 13.7kHz | 135Hz ~ 13.7kHz | |||
| Frequency Range(-20%) | 115Hz ~ 20kHz | 110Hz ~ 20kHz | 170Hz ~ 12kHz | 110Hz ~ 15.4kHz | 100Hz ~ 17.7kHz | 175Hz~10kHz | |
| Sensitivity (1W/1m, 1kHz) | 87dB | 91dB | 96dB | 92dB | 92dB | 100dB | |
| Maximum SPL[Cont] | 97dB | 104dB | 109dB | 107dB | 108dB | 116dB | |
| Nominal Dispersion(HxV) | 1kHz | 196˚ x 135˚ | 200˚ x 99˚ | 230˚ x 120˚ | 197˚ x 65˚ | 195˚ x 52˚ | 230˚ x 60˚ |
| 4kHz | 123˚ x 116˚ | 110˚ x 24˚ | 130˚ x 30˚ | 107˚ x 16˚ | 112˚ x 15˚ | 130˚ x 30˚ | |
| Input connection | Bi-Wired | Bi-Wired | Bi-Wired | Bi-Wired | Bi-Wired | Bi-Wired INPUT Line Direct Connection |
|
| Enclosure Material | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | AL Body/ABS top, bottom Cover | |
| Enclosure Color | Light Gray | Light Gray | Light Gray | Light Gray | Light Gray | Light Gray | |
| Grille Material | Metal Grille | Metal Grille | Metal Grille | Metal Grille | Metal Grille | Metal Grille | |
| Grille Color | Light Gray | Light Gray | Light Gray | Light Gray | Light Gray | Light Gray | |
| Weight (Net) | 1.97kg | 3.13kg | 3.1kg | 3.9kg | 4.76kg | 4.7kg | |
| Dimensions (Net, WxHxD, mm) | 156 x 300 x 129 | 156 x 400 x 129 | 156 x 400 x 129 | 156 x 500 x 129 | 156 x 600 x 129 | 156 x 600 x 129 | |
| Weather Resistant | – | – | – | – | – | – | |
| Flame Resistant | ○ | ○ | ○ | ○ | ○ | ○ | |
| Certification | KS | KS | KS | KS | KS | KS | |
| Included Accessories | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | |
| Certification | KS | KS | KS | KS | KS | KS | |
| Included Accessories | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | Wall Bracket | |
