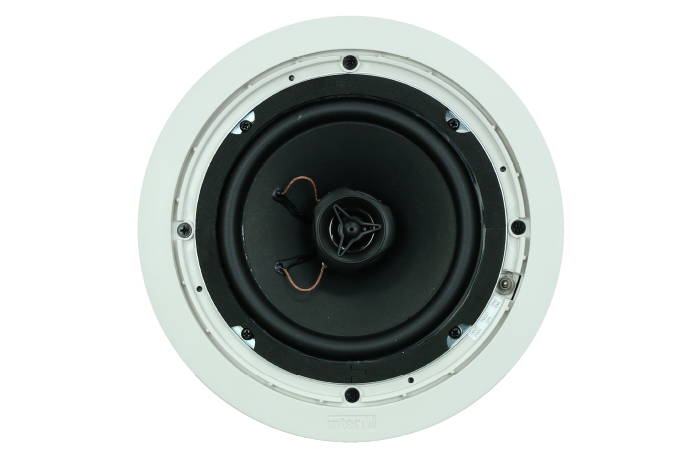

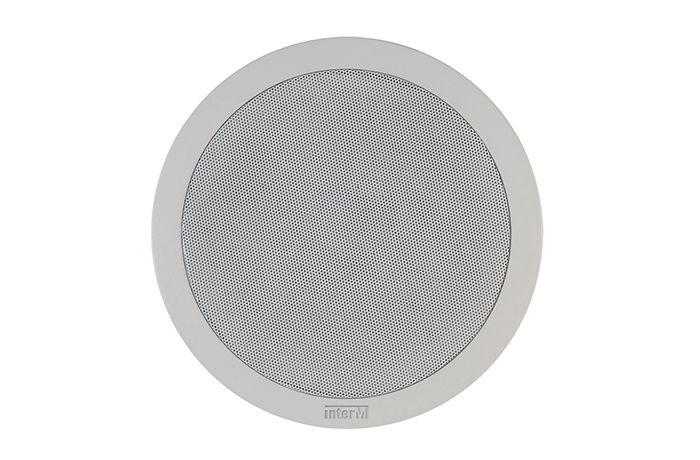

Loa âm trần 80W InterM CS-680FH
6.5" 2Way Coaxial Ceiling Speaker
the speaker for playing music using coxial 2 way driver.
It is the finest solution for the space such as class room, meeting room which needs High-quality sound and high intelligibility.
● 6.5" coaxial 2Way speaker
● Using High quality matching transformer (100V)
● Low impedance input terminal
- Provides a connection terminal for low impedance (8Ω) to play high-quality music.
● Suitable for music playing
- It is suitable for playing music with a wide band bandwidth ranging from 400Hz~4kHz.
● Offering an installation bracket
-It ensures an safe installation of speaker by providing High-quality speaker installation tools made up with
bracket-ring and bracket-rail.
Loa âm trần 80W InterM CS-680FH
6.5" 2Way Coaxial Ceiling Speaker
the speaker for playing music using coxial 2 way driver.
It is the finest solution for the space such as class room, meeting room which needs High-quality sound and high intelligibility.
● 6.5" coaxial 2Way speaker
● Using High quality matching transformer (100V)
● Low impedance input terminal
- Provides a connection terminal for low impedance (8Ω) to play high-quality music.
● Suitable for music playing
- It is suitable for playing music with a wide band bandwidth ranging from 400Hz~4kHz.
● Offering an installation bracket
-It ensures an safe installation of speaker by providing High-quality speaker installation tools made up with
bracket-ring and bracket-rail.
|
Model
|
CS-680FH | |
| Type | 6.5" 2Way Coaxial Ceiling Speaker | |
| Driver | LF : 6.5", HF : 1" | |
| Power Handling(AES) | 80W | |
| Input Power | 100V | 80/40/20W |
| 70V | - | |
| Impedance | 100V | 125/250/500Ω |
| 70V | - | |
| LOW | 8Ω | |
| Power Selection | Toggle Switch | |
| Frequency Response(-10dB) | 140Hz ~ 20kHz | |
| Frequency Range(-20%) | 100Hz ~ 20kHz | |
| Sensitivity (1W/1m, 1kHz) | 88dB | |
| Maximum SPL[Cont] | 107dB | |
| Nominal Dispersion(Conical) | 1kHz | 180º *1 |
| 4kHz | 72˚ | |

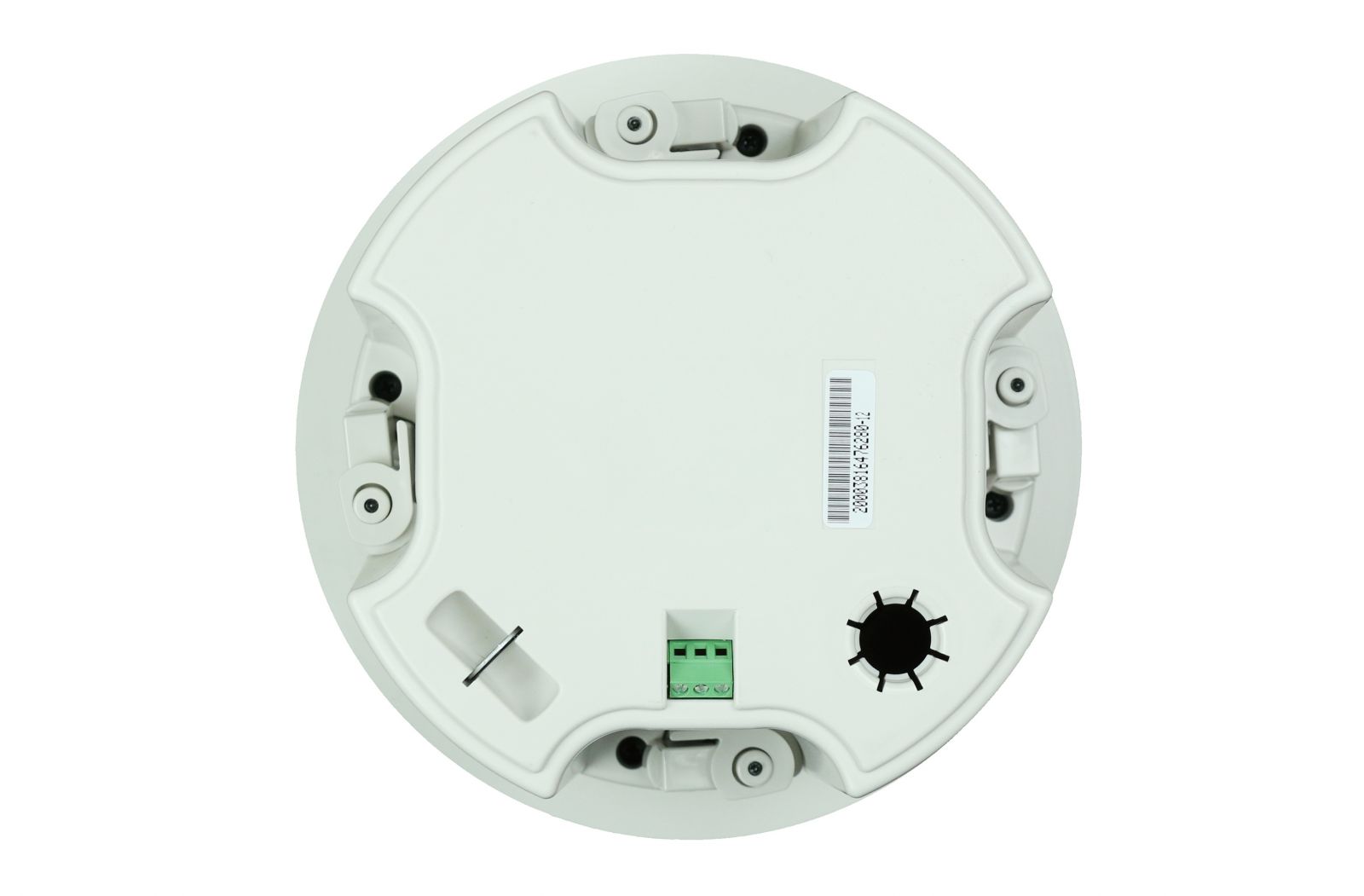

| Input connection | 3P Euroblock | |
| Enclosure Material | ABS (V0) | |
| Enclosure Color(Front) | Light Gray | |
| Grille Material | Metal Grille | |
| Grille Color | Light Gray | |
| Cut-Out Diameter(Ø, mm) | Ø200 ~ 205 | |
| Weight (Net) | 3.4kg | |
| Dimensions (Ø(WxH)xD, mm) | Ø230 x 168 | |
| Weather Resistant | IP34 | |
| Included Accessories | BKT-RING, BKT-RAIL | |
