Equalizer DBX 1215

Mã sp : Equalizer DBX 1215

Số lượng :

Quý khách vui lòng click các nội dung dưới đây để tham khảo các chính sách bán hàng của chúng tôi:

Giá bán: 13.500.000 Đ (giá tham khảo)

(Giá chưa bao gồm thuế 10% VAT)

Đặt hàng

Hotline: 0908677003

Mô tả sản phẩm
Thông số kỹ thuật

he dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1215 provides standard features like dual channels, 15 2/3 octave bands, ISO frequency centers, +/-12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other thoughtful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier.

The dbx 12 Series Equalizers were precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2 second power up delay were steps our engineers took to ensure compatibility for all installations. Only the best components were utilized, yielding a 10Hz to 50kHz frequency response, greater than 90dB SNR (ref +4dBu), less than 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of less than -80dB from 20Hz to 20kHz. All this attention to detail is contained in a 2U steel/aluminum chassis.

Switchable boost/cut ranges of ±6 or ±15 dB

· Electronically balanced/unbalanced inputs

· Servo balanced/unbalanced inputs

· RF filtered inputs and outputs

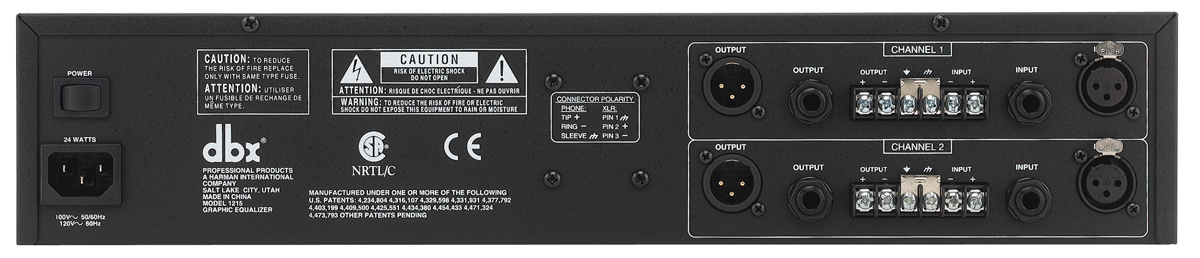

· XLR, Barrier Strip, and 1/4" TRS connectors

· -12dB/+12dB input gain range

· 18dB/octave 40Hz Bessel low-cut filter

· Chassis/signal ground lift capability

· Internal power supply transformer

· Power-off hardwire relay bypass with 2-second power-up delay

Specifications

Input Connectors	1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Input Type	Electronically balanced/unbalanced, RF filtered
Input Impedance	Balanced 40 kOhm, unbalanced 20 kOhm
Max Input	>+21dBu balanced or unbalanced
CMRR	>40dB, typically >55dB at 1kHz
Output Connectors	1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Output Type	Impedance-balanced/unbalanced, RF filtered
Output Impedance	Balanced 200 ohm, unbalanced 100 ohm
Max Output	>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth	20Hz to 20kHz, +0.5/-1dB
Frequency Response	<10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range
Dynamic Range	109dB; 115dB
Signal to Noise Ratio	90dB, 97dB
THD+Noise	<0.005%
Interchannel Crosstalk	<-80db, 20Hz to 20kHz
Bypass Switch	Bypasses the graphic equalizer section in the signal path
Low cut Switch	(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
Range Switch	(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
I/O Meter	4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
Indicators	EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)
Operating Voltage	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption	24W
Power Connector	IEC receptacle
Dimensions	3.5" H X 19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
Unit Weight	8.5 lbs. (3.9 kg)
Shipping Weight	9.5 lbs. (4.3 kg)
