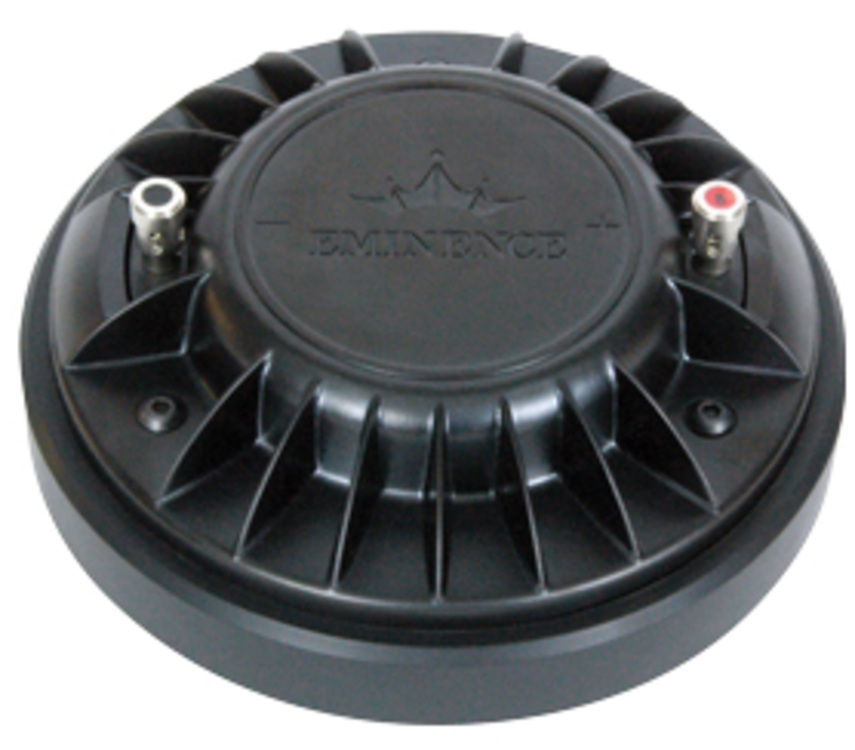

Củ treble Eminence PSD:3006-8
Công suất :100 W , MADE IN USA

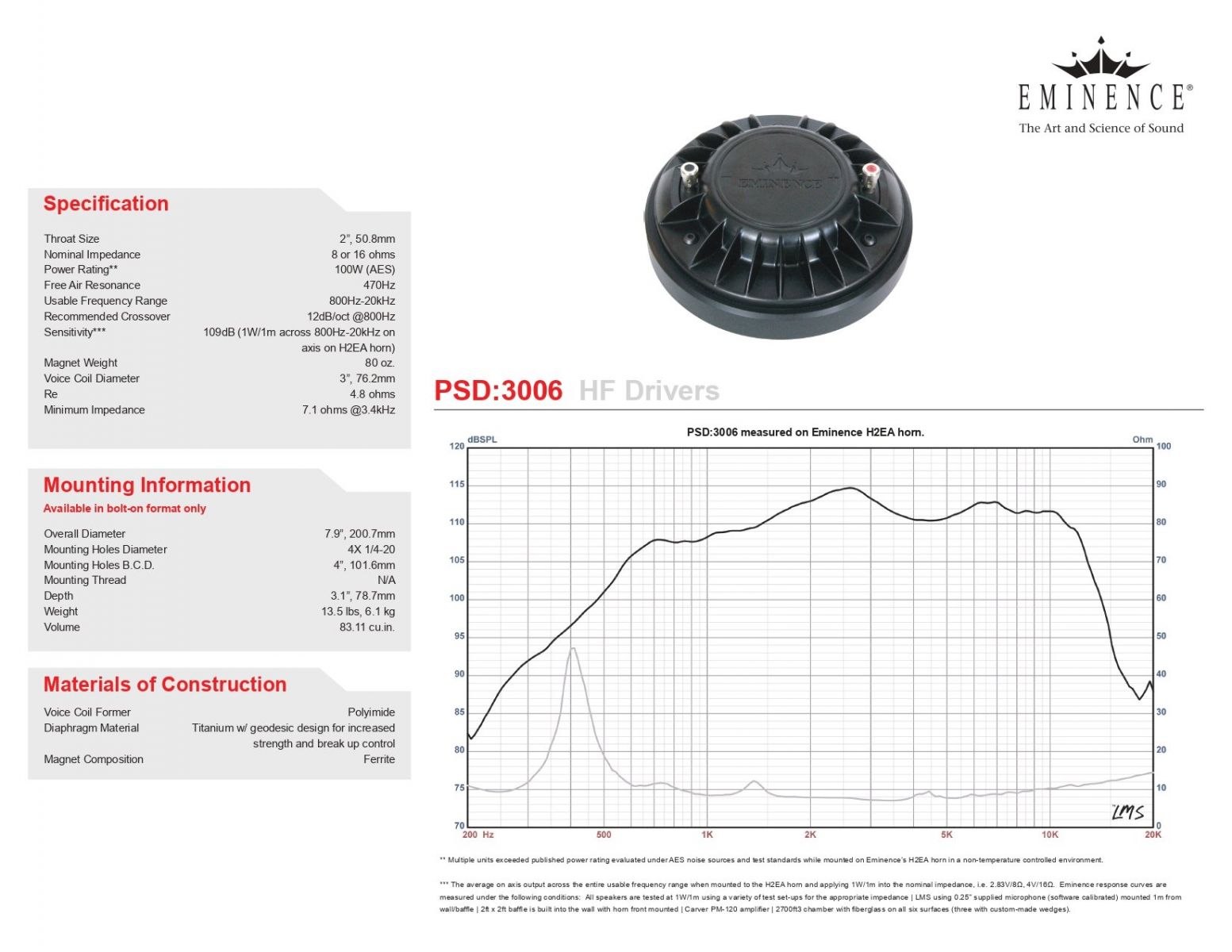

SPECIFICATION
- Throat Size 2", 50.8mm
- Nominal Impedance* 8Ω
- Minimum Impedance 7.1 ohm @ 3.4 kHz
- Power Rating** 100 W (AES)
- Resonance 0.47kHz
- Usable Frequency Range 800Hz-20kHz
- Recommended Crossover 800 Hz / 12 dBkHz
- Sensitivity*** 108.8
- Magnet Material Ferrite
- Magnet Weight 80oz, 2.27kg
- Voice Coil Diameter 3" / 76.2mm
- Voice Coil Former Polyimide
- Diaphragm Material Titanium w/ geodesic ribs for increased stiffness and break-up control.
- DC Resistance (Re) 4.8Ω
- MOUNTING INFORMATION
- Overall Diameter 7.9", 200.7mm
- Driver Volume Displaced 0.04 cu.ft., 1.36 liters
- Depth 3.1", 78.7mm
- Weight 13.2 lbs, 6 kg
- Mounting Thread N/A
- Mounting Holes Diameter 4X 1/4-20
- Mounting Holes B.C.D. 4 in. 101.6 mm
