Bộ trung tâm micro hội nghị Takstar DG-U100
• Connects up to 83 mic units within signal coverage, allowing simultaneous speech from 1~4 persons
• Real-time tracking of speakers by connecting to cameras; controls up to 7 cameras atthe same time
• Supports multiple PTZ camera control protocols such as Sony Visca, Pelco-P and Pelco-D
• Smart LAN control software for managing all units in one integrated interface, easy to deploy
• Infrared sync for greater ease on setting up conference
• Built-in 15-band EQ for each channel, adjustable as required
• Remote gain control on discussion units, catering to different speakerrequirements
• SUBG band data scheduling technology, wireless digital audio/control signal processing, farther transmission and better anti-interference
• Intelligent power management lowers battery consumption by auto shutdown of discussion units when control unitis powered off
• Remote frequency changer allows synchronizing frequency changes remotely between control unit and discussion units
• Supports two discussion modes: FIFO (First-in-First-out) or No-Delegate mode

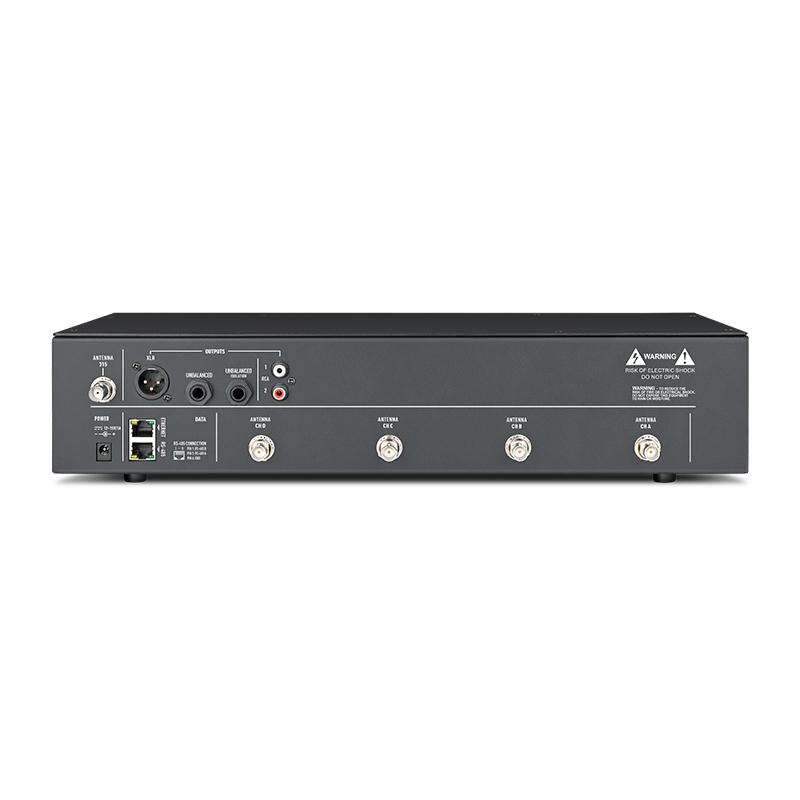

• XLR/TRS/TRS-Isolated outputs for connection with various audio equipment
• 2U rack unit size installs into a standard 19" rack mount
Control Unit(CU) Parameters
• Power Supply: DC 12V/1A
• Frequency: call frequency: 640-692MHz, scheduling frequency: 315-316MHz
• Receiving Sensitivity: -105dBm
• S/N Ratio: > 80dB
• T.H.D: < 0.5%dB ＠ 1KHz
• Effective Range: 70m (in open area)
• Number of Discussion Channels: 4 X 83
• Network Communication Protocol: UDP
• Camera Control Mode: RS-485, 9600 baud
• Power Consumption: 6W
• Product Dimensions: 430×100×220mm
• Net Weight: 3.5Kg
Discussion Unit Parameters
• Power Supply: DC 3V, AA 1.5V * 2
• Transmit Power(antenna port): ≥ 10mW
• Mic Capsule: condenser, unidirectional
• Continuous Use Time: 8hrs (subjectto battery capacity)

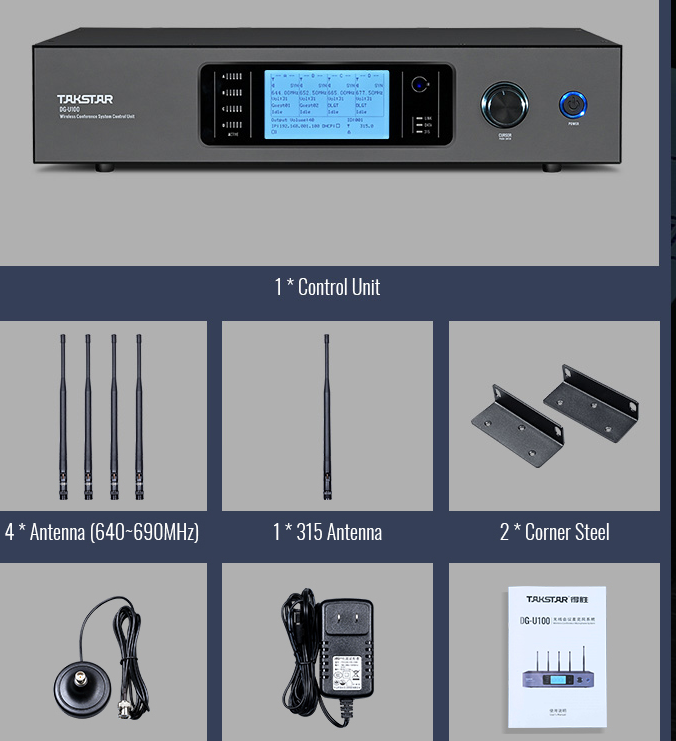

Control Unit
• Control Unit 1pc
• Antenna (640~690MHz) 4pcs
• 315 Antenna 1pc
• Corner Steel 2pcs
• Extension Suction Cup Antenna 5pcs
• Power Adapter 1pc
• User Manual 1pc

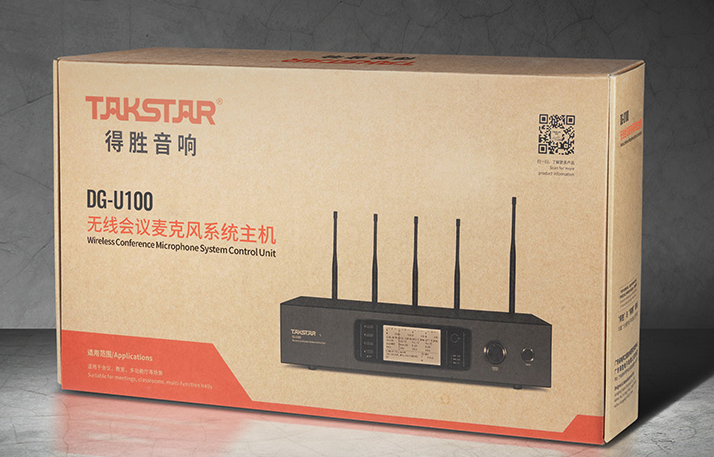

*PACKAGING: Kraft box
Discussion Unit
• U1 Pluggable Gooseneck M
Optiona
• U2 Pluggable Square Tube Mic Optiona
• DG-U100T1 Mic Base Optiona
• DG-U100T2 Mic Base Optiona
