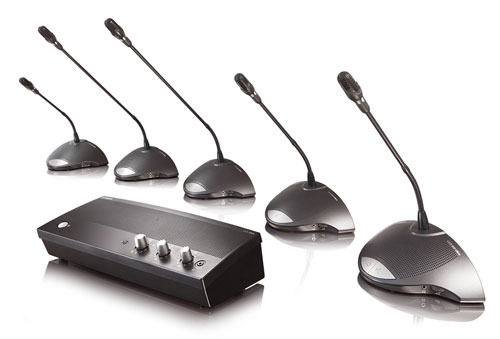

Bộ trung tâm hội thảo Bosch CCS‑CU
Digital Acoustic Feedback Suppression
Discussion control without operator
Controls up to 150 contribution devices
Built-in monitor loudspeaker
Mains voltage 100 to 240 VAC ± 10 %
Current consumption maximum 0.9 A (100 VAC) to 0.3 A (240 VAC)
DC supply to contribution units 24 V ± 1 V (current limited)
Loudspeaker volume control mute (50 dB att.) + 10 steps of 1.9 dB
Limiter threshold level to unit 10 dB above nominal level loudspeaker / headphone
Gain reduction due to number of open microphones (NOM) ÷ NOM ± 1 dB
Nominal input (85 dB SPL) < 0.5
Max. input (110 dB SPL) < 0.5
Dimensions including feet(H x W x D) 84 x 361 x 143 mm(3.4 x 14.2 x 5.6 in)
Height of feet 5.5 mm (0.22 in)
Mounting tabletop (portable or fixed)19-inch rackflush mounting
Weight 1.5 kg (3.3 lb)
Material (top) polymer
Material (base) painted metal
Color (top) charcoal (PH10736)
Color (base) black (PH80007)
