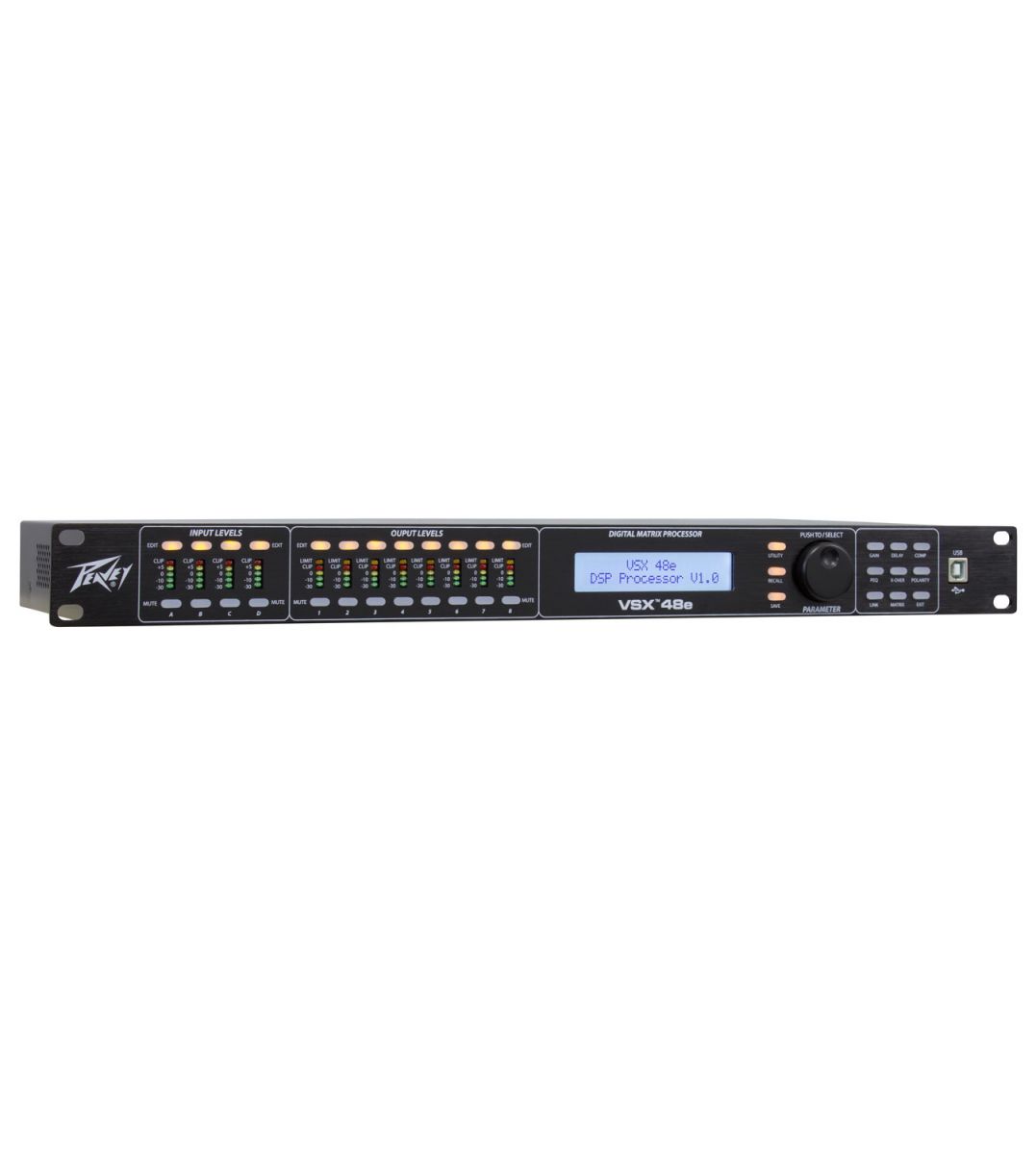

Peavey VSX™48e Contronller 4 in, 8 out DSP-based Loudspeaker Management System

Sản phẩm

Bộ phân tần số 4 in 8 out Peavey VSX 48e

Mã sp : Bộ phân tần số 4 in 8 out Peavey VSX 48e

Số lượng :

Giá bán: 15.000.000 Đ (giá tham khảo)

Đặt hàng

Hotline: 0908677003

Peavey VSX™48e Contronller 4 in, 8 out DSP-based Loudspeaker Management System

Balanced Inputs: VSX 48e 4
4 XLR balanced inputs and 8 XLR balanced outputs VSXe 48
Maximum input and output level +20 dBu, XLR balanced inputs and outputs
Frequency response 20 Hz to 20 kHz +0, -1 dB
5 segment LED meters with limit indication on each output
Every input features Gain, Mute, HP and LP filters, 8 bands of PEQ, polarity and Delay (680 mS)
Security lock
Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB (unweighted)
USB B port for setup and control
24 bit Delta-Sigma A/D and D/A converters
Every output features: 9 bands of PEQ, gain, compressor/limiter, polarity, Delay (680 mS), mute, and crossover/band-pass filters
Ethernet port for setup and control
Channels can be linked for simplified stereo operation
96 kHz Sample rate
Signal generator (sine, white noise, pink noise)
PC Editor Programs allow complete remote setup and operation via USB or Ethernet
Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)
Balanced Outputs: VSX 48e 8
EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2
5 segment LED meters on each input
THD+N < 0.01% at 1 kHz
Weight Unpacked: 5.80 lb(2.63 kg)
Weight Packed: 7.72 lb(3.5 kg)
Width Packed: 11.69"(29.6926 cm)
Height Packed: 21.14"(53.6956 cm)
Depth Packed: 4.9"(12.446 cm)
