Mackie SP260 Controller
2-input, 6-output system processor for passive and powered PAs
Offering sophisticated EQ, crossover, dynamics processing and system protection, the Mackie SP260 2x6 Speaker Processor provides complete system optimization for both passive and powered systems.
Five different operating modes cover a wide range
of systems. Each input and output is loaded with a huge range of processing including flexible EQ, crossover, delay and limiting solutions. It delivers everything you need to professionally optimize loudspeaker systems of nearly any size.
The SP260 utilizes high-end 24-bit AKM® AD/DA converters with 120 dB dynamic range for class-leading sound quality. With 24 user-definable presets and flexible I/O for simple routing and configuration, the SP260 is an ultra-flexible processor, ideal for a wide range of portable and permanent applications.
FEATURES:
■ Professional 2-input, 6-output system processor for passive and powered PAs
■ Sophisticated, intuitive EQ, crossover, delay and dynamics processing optimizes and protects your system
■ High-end 24-bit AKM® AD/DA converters with 120 dB dynamic range

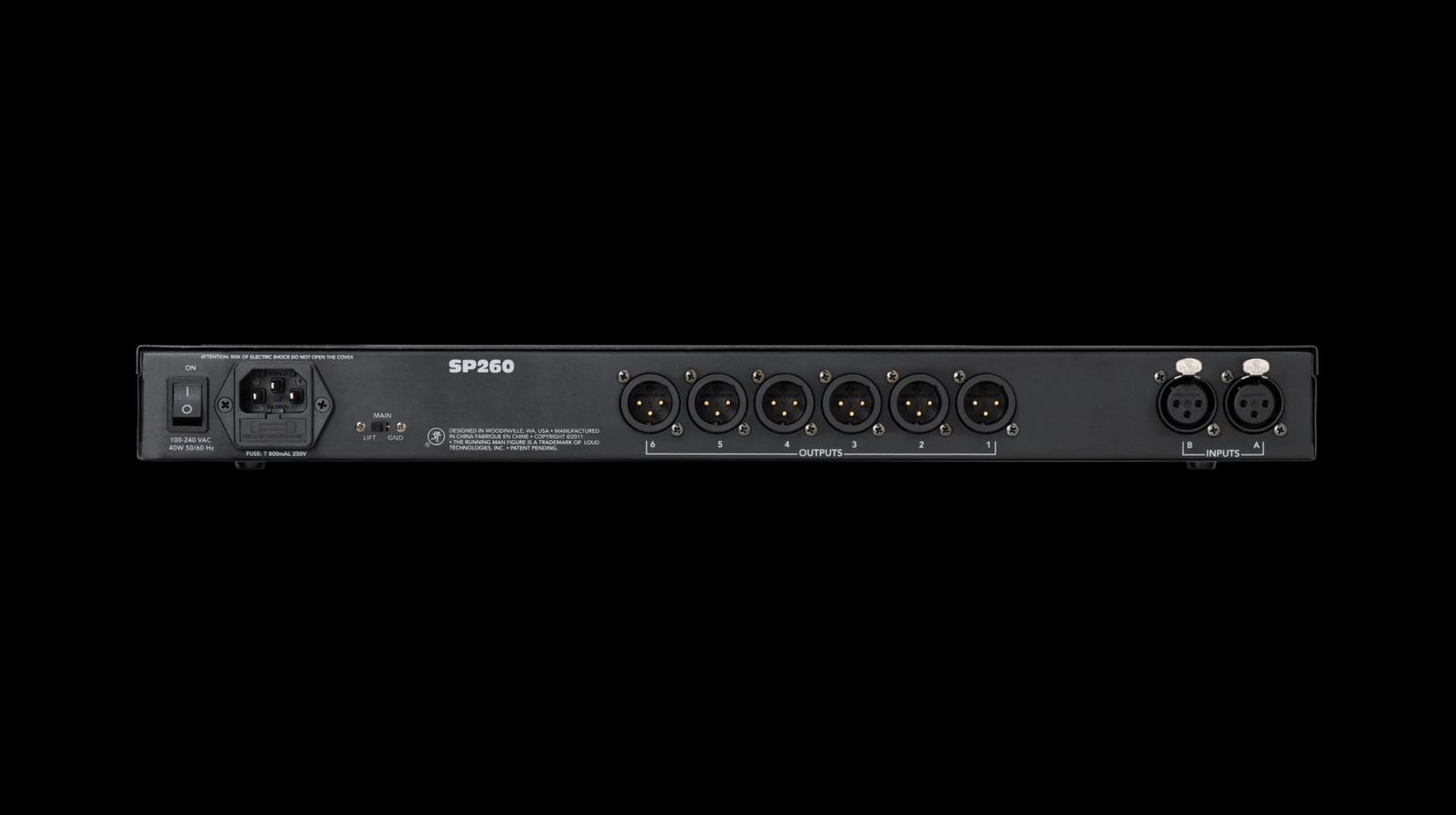

■ Two balanced XLR inputs with level control, mute, 600ms delay and 5-band parametric / shelving EQ
■ Six balanced XLR outputs with level control, mute, polarity invert, dedicated high and low pass filters, 7-band parametric / shelving EQ, 600ms delay, and limiting
■ Powerful limiter on every output for ultimate protection

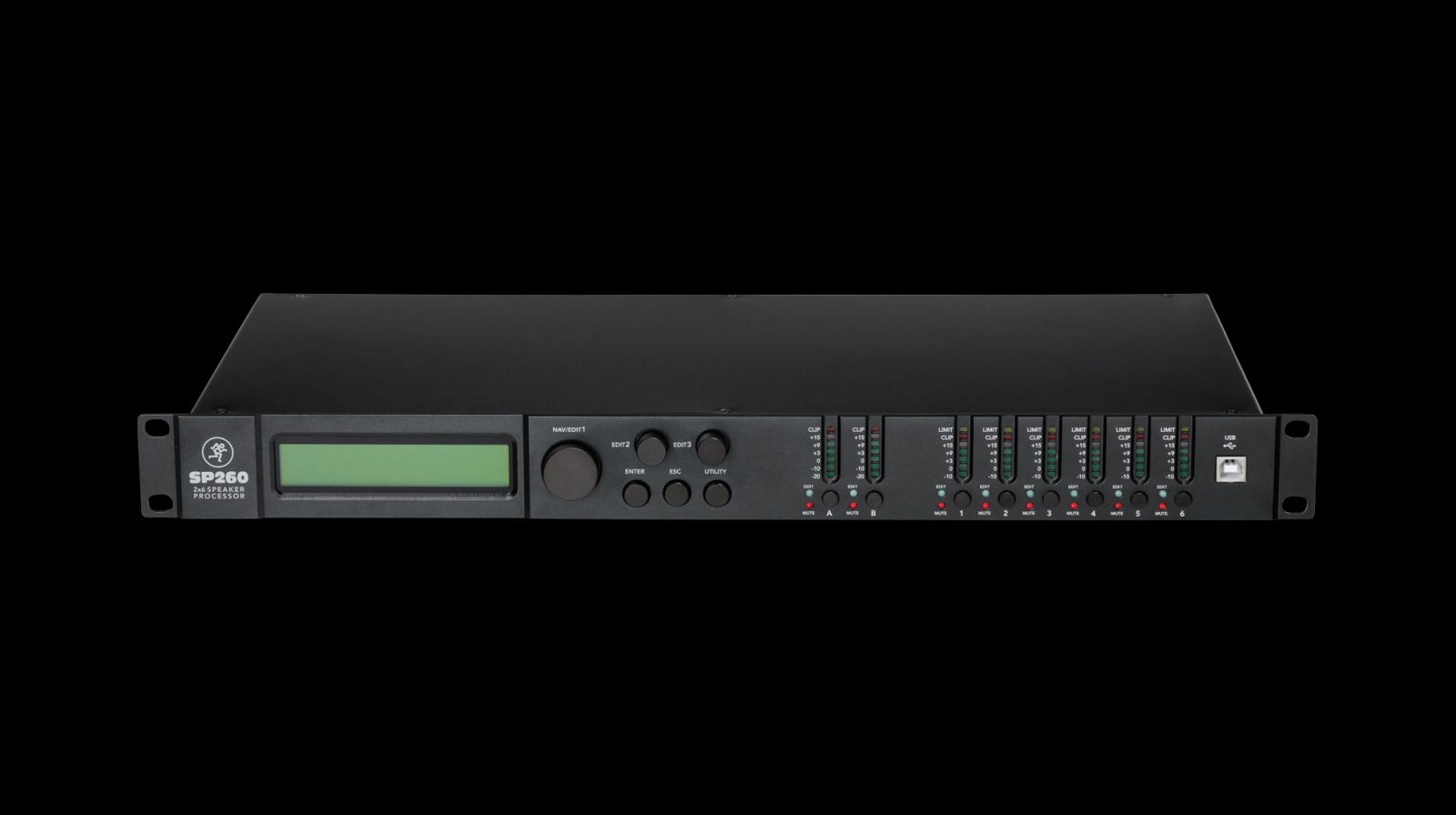

■ Convenient front-panel controls for parameter editing and input/output muting
■ USB port for simple programming via PC
■ Linkable inputs and outputs for easy stereo configuration
■ 7-segment LED metering for input / output level or limiter activity
■ 5 operating modes: 2 x stereo + sub, 3 x stereo, 2 x 2-way + sub, 2 x 3-way and 1 x 6-way
■ 24 presets for storing your Mackie or other system parameters
■ Switchmode power supply: 100V – 240V
■ Compact, single rack unit design
■ Approximate shipping weight: 8.8 lb / 4.0 kg
