Bộ Monitor không dây Shure P3TRA215CL

Sản phẩm
Bộ Monitor không dây Shure P3TRA215CL
  • Bộ Monitor không dây Shure P3TRA215CL
  • Bộ Monitor không dây Shure P3TRA215CL
  • Bộ Monitor không dây Shure P3TRA215CL
  • Bộ Monitor không dây Shure P3TRA215CL
  • Bộ Monitor không dây Shure P3TRA215CL
  • Bộ Monitor không dây Shure P3TRA215CL

Bộ Monitor không dây Shure P3TRA215CL

Mã sp : Bộ Monitor không dây Shure P3TRA215CL

Số lượng :

Giá bán: 29.000.000 Đ (giá tham khảo)
(Giá chưa bao gồm thuế 10% VAT)
Hotline: 0908677003

Bộ Monitor không dây Shure P3TRA215CL
Wireless Personal Monitor System Set

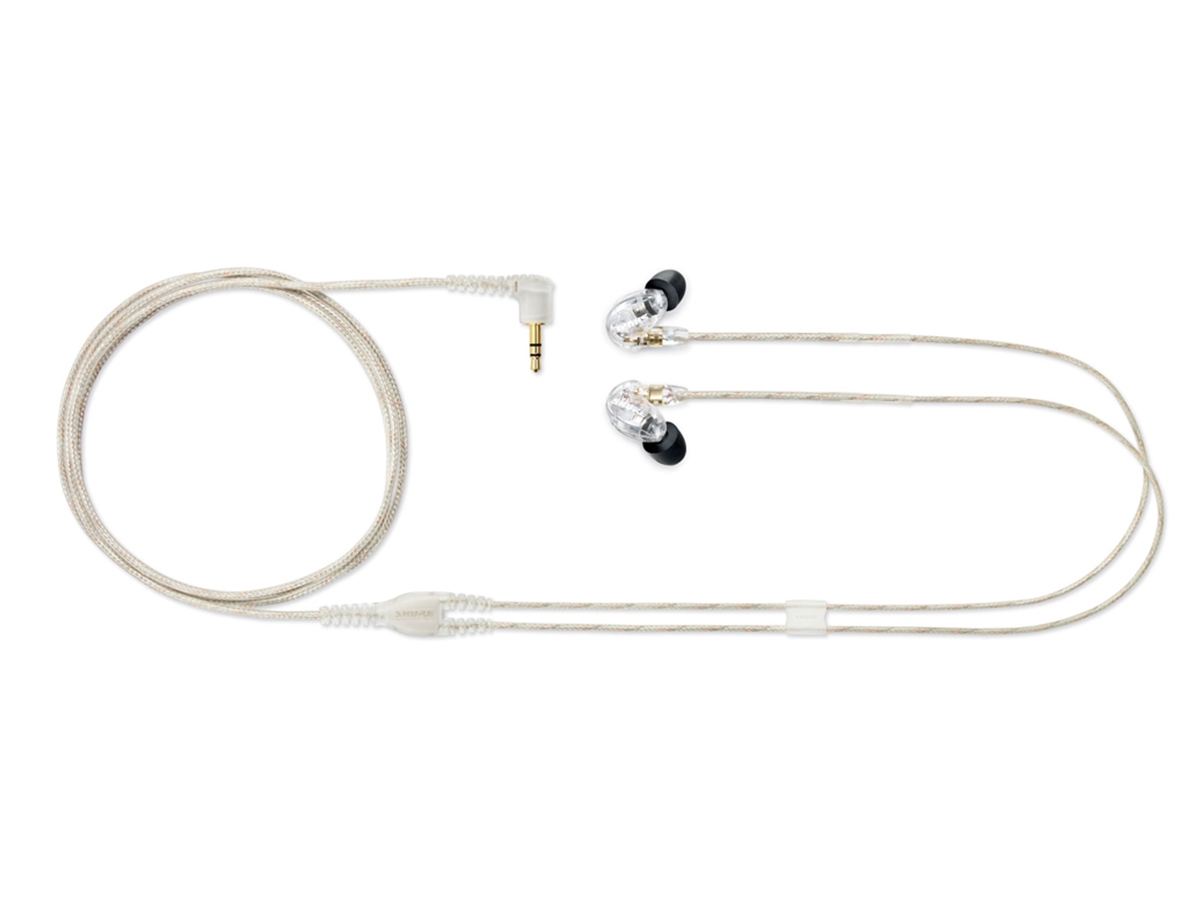

Includes P3RA, P3T, SE215, rackmount and hardware kits, ¼ wave antenna, BNC bulkhead adapter, BNC cable, power supply, battery adapter kit, 2 AA batteries, zipper bag, and user guide


System Features
• Send two channels of audio wirelessly to performers onstage
• 24-bit digital audio provides clear, detailed sound
• Patented Audio Reference Companding sounds more like wired
• Up to 90 dB signal-to-noise ratio
• Exceptionally wide stereo separation
• Solid analog RF connection over a 300 ft (90 m) range
• Create a personal mix from the bodypack with MixMode® technology or stereo mode
• Frequency scan and IR sync quickly finds and assigns a clean channel
• Half-rack, single channel transmitter with included rack mount kit
• P3R bodypack systems available with SE112 Sound Isolating™ Earphones
• P3RA professional bodypack systems available with SE215 Sound Isolating™ Earphones


PSM®300 System Specifications

  • RF Carrier Range 488–937.5 MHz (Varies by region, see frequency range and output power table)
  • Compatible Frequencies Per band: up to 15
  • Tuning Bandwidth 24 MHz maximum (Note: varies by region)
  • Operating Range Environment dependent: 90 m (300 ft)
  • Audio Frequency Response 38 Hz–15 kHz
  • Signal-to-Noise Ratio: A-weighted 90 dB (typical)
  • Total Harmonic Distortion: ref. ±34 kHz deviation @1 kHz <0.5% (typical)
  • Companding Patented Shure Audio Reference Companding
  • Spurious Rejection ref. 12 dB SINAD: >80 dB (typical)
  • Frequency Stability ±2.5 ppm
  • MPX Pilot Tone 19 kHz (±1 Hz)
  • Modulation FM*, MPX Stereo
  • (ref. ±34 kHz deviation @ 1 kHz)
  • Operating Temperature -18 °C (0 °F) to +63 °C (145 °F)

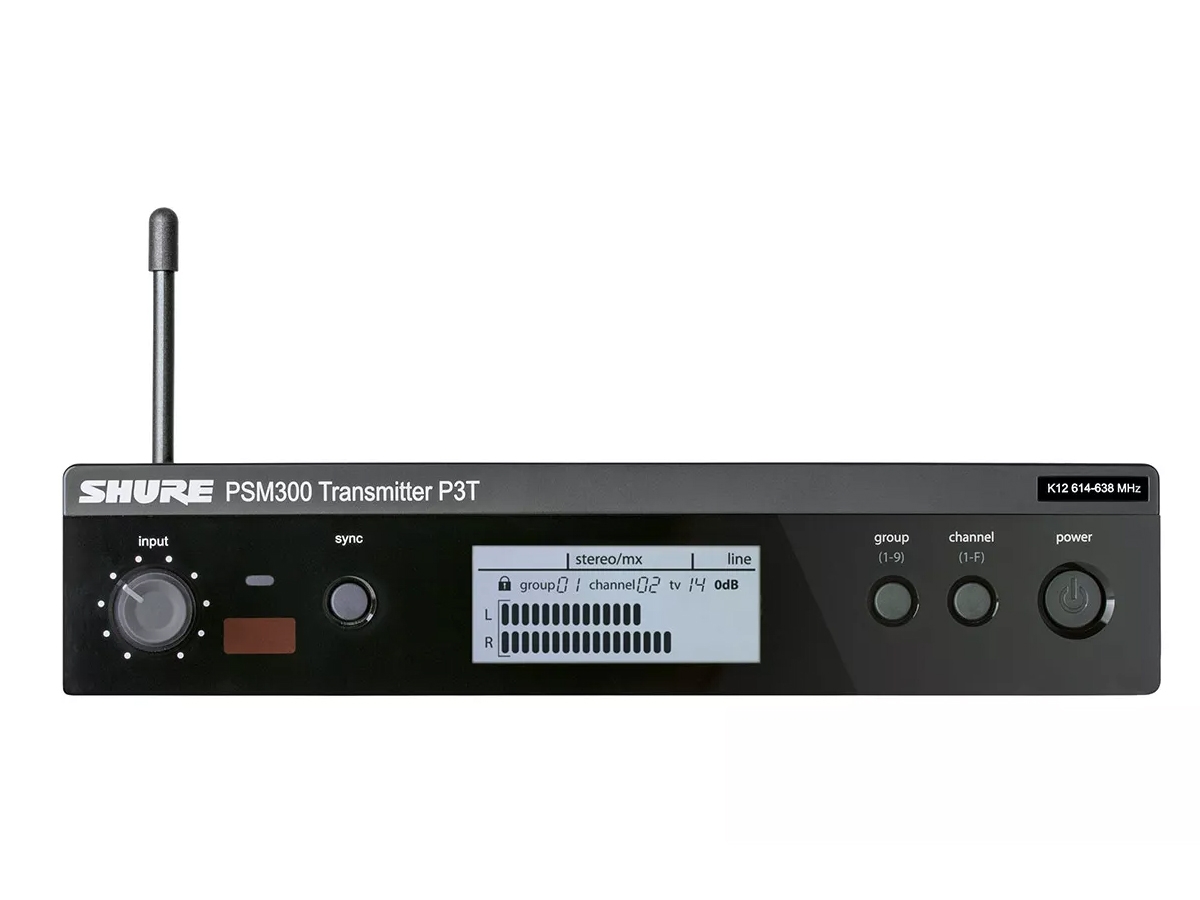

P3T Wireless Transmitter
Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a
bodypack receiver up to 300 feet away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The
rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation.

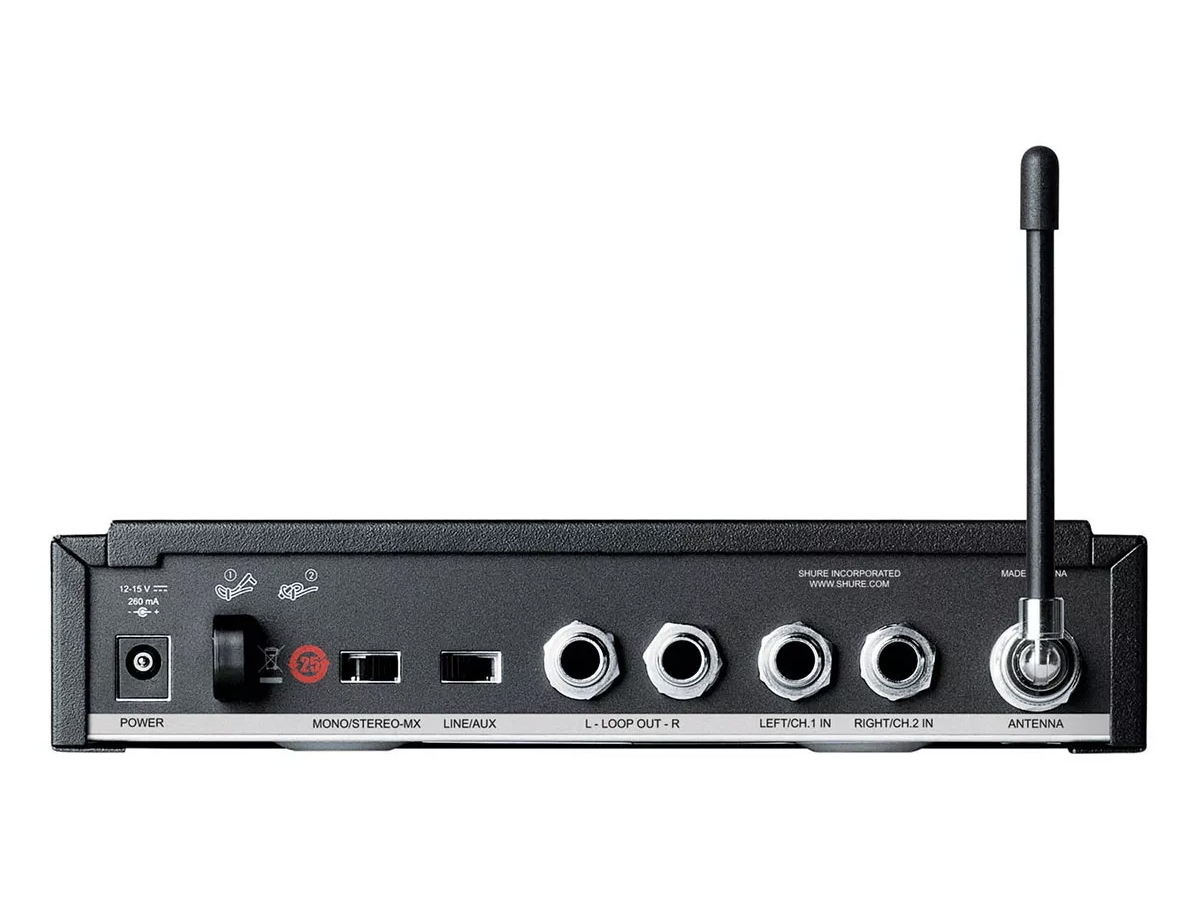

Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.
• Single channel, half-rack transmitter with included rack mount kit
• Sends a stereo or mono mix wirelessly to performers onstage
• Rock-solid wireless connection to P3R receiver over 300 ft (90 m) range
• One-touch IR sync instantly links transmitter to receiver
• Up to 30 mW output power (region dependent)
• 24 MHz tuning range (region dependent)
• ¼" (6.3 mm) TRS balanced inputs and loop outputs
• High-contrast LCD menu with detailed L/R audio output meters
• Detachable antenna
• External power supply
• Selectable line/aux level

Product Specifications

  • RF Output Power: 10, 20, 30 mW
  • Note: varies by region
  • RF Output Impedance 50 Ω (typical)
  • Net Weight 783 g (27.6oz.)
  • Dimensions 43 × 198 × 172 mm (1.7 × 7.8 × 6.8 in.), H × W × D
  • Power Requirements 12–15 V DC, 260 mA maximum
  • Audio Input:
  • Connector Type 6.35 mm (1/4") TRS
  • Polarity Tip positive with respect to ring
  • Configuration Electronically balanced
  • Impedance 40 kΩ (actual)
  • Nominal Input Level Switchable, +4 dBu, -10 dBV
  • Maximum Input Level +4 dBu: +22 dBu
  • -10 dBV: +12.2 dBu
  • Pin Assignments Tip=hot, Ring=cold, Sleeve=ground
  • Phantom Power Protection Up to 60 V DC
  • Audio Output:
  • Connector Types 6.35 mm (1/4") TRS
  • Configuration Electronically balanced
  • Impedance Connected directly to inputs

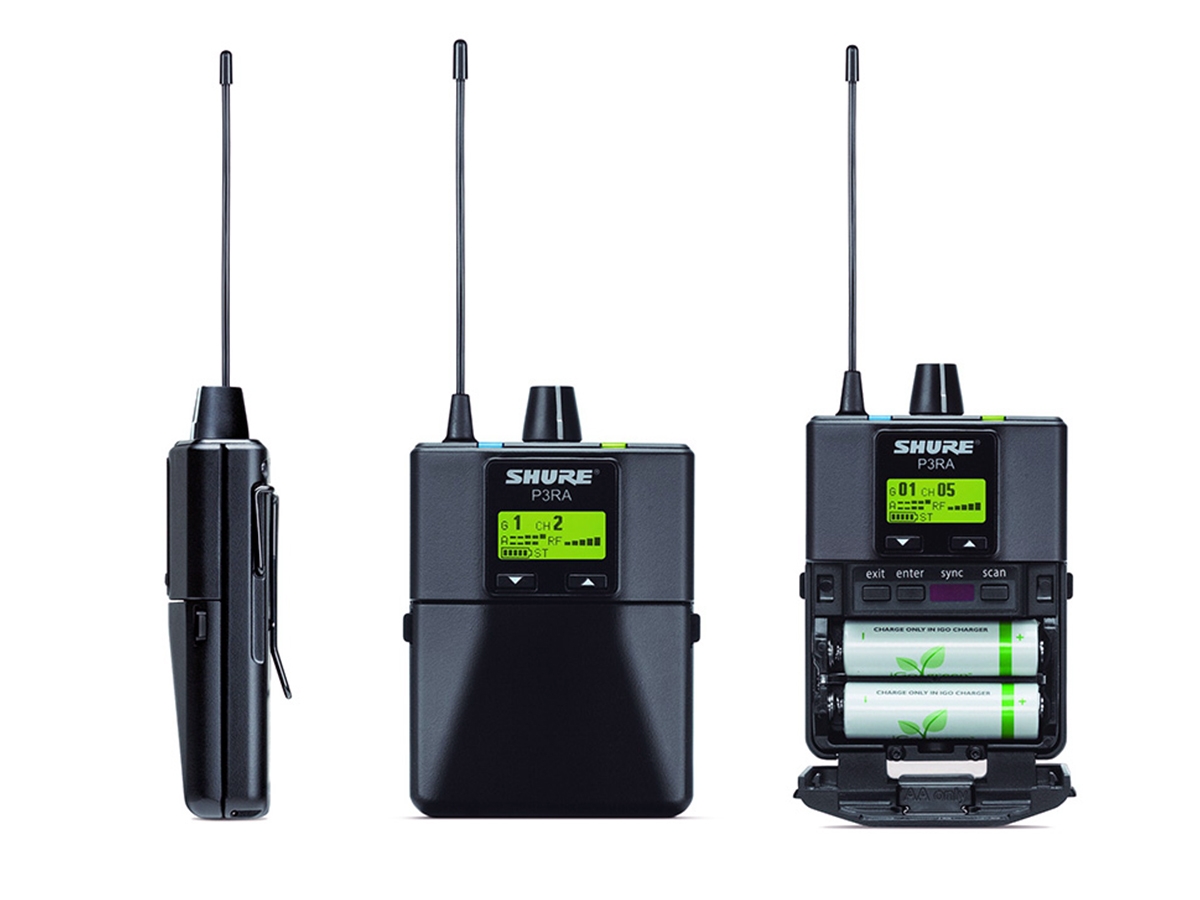

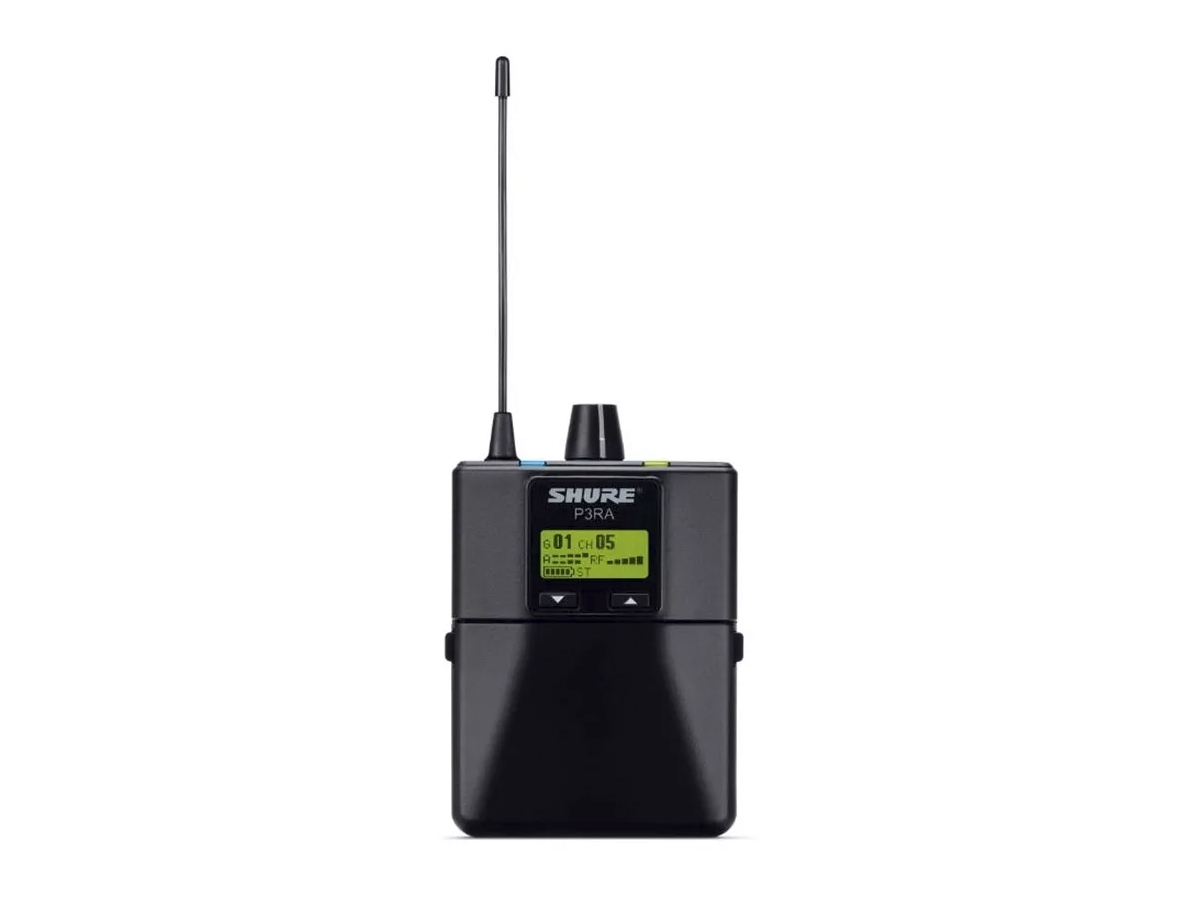

P3RA Professional Wireless Bodypack Receiver

Receiver
The P3RA is a wireless stereo bodypack receiver for use with the PSM®300 Personal Monitor System.
With detailed 24-bit digital audio and reliable wireless performance, the P3RA bodypack delivers professional personal monitoring to
any corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.
Find a wireless channel easily, using the scan function to automatically select the cleanest frequency available from a wide tuning
bandwidth. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio.
EQ and volume limiting further individualize the sound via the high-contrast LCD menu. With a compact and rugged aluminum body,
the P3RA ensures a long lifetime of use and easily clips onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours
of continuous use. The optional SB900A rechargeable battery (sold separately) extends runtime and allows easy in-unit charging.
• Rugged, all-metal construction
• High-contrast LCD screen with menu-based navigation
• 2-band shelving EQ with high and low boost
• Volume limiter sets the maximum gain level range for the volume knob
• MixMode® technology enables adjustment of two independent monitoring mix levels
• Stereo mode enables adjustment of left/right balance
• Frequency scan and IR sync quickly finds and assigns a clean channel
• 2 AA batteries provide up to 6 hours of continuous use
• Optional Shure SB900A lithium-ion rechargeable battery provides extended runtime
• Power and battery status LED
• 5-segment battery life meter
• Power save mode preserves battery life when earphones are not connected

Specifications

  • Active RF Sensitivity (at 20 dB SINAD): 2.2 μV
  • Image Rejection >90 dB
  • Adjacent Channel Rejection >60 dB
  • Intermodulation Attenuation >50 dB
  • Blocking >60 dB
  • Audio Output Power/ 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
  • Minimum Load Impedance 16 Ω
  • Headphone output 3.5 mm (1.8") stereo
  • Net Weight 196 g (6.9 oz.) (with batteries)
  • Dimensions 99 × 66 × 23 mm (H × W × D)
  • Battery Life (continuous use)
  • 4–5.5 hours, AA batteries
  • 5.5–7 hours, SB900A battery
