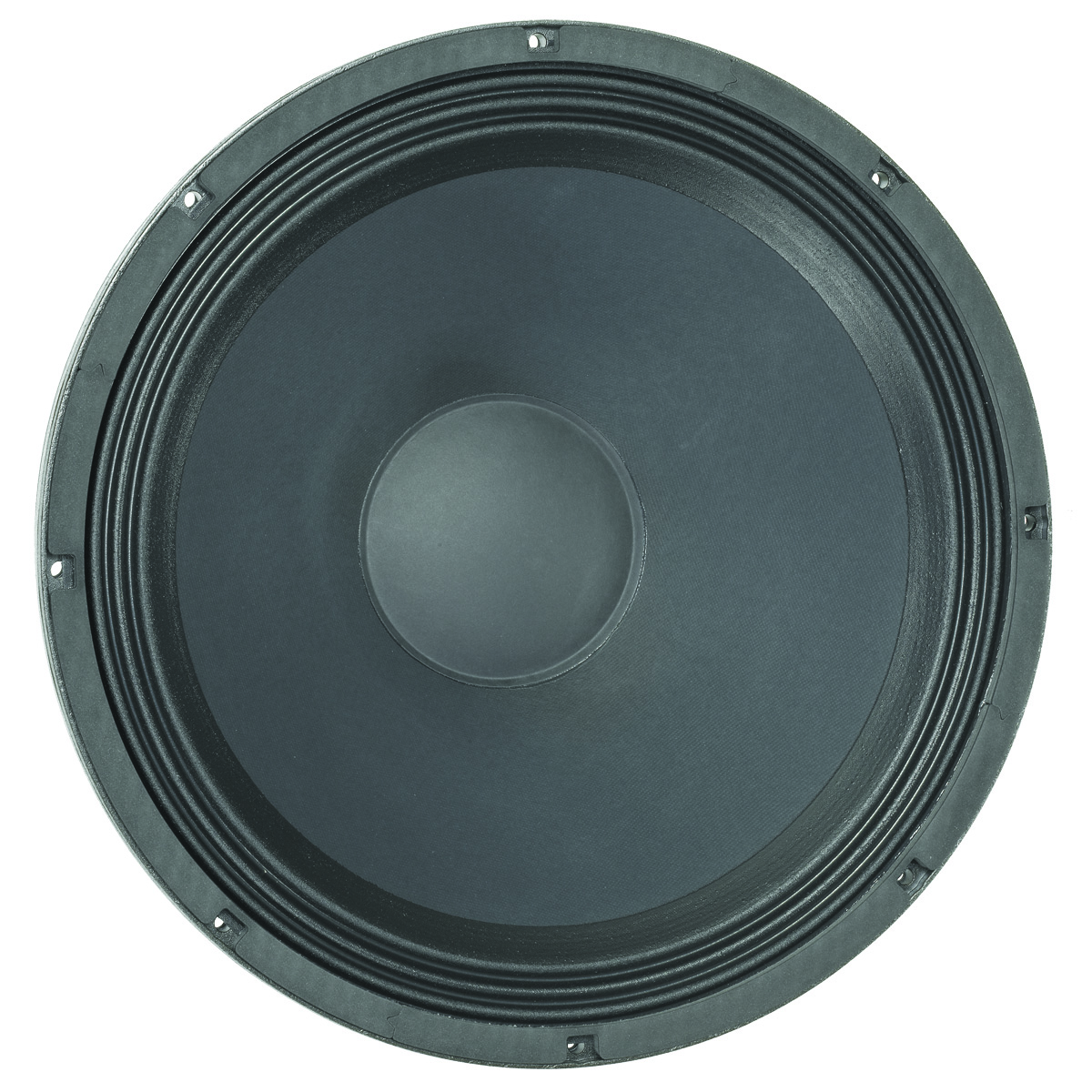

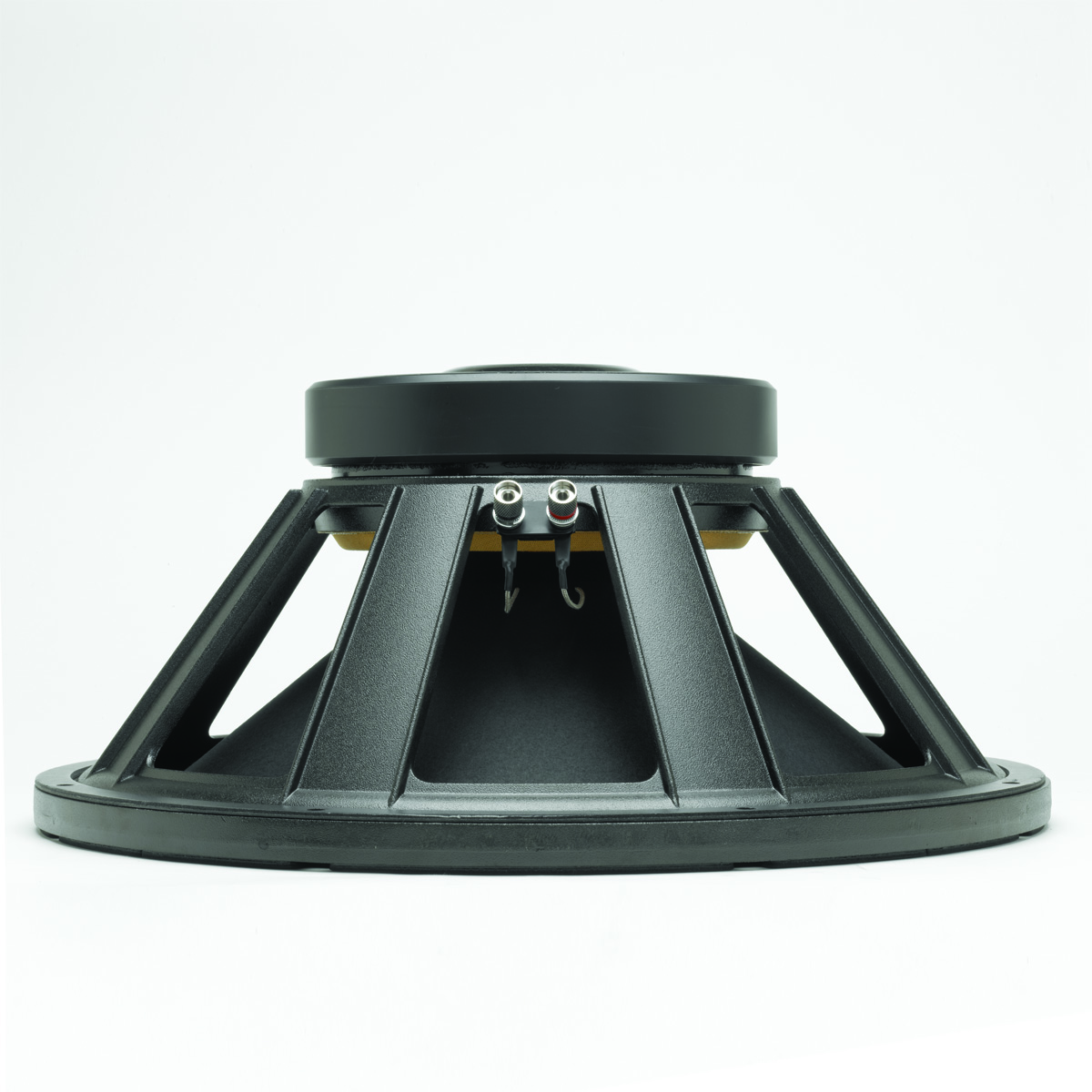

Loa bass chuyên sub 5 tất Eminenece SIGMA PRO 18A-2
Công suất :650- 1300W / sản xuất tại Mỹ
SPECIFICATION
Nominal Basket Diameter 18", 457 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 1300 W
Watts 650 W
Resonance 28 Hz
Usable Frequency Range 41 Hz - 2.4 kHz
Sensitivity* 99 dB
Magnet Weight 120 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 28 Hz
DC Resistance (Re) 6.29 Ω
Coil Inductance (Le) 1.9m H
Mechanical Q (Qms) 8.28
Electromagnetic Q (Qes) 0.3
Total Q (Qts) 0.29
Compliance Equivalent Volume (Vas) 441.2 liters / 15.58 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 695 cc
Mechanical Compliance of Suspension (Cms) 0.24 mm/N
BL Product (BL) 22.1 T-M
Diaphragm Mass Inc. Airload (MMs) 130 grams
Efficiency Bandwidth Product (EBP) 93
Maximum Linear Excursion (Xmax) 6.1 mm
Surface Area of Cone (Sd) 1140 cm2
Maximum Mechanical Limit (Xlim) 18 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 93-212 liters / 3.3-7.5 cu.ft.
Driver Volume Displaced 0.234 cu.ft. / 6.62 liters
Overall Diameter 18", 457.2 mm
Baffle Hole Diameter 16.56", 420.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 17.25", 438.2mm
Depth 8.15", 207 mm
Net Weight 24.5 lbs, 11.11 kg
Shipping Weight 28.1 lbs, 12.75 kgs
