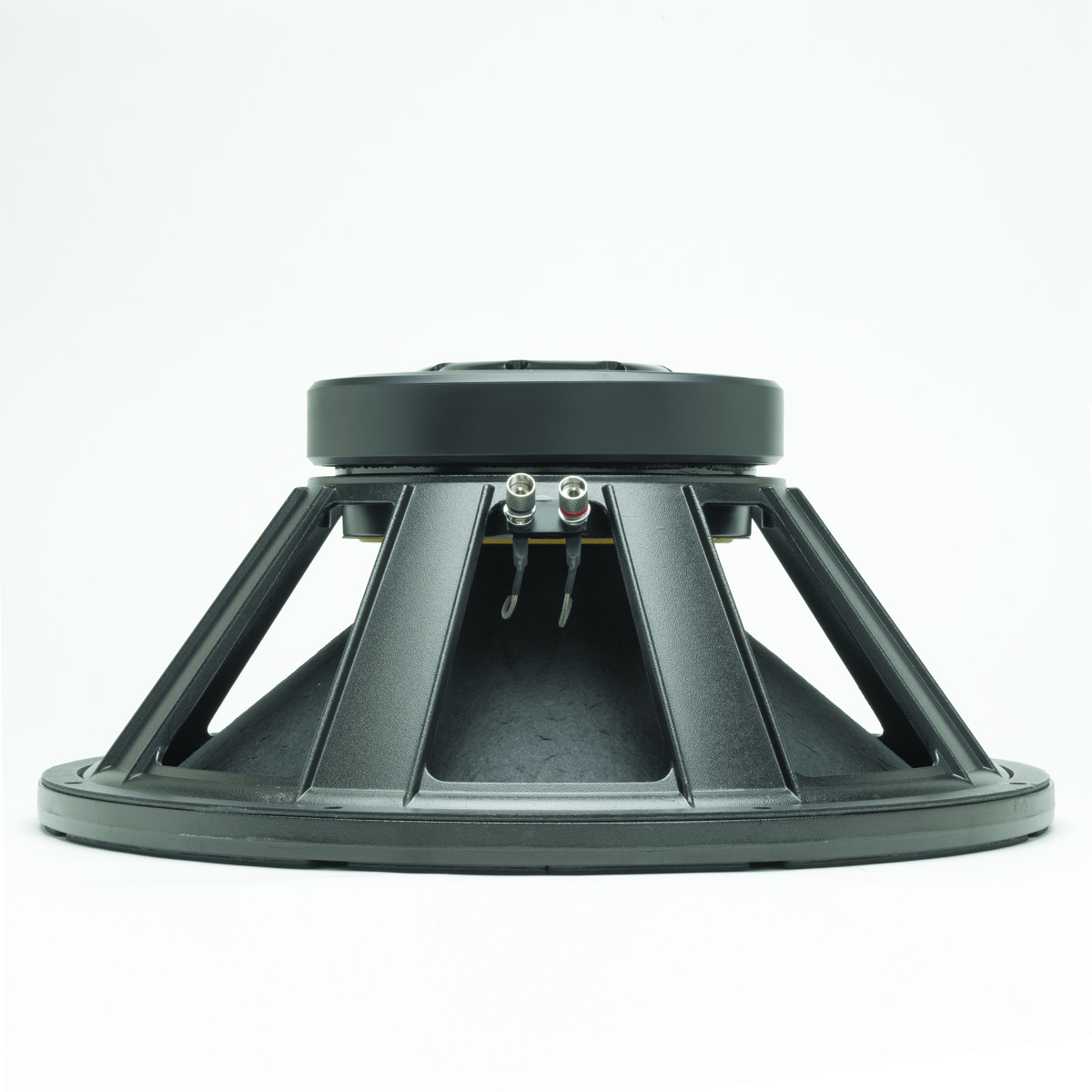

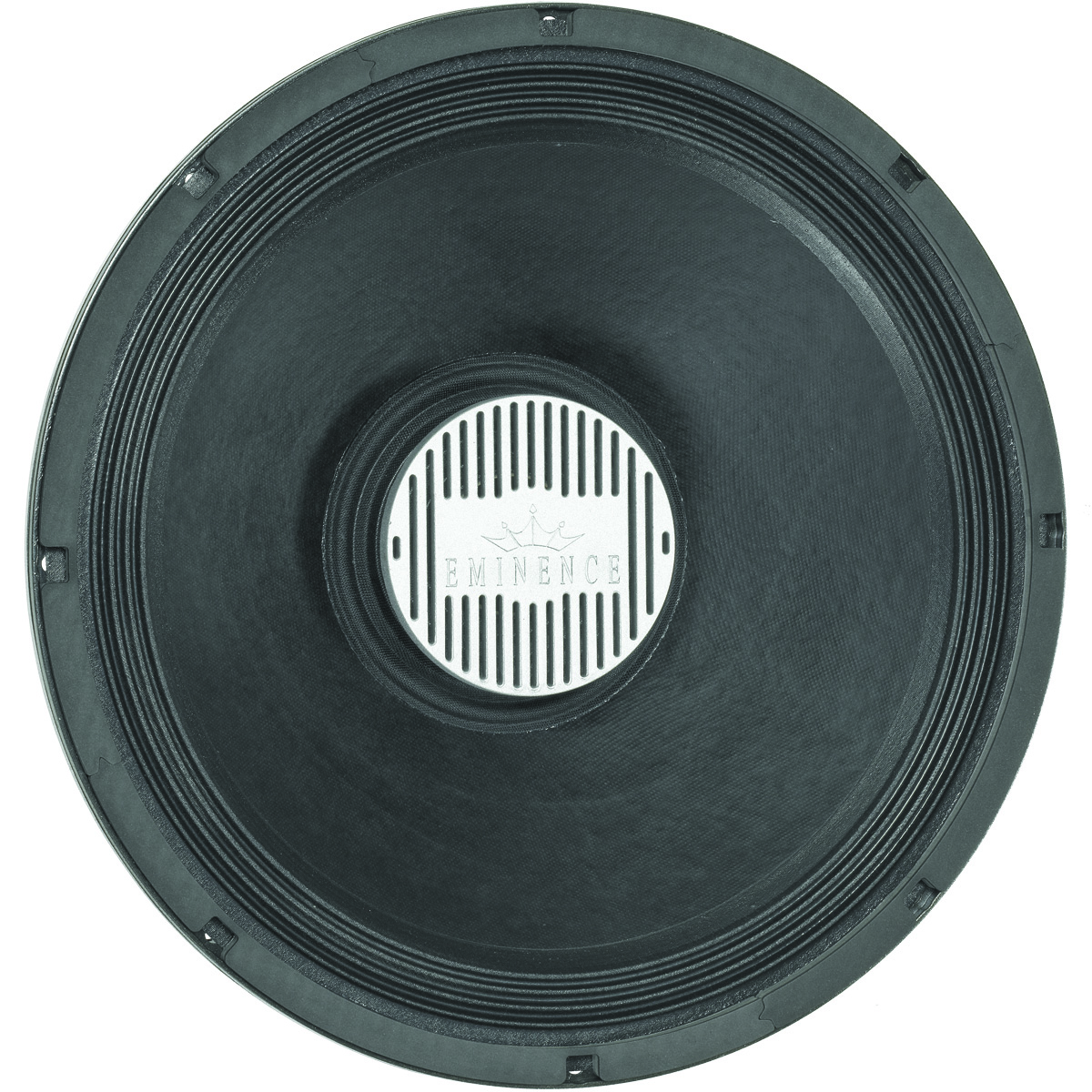

Loa bass chuyên sub 5 tất Eminenece KILOMAX® PRO 18A
Công suất :1250 - 2500W / sản xuất tại Mỹ
SPECIFICATION
Nominal Basket Diameter 18", 457 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 2500 W
Watts 1250 W
Resonance 32 Hz
Usable Frequency Range 33 Hz - 0.3 kHz
Sensitivity* 95.8 dB
Magnet Weight 109 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 4", 102 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 32 Hz
DC Resistance (Re) 5.07 Ω
Coil Inductance (Le) 1.59m H
Mechanical Q (Qms) 10.15
Electromagnetic Q (Qes) 0.49
Total Q (Qts) 0.47
Compliance Equivalent Volume (Vas) 331.5 liters / 11.71 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 1159 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 17.2 T-M
Diaphragm Mass Inc. Airload (MMs) 143 grams
Efficiency Bandwidth Product (EBP) 65
Maximum Linear Excursion (Xmax) 10 mm
Surface Area of Cone (Sd) 1159 cm2
Maximum Mechanical Limit (Xlim) 19.2 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 104.8-172.7 liters / 3.7-6.1 cu.ft.
Vented 118.9-303 liters / 4.2-10.7 cu.ft.
Driver Volume Displaced 0.234 cu.ft. / 6.62 liters
Overall Diameter 18", 457.2 mm
Baffle Hole Diameter 16.56", 420.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 17.25", 438.2mm
Depth 8.15", 207 mm
Net Weight 27.4 lbs, 12.43 kg
Shipping Weight 30.9 lbs, 14.02 kgs
