Controller 4 in 8 out Soundking PR-480
• 32-bit DSP SHARC process, 48kHz sampling rate, 24-bit AD/DA convert.
• Input processing includes High-cut, Low-cut, 8 PEQ, Noise gate, Gain, Mute, Phase, Delay, Link and
so on
• Output processing includes crossover, 9 PEQ, Gain, Mute, Compressor/ Limiter, Phase, Delay, Link
and so on.
• Adjustable PEQ frequency, Gain and bandwidth; we can choose style: PEAK, H-SHELF, L-SHELF,
Low cut, High cut
• Every input and output can do matrix assign flexibly, and all the input and output channel name can be
changed.
• The style of all High-cut ,Low-cut filter and Distributor unit: Butterworth, Linkwitz-Riley, Bessel; slope
is from -6dB/Oct to -48dB/Oct.
• Adjustable compressor/limiter threshold, ratio, attached time and release time.
• All delay module's delay time can reach over 680ms.
• Pre settings can copy for every single channel, every channel can do link adjust.
• Inside single generator(pink, white noise and 20-20K sine wave, amplitude adjustable).

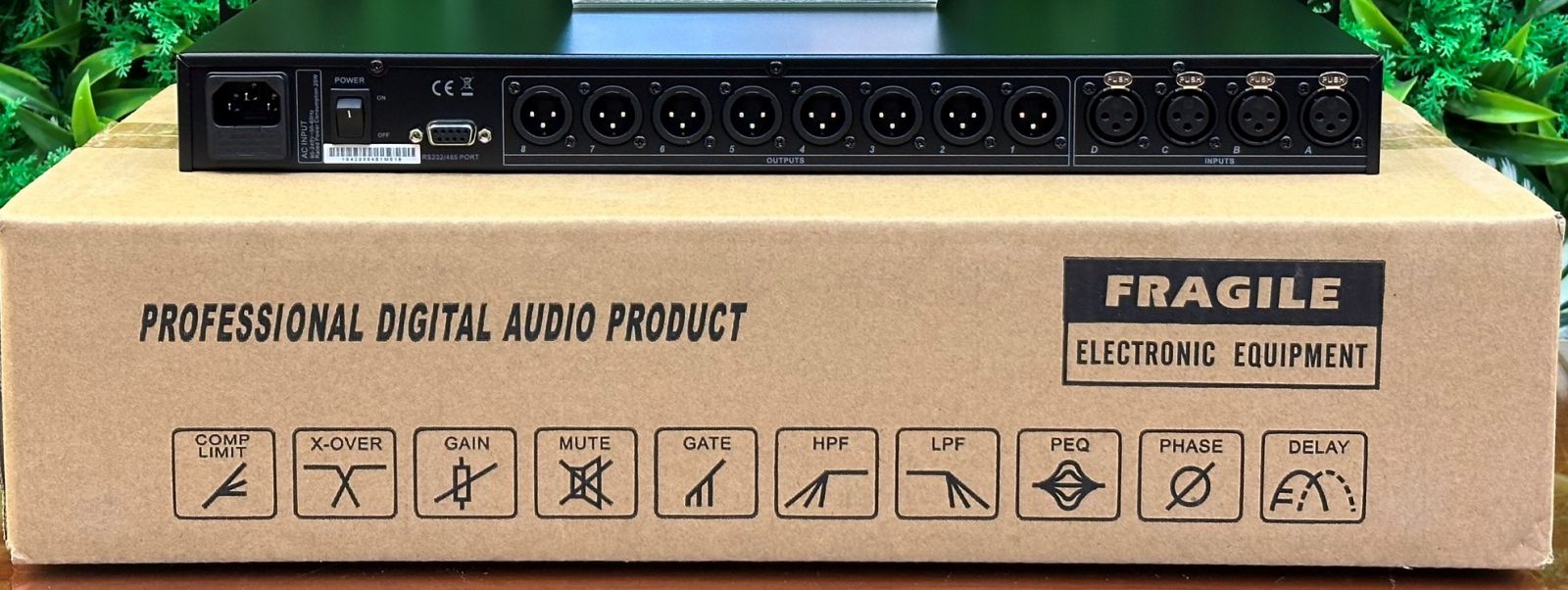

• Front panel has level indicator for input/output, USB pot, RS232, 485 control at rear panel. One-key
online made the operation more convenient.
• 30 user preset, device parameter and single preset file can save and recall separately. Maximal 250
units can be link together via ID settings. Password protection function for high level applications
|
Input |
4 |
|
Output |
8 |
|
Height in mm |
44 mm |
|
Width in mm |
482 mm |
|
Depth in mm |
205 mm |
|
Net Weight in kg |
2.63 kg |
|
Gross Weight in kg |
3.5 kg |
|
Specification |
20 Hz~20k Hz.+ |
|
Frequency response |
-0.3 dBu |
|
Dynamic range |
>110 dBu |
|
Distortion |
<0.01% at 1k Hz(0 dBu)/ >70 dBu 20 Hz-20k Hz |
|
Crosstalk |
>75 dBu 1k Hz |
|
CMRR |
Balanced XLR connection |
|
Input style |
+15 dBu/8k Ω |
|
Max.input level/Impedance |
Balanced XLR connection |
|
Output style |
+15 dBu/‑50 Ω |
|
Max.output level/Impedance |
24 bit sigma-delta A/D、D/A conversion |
|
Digital processing part |
32 bit Dsp.48k Hz sampling rate |
|
Display |
LCD shows current parameters and all settings |
|
Power supply |
AC~95 V-250 V 50/60 Hz |
